Evaluation Board User Guide
Connect and plug in the SDP-H1 board power adapter.
15.
Connect the SDP-H1 board to the host computer with the USB cable.
16.
Turn on the supplies and apply the SYNC clock (3 Vpp, 20 kHz square wave signal centered at 1.5 V) through SYNC_01
17.
test point or SYNC_IN SMB connector using an external function generation. Make sure your function generator is set to
High Z.
Run the ACE application. The AD8460 Board plugin for P6-connected board or the AD8460 FMC Eval Board plugin for P-
18.
7 connected board appears in the attached hardware section of the Start tab. Refer to item 1 in the Known Issues section
if the board does not appear under the attached hardware section.
analog.com

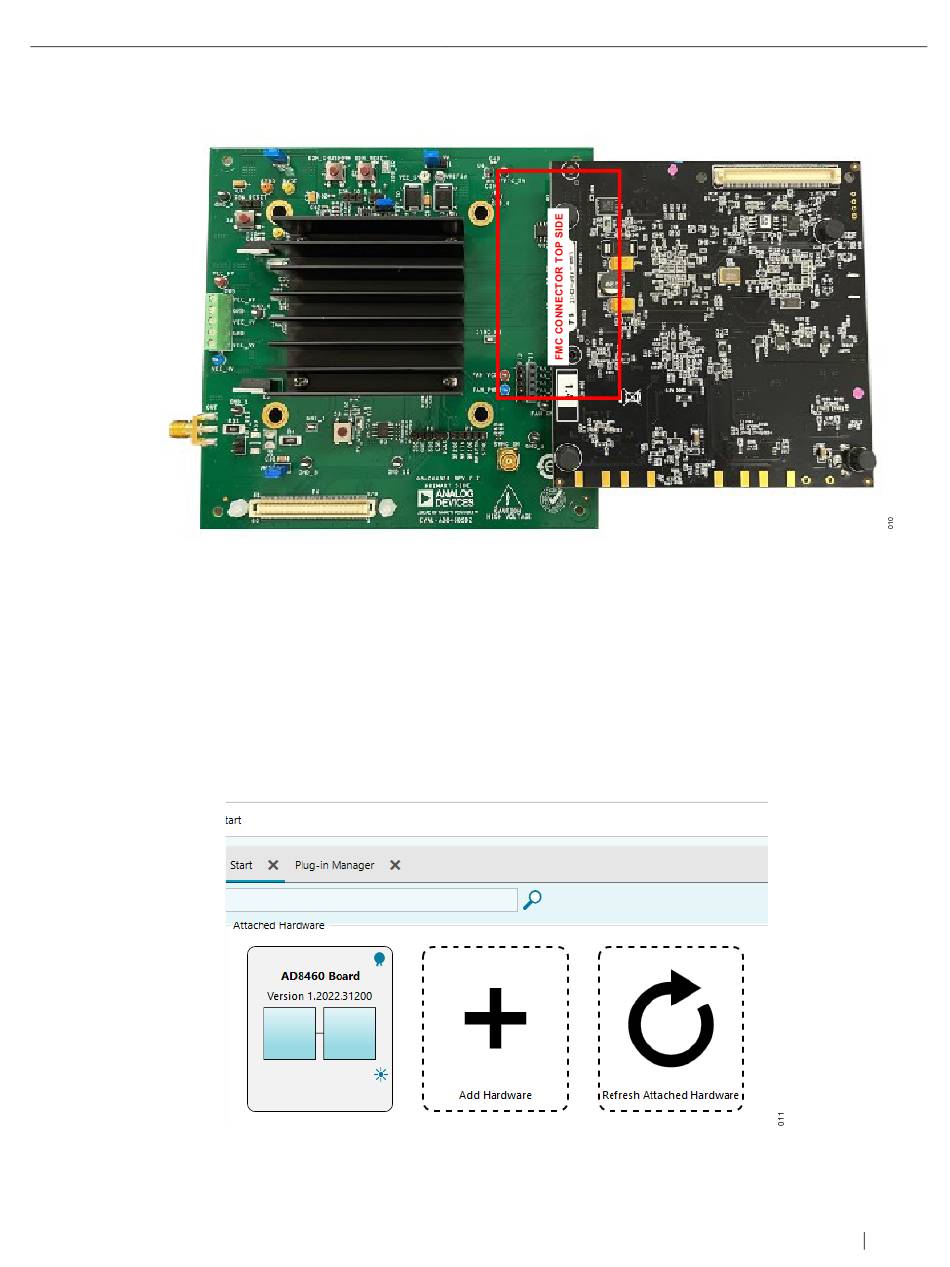

Figure 12. AD8460 and SDP Board Connected to P7 on the Top
Figure 13. AD8460 Plugin Start Tab for SDP Connected Board
AD8460
Rev.0 8 of 31
