7.5.5 DynaFlex II Go Bluetooth LE Host Connected

When the device establishes a connection to the host via BLE and is prepared for secure communication,
all three LEDs (LED 1, 2, 3) will illuminate steadily.

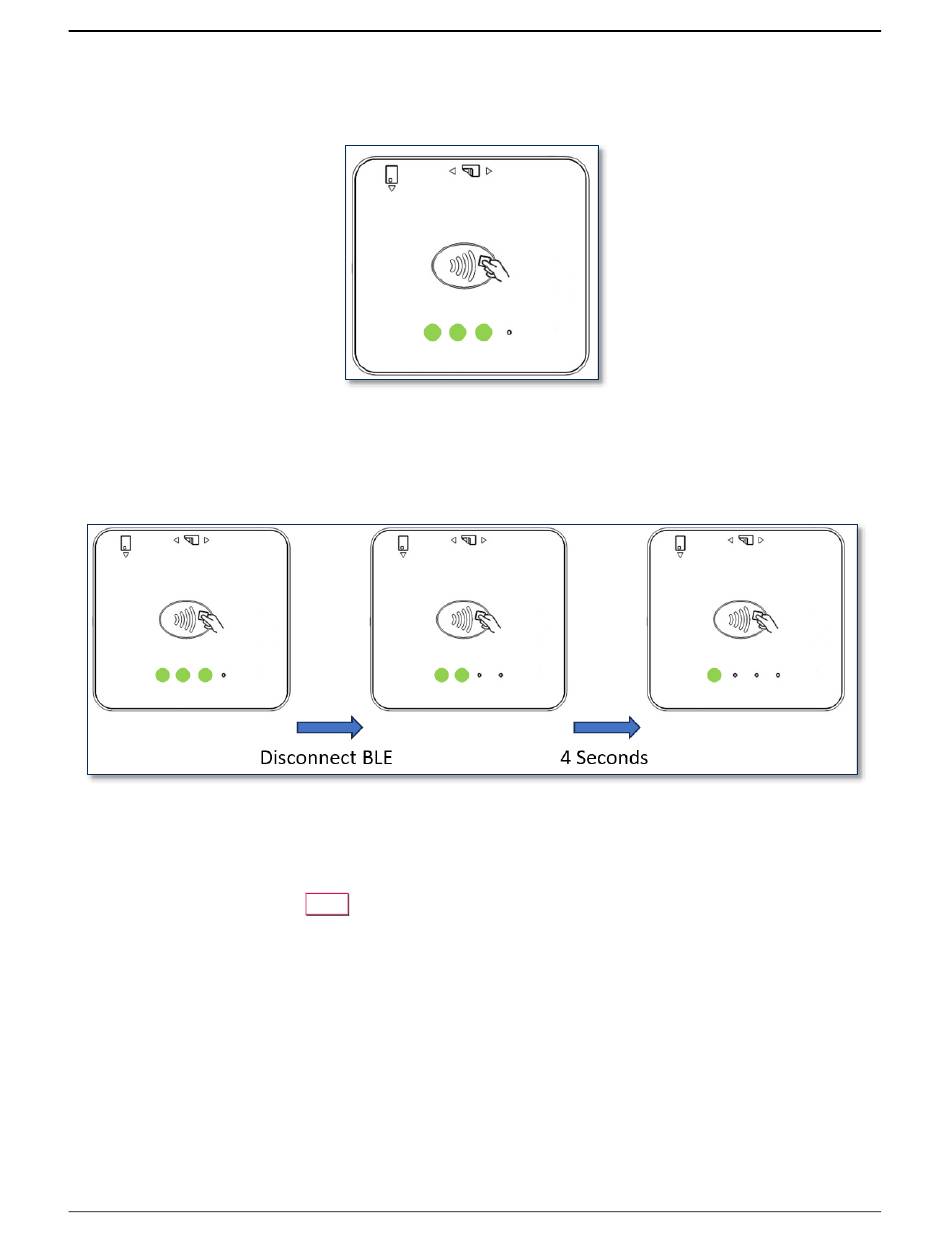

Figure 7-13 - BLE Connected to Host

7.5.6 DynaFlex II Go Bluetooth LE Host Disconnect

When the device is disconnected from the host Bluetooth LE connection, LED 3 will power off first and
after 4 seconds, LED 2 will power off, LED 1 will remain powered on as the device returns to Ready
State.
Figure 7-14 - Bluetooth LE Disconnect LED Sequence
7.6

LED Behavior: Successful Transactions

7.6.1 BCR Payment Transaction Successful (Connected via USB)

When the operator presses the button on the host device, LED 1,2, and the BCR status light will be
Start
illuminated see Figure 7-15. When a barcode is detected, only LED 1 will remain illuminated, the BCR
status LED will be off, and a long beep will sound see Figure 7-16.
