Magtek DynaFlex II Go Quick Installation Manual

Overview
DynaFlex II Go and DynaFlex II Go BCR deliver the next generation
of mobile payment solutions. Both models offer are PCI PTS 6.x and
have an integrated secure card reader authenticator for magnetic stripe
cards, EMV chip cards (contact and contactless), and NFC enabled
mobile wallets including Apple® Pay, Samsung™ Pay, Google Pay™
with support for Google SmartTap and Apple VAS. Ideal for cafés,
restaurants, boutiques, airlines, retail banks, and other developers
looking to build a secure payment solution that accepts swipe, tap, and
dip technology. DynaFlex II Go BCR additionally has an integrated
barcode reader.
Major Components

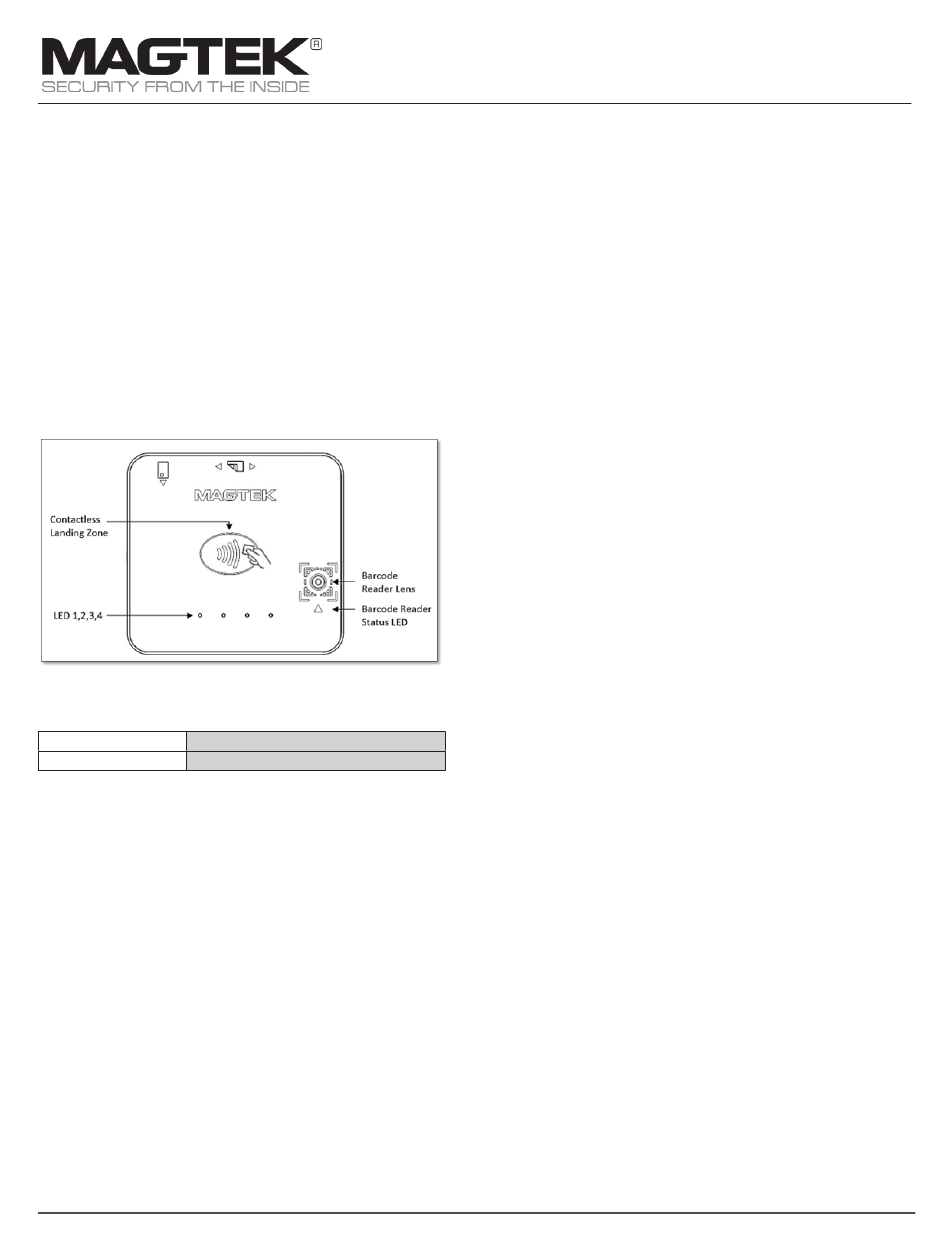

DynaFlex II Go Major Components
Top Face
Environmental Notice
Storage temperature -4°F to 113°F (-20°C to 45°C)
Operating temperature 32°F to 95°F (0°C to 35°C)
Mounting / Stability
DynaFlex II Go products are designed to provide flexible mounting options.
The device can be mounted to the host via external clip or embedded
lanyard. When designing an enclosure or mounting bracket, make sure
there is adequate clearance for cardholders to tap or users to present
a bar code. Proximity to metal can reduce the device's reading range.
DynaFlex II Go offers an OtterBox uniVERSE clip adapter and a countertop
stand. See installation and operation manual on www.magtek.com (PN
D998200595) for complete details.
Connection
DynaFlex II Go is available with USB or USB and Bluetooth LE connection.
Check you model number for connection configuration.
How to Connect to a Host Computer via USB-C
For best results, use the cable that is included with the device. Connect the
cable to the device. Connect the other end to the HOST USB port. Device
will automatically power on. Windows will start an installation of the driver
on initial connection. Windows will report DEVICE IS READY and device
shows in Windows Device Manager under HUMAN INTERFACE DEVICES
as two devices HID-COMPLIANT VENDOR-DEFINED (VID 0801, PID
2024) and USB INPUT DEVICES.
Quick Installation Guide
Setup and Installation
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 562-546-6800 | f 562-546-6301 | www.magtek.com
Secure Card Reader Authenticator
How to Connect to iOS Host via Bluetooth LE
See D998200386 MagTek Universal SDK on www.magtek.com.
How to Connect to Android Host via Bluetooth LE
Disconnect any active connections to the device. Install Android HOST
software. Press and hold the POWER BUTTON for 4 beeps until LED 4
starts flashing indicating BLE pairing is in process. LED flashes once per
second for up to 3 minutes. On the Android HOST, launch SETTINGS
>BLUETOOTH> SEARCH FOR DEVICES > locate the 7-digit serial
number on the device label (DF II GO_xxxxxxx). Select device.
When HOST shows BLUETOOTH PAIRING REQUEST and asks
for configuration key, enter [000000]. The device appears in PAIRED
DEVICES. Change the default passkey.
To UNPAIR, locate the device in BLUETOOTH configuration page on
HOST, press the settings (gear) icon, press FORGET.
How to Connect to Windows 10 Host via Bluetooth LE
Ensure HOST Bluetooth LE is turned on and working. Disconnect any
other connections to the device. On the HOST, install and configure
the software. Ensure HOST software is configured to look for the
device. The device transmits in GATT format. In START on HOST
type BLUETOOTH and select BLUETOOTH AND OTHER DEVICE
SETTINGS. Locate the 7-digit serial number on device label. Press and
hold the POWER BUTTON on device for 4 beeps until LED 4 starts
flashing indicating Bluetooth pairing is in process. LED flashes once per
second for up to 3 minutes. Press the ADD BLUETOOTH OR OTHER
DEVICE button and launch ADD A DEVICE window. Under CHOOSE
THE KIND OF DEVICE YOU WANT TO ADD select BLUETOOTH.
Locate the device called DF II GO-xxxxxxx. Enter configured
passkey (999999) press the CONNECT button. After a short period
CONNECTED appears. Press DONE. Change the default passkey.
To UNPAIR, select the device in BLUETOOTH AND OTHER DEVICE
SETTINGS window and press the REMOVE DEVICE button.
Power
DynaFlex II Go receives power from the USB-C port. The battery must
be periodically recharged by connecting the device to a USB port or
stand-alone USB charger. The device requires a USB power supply that
can provide at least 500mA @ 5V.
•
Powered Off Mode is the shipping and storage mode of the
device. No external power is applied to the device through the
USB cable or from the internal rechargeable battery.
•
Active Mode is the device's normal "awake" state when it is in use.
In this mode, the device LED indicators are powered on, and the
device is ready to receive commands from the host.
•
To set the device from Active mode to Powered Off mode remove
power press and hold the power button for two beeps.
LEDs
DynaFlex II Go have 4 LEDs that provide response to the user for
Power, Connection, Device Status, and Card Status. The Installation
and Operation Manual has a more complete list of light signals.
DynaFlex II Go
