7 - Introduction to User Interface

7 Introduction to User Interface
This section contains information regarding DynaFlex II Go's LEDs, beeper, and BCR status LED. It is
important to note that DynaFlex II Go devices are equipped with a rechargeable battery. If there is no
power supply to the device through the USB cable or internal rechargeable battery, all LEDs, along with
the BCR status LED, will not illuminate. When this occurs, the user interface will resemble the device as
Figure 7-1
it appears in .
As mentioned in section 1.1 Key Features and Components, DynaFlex II Go models equipped with a
barcode reader (BCR) have a similar physical appearance as models without a BCR, as shown in Figure
7-1. BCR models are equipped with a camera and a QR code located on the front side of the device.
•
DynaFlex II Go devices have a user interface composed of three elements: a visual indicator
consisting of four LEDs, a beeper that produces audible alerts, and a power button see Figure 6-1
- Power Button.
•
DynaFlex II Go BCR devices have a user interface composed of four elements: a visual indicator
consisting of four LEDs, a barcode reader status LED, a beeper that produces audible alerts, and a
power button see Figure 6-1 - Power Button.
•
DynaFlex II Go devices do not feature input components such as touch screens.
7.1

Component Details

1. LED Ordering
The arrangement of the four LED indicators on DynaFlex II Go devices is illustrated in Figure 7-2. The
LEDs are labeled LEDs 1 to 4 and are ordered from left to right on the device.
DynaFlex II Go| EMV Contactless/NFC Card Reader | Installation and Operation Manual

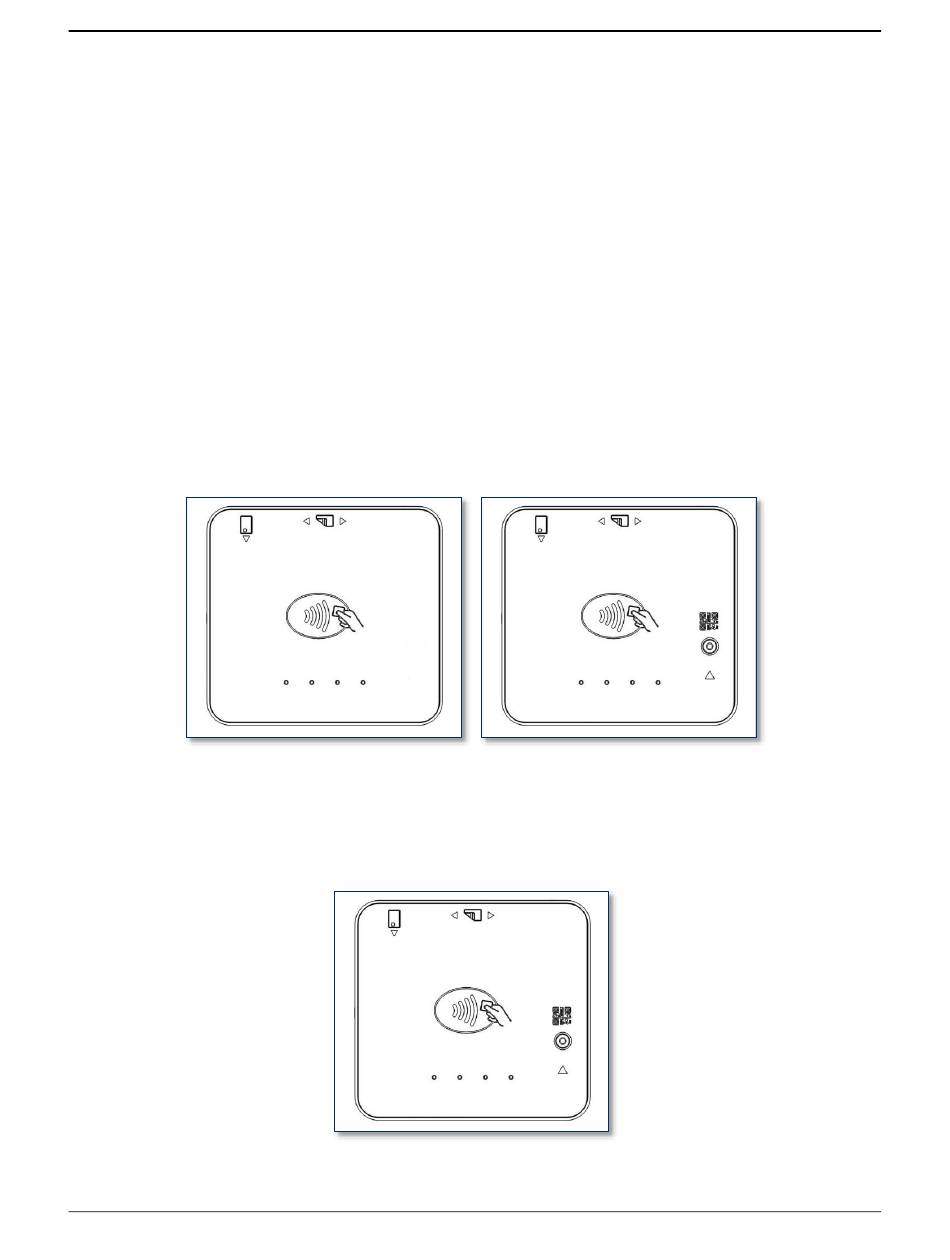

Figure 7-1 – DynaFlex II Go and DynaFlex II Go BCR
1
Figure 7-2 - LED Ordering
Page 22 of 55 (D998200595-100)
2 3 4
