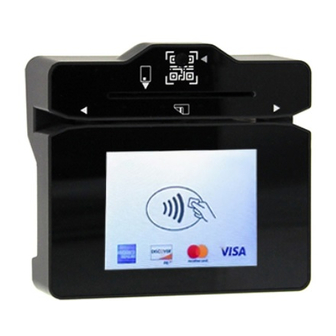

Magtek DynaFlex II PED Quick Installation Manual

Overview
DynaFlex II PED products are ready to launch your payment environment to
the next level. All DynaFlex II PED products offer a color, touchscreen display
for manual entry, digital signature, and PIN for POS and banking, integrated
secure card reader authenticator for magnetic stripe cards, EMV Contact
Chip and EMV Contactless reader, and are NFC enabled for mobile wallets
including Samsung Pay SM , Google Pay
BCR additionally offers a barcode reader. BCR models additionally offer
barcode reading for 1D/2D barcodes and QR codes.

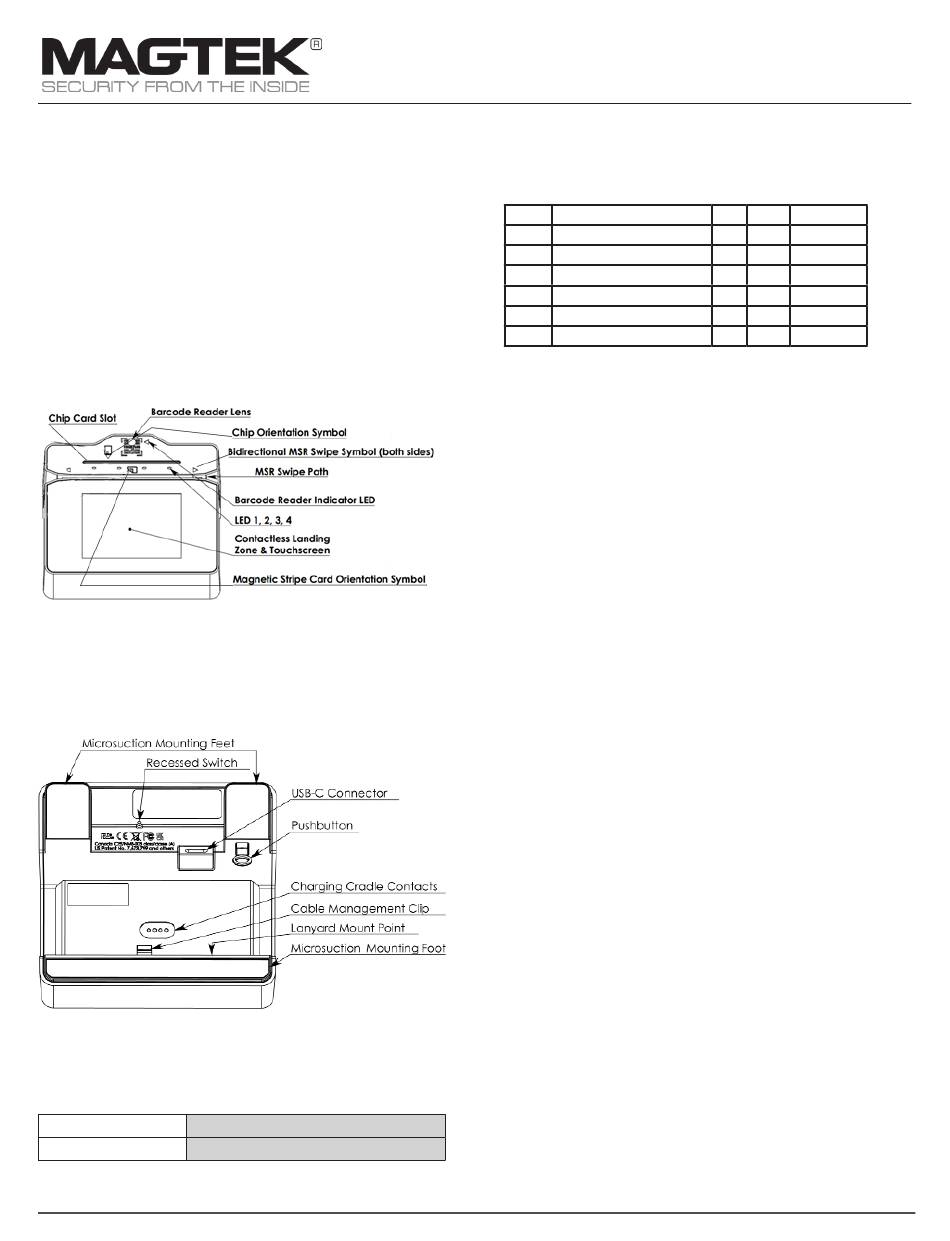

Major Components
DynaFlex II PED Major Components
Top Face
DynaFlex II PED Major Components
Environmental Notice:
Storage tempertature
14° to 140°F (-10°C to 60°C)
Operating temperature
32°F to 113°F (0°C to 45°C)
Quick Installation Guide
Setup and Installation
TM , and Apple Pay ® . DynaFlex II PED
Underside
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 562-546-6800 | f 562-546-6301 | www.magtek.com
DynaFlex II PED Family
Secure Card Reader and PIN
Models
PN Description
21078309 DynaFlex II PED, PCI, Black
21078311 DynaFlex II PED, PCI, Black
21078321 DynaFlex II PED Kiosk, PCI, Black
21078332 DynaFlex II PED BCR, PCI, Black
21078333 DynaFlex II PED BCR, PCI, Black
21078334 DynaFlex II PED Kiosk BCR, PCI, Black
Mounting / Stability
DynaFlex II PED products are used in countertop (traditional brick and
mortar), mounted (to a touchscreen, holster, or other solution), or handheld
solutions (brought to the table, with wireless models only). Each device has
three (3) non-slip grip feet for better stability for countertop solutions. Kiosk
models have a flat mounting back.
How to Connect to USB Host
Devices connect to a host via the USB-C plug located on the bottom of the
device. For best results, use the cable that is included with the device, it includes
shielding at both ends of the cable to reduce emissions and interference.
Compatible with USB Hosts: Windows 10, Android 4.4.2 and above.
How to Connect to Host via WLAN
Compatible with WLAN (802.11 wireless) Hosts: Windows 10, Android 4.4.2+,
and iOS/iPadOS. WLAN is 100m in a typical environment. See Installation
and operation manual for details: https://www.magtek.com/content/
documentationfiles/d998200554.pdf
Commands
Devices are designed to connect to a host which sends commands and data
back and forth. In any solution, DynaFlex II Products must be connected
to a host with software installed that knows how to communicate with the
device and is capable of processing transactions. Follow the installation
and configuration instructions provided by the vendor of the host or the host
software for use. For development of applications, see the SDKs and APIs
on www.magtek.com under support.
Power
•
To power on the device, connect it to a USB host. Upon connecting to
a Windows 10 host, the display and LEDs turn on briefly, then turn
off when Windows suspends the device's USB connection to conserve
power. To turn the display and LEDs back on, connect to the device
using software on the host (for example, by using the Open Device
button in 1000007406 DynaFlex, DynaProx Test Utility, available from
MagTek), which signals Windows to resume the USB connection and
provide full power to the device.
•
To power off the device, disconnect it from the USB host.
Color Touchscreen
Color touchscreen is used to display a logo or custom messaging, offer
manual entry of data, accept digital signature, or PIN ID and depicts on-
screen instructions for insert, tap, or swipe operations. The screen is inset
and measures 2.27in. (57.60mm) X 1.70 in. (43.20mm), 320x240 RGB.
BCR Style Connection
no Counter USB
no Counter WLAN
no Kiosk USB
BCR Counter WLAN
BCR Counter USB
BCR Kiosk USB
