7 - Introduction to User Interface
7.3
USB Enumeration
When DynaFlex II Go is connected via USB in an idle state, it can be detected by a host through the USB
HID port see Figure 7-6. After the host has connected to DynaFlex II Go, LED 1 and 2 will stay on. The
device is in Ready State.

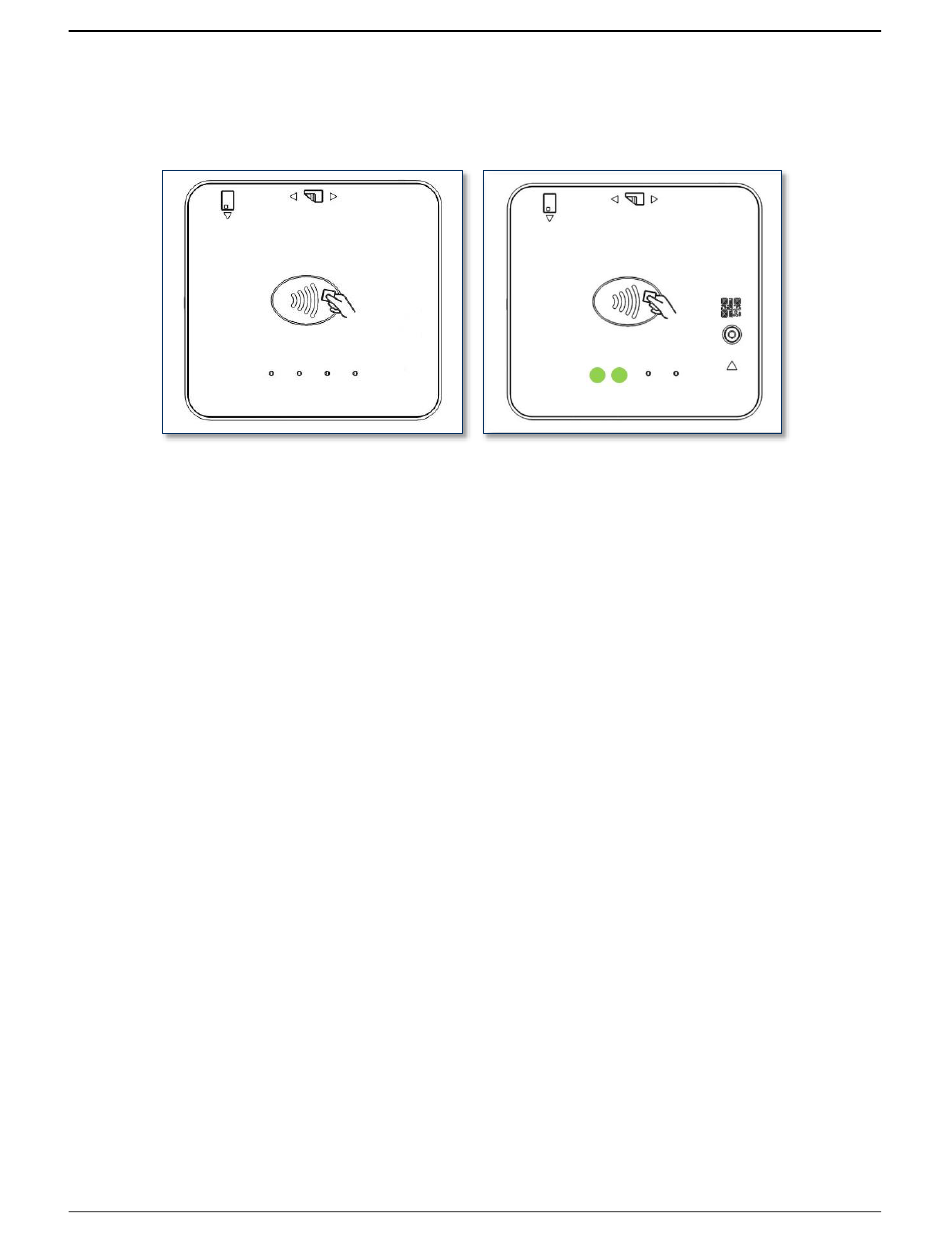

Figure 7-6 - LED Status (Idle State) Before Host Detection and LED Status (USB Ready State) After
Connecting to Host
DynaFlex II Go| EMV Contactless/NFC Card Reader | Installation and Operation Manual
Page 24 of 55 (D998200595-100)
