Magtek DynaFlex Series Acceptance Inspection Manual

Overview
DynaFlex, DynaFlex Pro (touchscreen model), DynaFlex BCR (barcode
reader), and DynaFlex Pro BCR are secure card reader authenticators.
DynaFlex Products delivers magstripe, EMV contact and EMV/NFC
contactless reading capability. Models are available to suit most
applications, offer various mounting and stability features, and deliver a
smart solution in a small form factor.
Back/Top
The back of the device is smooth, with no extraneous wires or elements.
Front Face
Barcode Reader
BCR (barcode reading) devices have a camera
lens that is surounded by a barcode icon. In
barcode reader models, a barcode reader is
along the top of the reader.
Chip Card Insertion Slot
The card slot for the EMV Contact Chip reader
is a smooth, unobstructed path. Other than the
contact points that read the chip there are no
electronics, mechanics, or wires in the path.
LEDs
There are four LED lights between the chip card
insertion slot and the magnetic stripe swipe
path. These provide signals to the user. See
installation and operation manual for complete
LED signaling.
Swipe Path
The swipe path is smooth. The only moving part
is the spring-mounted read head that depresses
into the device as the card's magnetic stripe
makes contact with the read head. There are no
mechanics, electronics, or wires in the path.
Contactless Landing Zone (Pro)
There is an all-in-one screen: touchscreen,
contactless landing zone, and LCD display.
The display is back-lit. Look for any signs of
tampering or a false screen overlay. The screen
is inset and measures 2.27in. (57.60mm) X 1.70
in. (43.20mm). The contactless landing zone
is hidden behind the screen. User's fingertips
capture signatures instead of a stylus.
Contactless Landing Zone (Standard)
The contactless landing zone is a smooth
front cover with no moving parts and only the
contactless symbol in the landing zone, the
indicator mark orientation may vary.

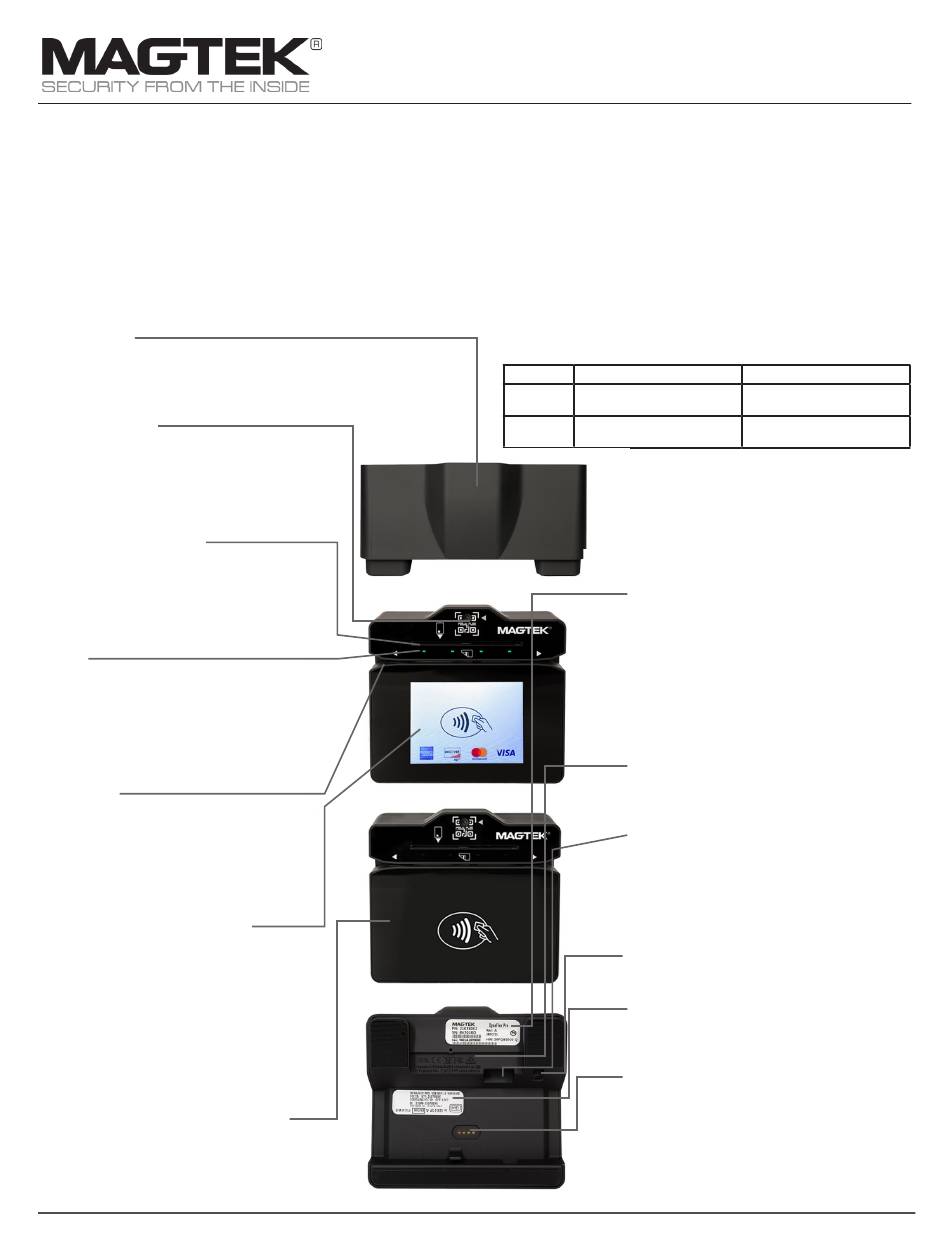

Device Inspection Guide
Overview and Form Factor
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 562-415-6800 | f 562-546-6301 | www.magtek.com
DynaFlex (Gen I) Family
Secure Card Reader Authenticator
Form Factor
Check the overall form factor for signs of attempted entry. Directional
icons may be printed on your device. DynaFlex products are made from
molded rubberized black plastic with matching black lens on the face.
There are no additional electronics or wires. Any breaks in the plastic,
scuffs, or damage could be signs of physical tampering and should be
reported. Look for any added components, size, or weight.
DynaFlex
Dimensions 4.0 x 3.5 x 1.9 in.
(102 x 89.0x 48 mm)
Weight USB: 7.1oz/202g
Bluetooth: 8.7oz./247g
Bottom
Carefully inspect the form factor. Ensure there are
no additional electronics, wires or forms added
to the device. The underside and backside of
DynaFlex and DynaFlex Pro are the same.
Product Label
The product label is located on the underside of
the device. The Serial Number, Rev, Date, Part
number (PN), MAC ID (MAC) and Hardware PN
(HW) are listed as appropriate. Ensure the serial
number listed on the back of the device matches
the serial number on the display of the device
during boot-up for Pro devices; compare the
hardware ID to the PCI website confirm validity.
Certificate Logos
Certification logos and patent information are
imprinted in the plastic form factor.
USB-C Cable
The device uses a USB-C cable with ferrite
sleeve at each end to power and/or charge.
Ensure there are no extraneous cables. USB-C
connection is on the underside of the device.
Ensure the cable is connected directly to the host.
Pushbutton
Tactile switch/button.
FCC/IC Label
The FCC/IC label lists the product model name,
FCC ID and IC numbers.
Charging
There are four (4) charging contacts on the
underside of the device.
3 Rubberized Feet
There are 3 rubberized feet on the underside of
the device, these lay flat and are form fitted.
DynaFlex Pro
4.1 x 3.5 x 1.9 in.
(103.3x90.0x48.3mm)
USB: 7.4oz/210g
WLAN: 8.9 oz/252g
