Magtek DynaFlex II SCR Kiosk Device Manual

Overview
DynaFlex II SCR Kiosk Products are secure card reader authenticators
that deliver magstripe, EMV Contact Chip, EMV Contactless, and NFC
contactless reading capability wiht a flat mounting backing. DynaFlex II
SCR Kiosk BCR additionally offers barcode reading.

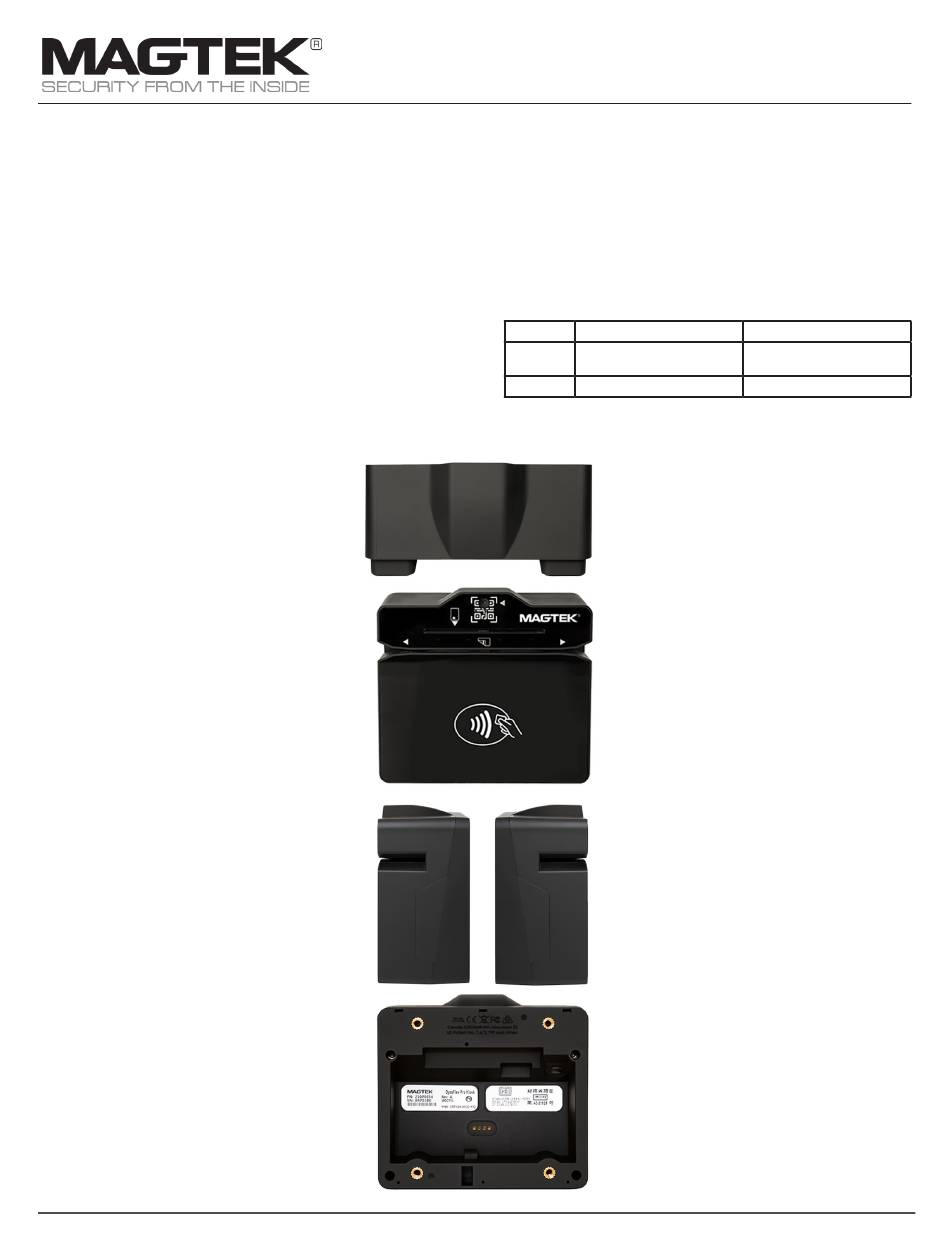

Top
The top of the device is smooth, with no extraneous wires or elements.
BCR models are raised to accommodate the camera.
Front Face
BCR Devices Only - Barcode Reader
BCR (barcode reading) devices have a camera lens that is surounded
by a barcode icon. In barcode reader models, a
barcode reader is along the top of the reader.
Chip Card Insertion Slot
The card slot for the EMV Contact Chip reader
is a smooth, unobstructed path. Other than the
contact points that read the chip there are no
electronics, mechanics, or wires in the path.
LEDs
There are four LED lights between the chip card
insertion slot and the magnetic stripe swipe
path. These provide signals to the user. See
installation and operation manual for complete
LED signaling.
Swipe Path
The swipe path is smooth. The only moving part
is the spring-mounted read head that depresses
into the device as the card's magnetic stripe
makes contact with the read head. There are no
mechanics, electronics, or wires in the path.
Contactless Landing Zone
Contactless landing zone is a smooth front cover
with no moving parts and only the contactless
symbol in the landing zone. The contactless
indicator mark's orientation may vary.
Sides
The right and left side are smooth with a clear
demarcation for the fixed kiosk mount.
Device Inspection Guide
Overview and Form Factor
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 562-415-6800 | f 562-546-6301 | www.magtek.com
DynaFlex II SCR Kiosk
Secure Card Reader Authenticator
Form Factor
Check the overall form factor for signs of attempted entry. Directional
icons may be printed on your device. DynaFlex II SCR Kiosk products
are made from molded rubberized black plastic with matching black lens
on the face. There are no additional electronics or wires. Any breaks in
the plastic, scuffs, or damage could be signs of physical tampering and
should be reported. Look for any added components, size, or weight.
DynaFlex II SCR Kiosk
Dimensions 4.1 x 3.5 x 1.9 in.
(103.3 x 90.0 x 48.3 mm)
Weight 9.5 oz. (268 g)
Bottom
Carefully inspect the form factor. Ensure there
are no additional electronics, wires or forms
added to the device.
Certificate Logos
Certification logos and patent information are
imprinted in the plastic form factor.
USB-C Cable
The device uses a USB-C cable with ferrite
sleeve at each end to power and/or charge.
Ensure there are no extraneous cables and that
the cable is connected directly to the host.
Pushbutton
Tactile switch/button.
Product Label
The product label is located on the underside of
the device. The Serial Number, Rev, Date, Part
number (PN), MAC ID (MAC) and Hardware PN
(HW) are listed as appropriate. Ensure the serial
number listed on the back of the device matches
the serial number on the display of the device
during boot-up for Pro devices; compare the
hardware ID to the PCI website confirm validity.
FCC/IC Label
The FCC/IC label lists the product model name,
FCC ID and IC numbers.
Charging
There are four (4) charging contacts on the
underside of the device.
4 Threaded Mounting Holes
There are 4 threaded mounting holes.
DynaFlex II SCR Kiosk BCR
4.1 x 3.7 x 1.9 in
(103.3 x 95.1 x 48.3 mm)
9.62 oz. (271.5 g)
