Magtek DynaFlex II SCR Device Manual

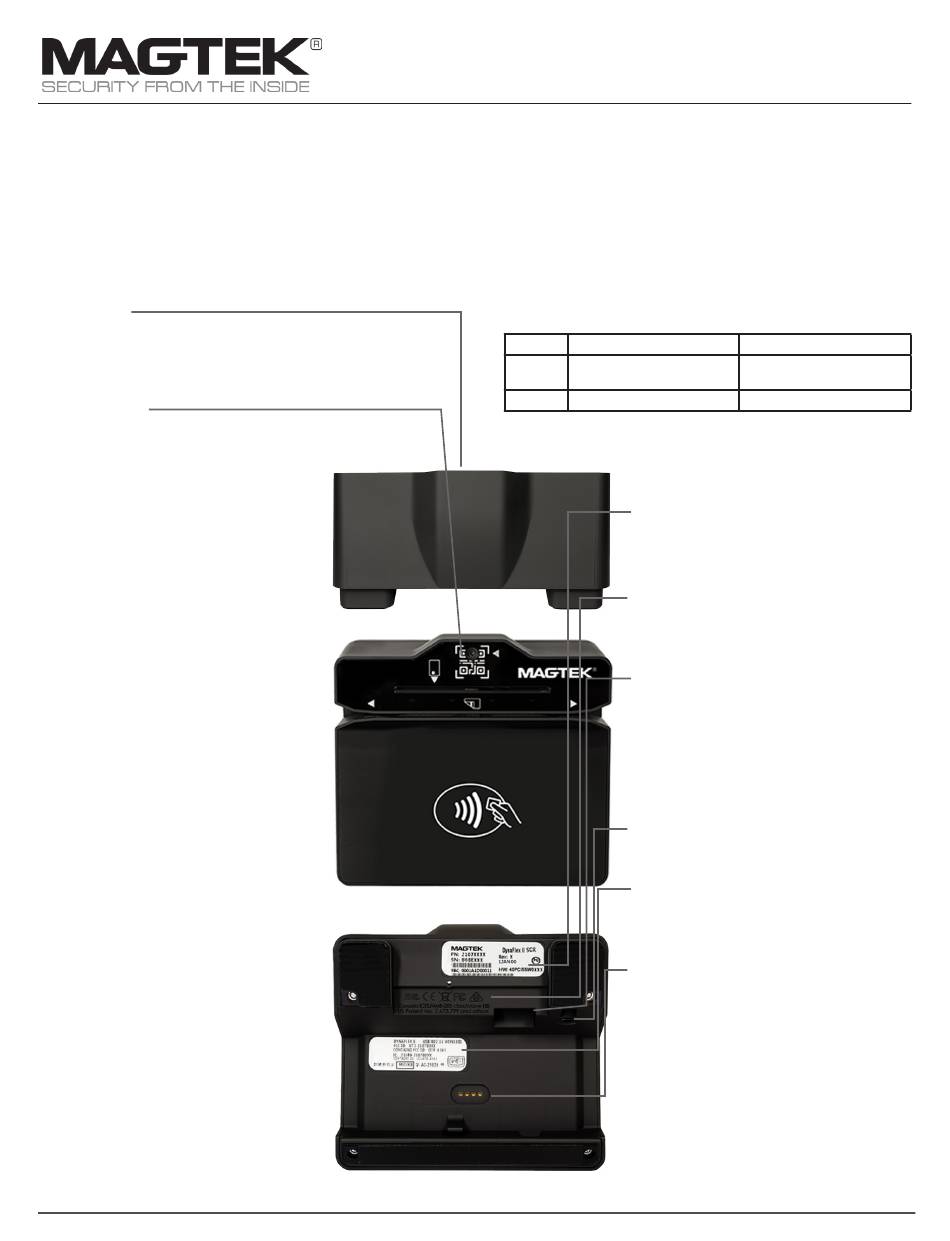

Overview
DynaFlex II products are secure card reader authenticators that deliver
magstripe, EMV Contact Chip, EMV Contactless, NFC contactless, and
barcode reading capability in select models. DynaFlex II provides a large
contactless landing zone for a simplified user experience.
Back/Top
The back of the device is smooth, with no extraneous wires or elements.
Front Face
Barcode Reader
BCR (barcode reading) devices have a camera lens that is surounded
by a barcode icon. In barcode reader models, a barcode reader is along
the top of the reader.
Chip Card Insertion Slot
The card slot for the EMV Contact Chip Reader
is a smooth, unobstructed path. Other than the
contact points that read the chip there are no
electronics, mechanics, or wires in the path.
LEDs
There are four LED lights between the chip card
insertion slot and the magnetic stripe swipe
path. These provide signals to the user. See
installation and operation manual for complete
LED signaling.
Swipe Path
The swipe path is smooth. The only moving part
is the spring-mounted read head that depresses
into the device as the card's magnetic stripe
makes contact with the read head. There are no
mechanics, electronics, or wires in the swipe path.
Contactless Landing Zone
Contactless landing zone is a smooth front
cover with no moving parts and only the
contactless symbol in the landing zone. The
contactless indicator mark's orientation may vary.
Sides
The left and right sides are smooth plastic.
Device Inspection Guide
Overview and Form Factor
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 562-415-6800 | f 562-546-6301 | www.magtek.com
Secure Card Reader Authenticator
Form Factor
Check the overall form factor for signs of attempted entry. DynaFlex II
SCR products are made from molded plastic with a rubberized coating
with a matching black lens on the face. Look for any added components,
size, or weight. Directional icons may be printed on your device.
Check for signs of cutting, tapping, and bending. There are no additional
electronics or wires. Any breaks in the plastic, scuffs, or damage could
be signs of physical tampering and should be reported.
DynaFlex II SCR
Dimensions 4.1 x 3.5 x 1.9 in.
(103.3 x 95.1 x 48.5 mm)
Weight 8.4 oz (238 g)
Bottom
Product Label
The product label is located on the underside of
the device. The Serial Number, Rev, Date, Part
number (PN), MAC ID (MAC) and Hardware PN
(HW) are listed as appropriate.
Certificate Logos
Certification logos and patent information are
imprinted in the plastic form factor.
USB-C Cable
The device uses a USB-C cable with ferrite
sleeve at each end to power and charge.
Ensure there are no extraneous cables. USB-C
connection is on the underside of the device.
Ensure the cable is connected directly to the
correct host USB port.
Pushbutton
There is a tactile switch/button.
FCC/IC Label
The FCC/IC label lists the product model name,
FCC ID and IC numbers.
Charging
There are four (4) charging contacts on the
underside of the device.
3 Rubberized Feet
There are 3 rubberized feet on the underside of
the device, these lay flat and are form fitted with
no extraneous cables or edges.
DynaFlex II SCR
DynaFlex II SCR BCR
4.1 x 3.7 x 1.9 in.
(103.3 x 95.1 x 48.5 mm)
9.52 oz. (241.5 g)
