Emerson Rosemount 3410 Series Installation Manual

Emerson Rosemount 3410 Series Installation Manual

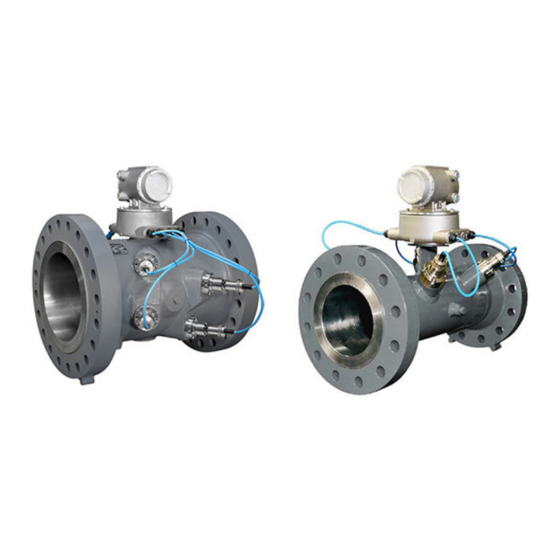

Gas ultrasonic flow meters
Hide thumbs Also See for Rosemount 3410 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

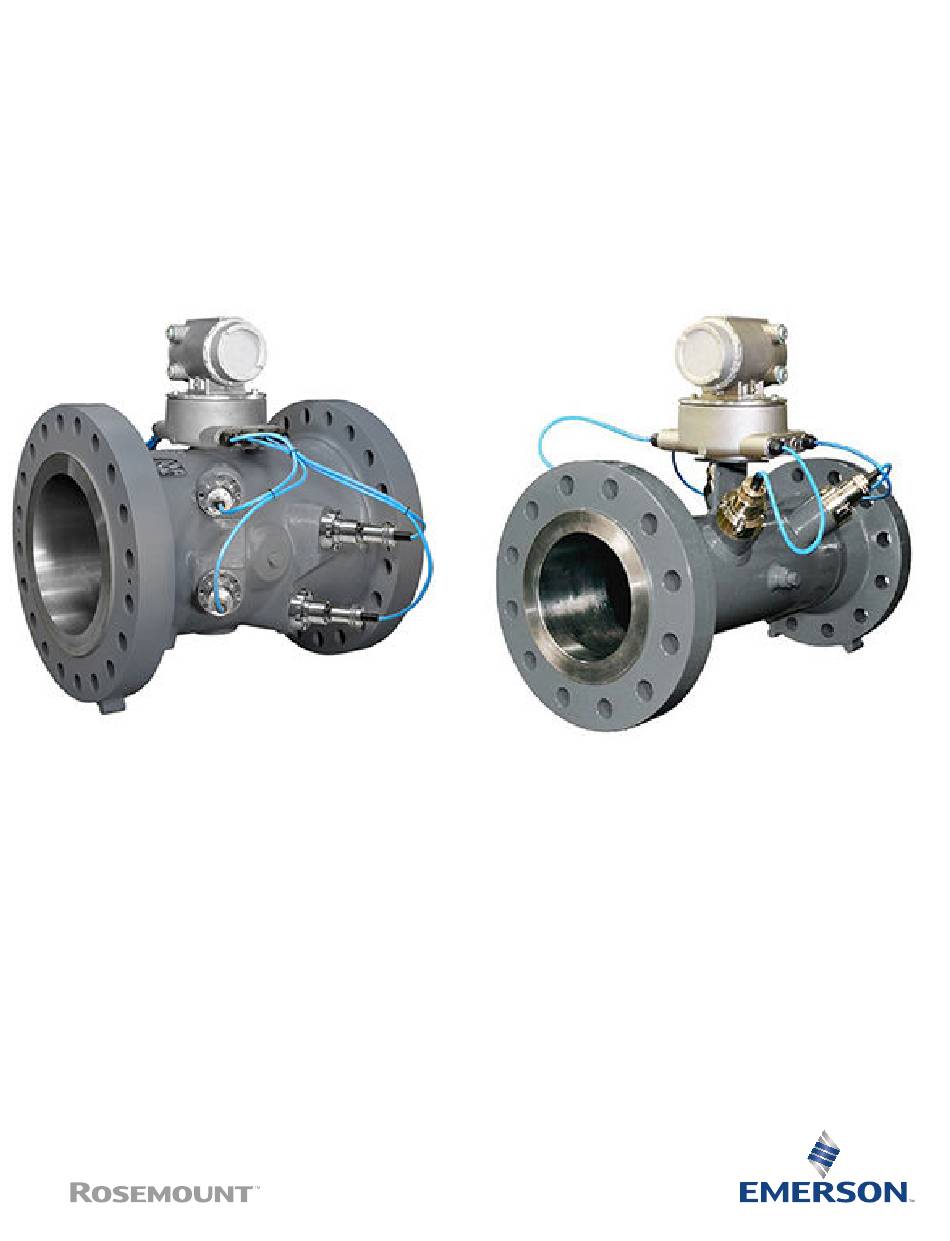

Installation manual
00825-0600-3104, Rev AC
October 2023
Rosemount
™
3410 Series Gas Ultrasonic
Flow Meters
3414, 3412, and 3411

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 3410 Series

Summary of Contents for Emerson Rosemount 3410 Series

  • Page 1 Installation manual 00825-0600-3104, Rev AC October 2023 Rosemount ™ 3410 Series Gas Ultrasonic Flow Meters 3414, 3412, and 3411...
  • Page 2 These procedures ensure legal compliance with government transportation agencies and help provide a safe working environment for Emerson employees. Emerson will not accept your returned equipment if you fail to follow Emerson procedures. Return procedures and forms are available on our website at Emerson.com...

  • Page 3: Table Of Contents

    8 1.5 Design of Rosemount 3410 series meter................. 9 1.6 Meter specifications for 3411, 3412, and 3414..............11 1.7 Pre-installation considerations....................17 1.8 Safety considerations........................18 1.9 Certifications and approvals for the Rosemount 3410 series..........18 1.10 FCC compliance........................19 1.11 References..........................19 Chapter 2  Mechanical installation......................21 2.1 Meter piping, lifting and mounting..................21 2.2 Meter components........................23...
  • Page 4 Contents Installation manual October 2023 00825-0600-3104 B.5 M.I.T License..........................105 B.6 Zlib License..........................105 Gas Ultrasonic Flow Meters...

  • Page 5: Chapter 1 Introduction

    1.1  Typical applications of this product Rosemount 3410 Series Ultrasonic Gas Flow Meters have various configurations that meet a broad range of customer requirements. Each meter comes fully assembled from Emerson. The technology can be applied to custody transfer, allocation measurement, and check metering applications such as: •...

  • Page 6: Acronyms, Abbreviations, And Definitions

    ™ ® • Local display (optional) • Smart meter verification (4-Path and 8-Path meters) For other features and benefits, refer to the Emerson Ultrasonic flow meter product data sheets. 1.3  Acronyms, abbreviations, and definitions Acronym or abbreviation Definition ° Degree (angle) °C...
  • Page 7 Installation manual Introduction 00825-0600-3104 October 2023 Acronym or abbreviation Definition Digital output DHCP Dynamic host configuration protocol Decimeter (10 meters, length unit) Error correction code EEPROM Electrically-erasable, programmable read-only memory Flash Non-volatile, programmable read-only memory FODO Output that is user configurable as either a frequency or digital output HART Communication Protocol...

  • Page 8: Meterlink ™ Software

    MeterLink software has robust features for setting communications parameters, configuring your meter, collecting logs and reports and monitoring the meter health and alarm statuses. MeterLink may be downloaded at no charge from: Emerson.com/meterlink. Figure 1-1: MeterLink download and registration Refer to MeterLink Software for Gas and Liquid Ultrasonic Meters Quick Start Manual for installation instructions and setup for initial communications.

  • Page 9: Design Of Rosemount 3410 Series Meter

    1.5  Design of Rosemount 3410 series meter Rosemount 3410 Series Gas Ultrasonic Flow Meters are designed to accurately measure products in applications where reliable performance is critical, by measuring the difference in signal transit time with and against the flow across one or more measurement path(s). A signal transmitted in the flow direction travels faster than one transmitted against the flow direction.
  • Page 10 Introduction Installation manual October 2023 00825-0600-3104 Figure 1-3: Rosemount 3412 Gas Ultrasonic Flow Meter design A. Transmitter electronics enclosure (explosion-proof) Optional - Local Display with glass endcap. (See Figure 1-5.) B. Base electronics enclosure (intrinsically safe) C. Meter body with transducer assemblies (T-11, T-12, T-21 and T-22) (intrinsically safe) Rosemount 3411 Gas Ultrasonic Flow meters are single-path (two transducer) Gas Ultrasonic Flow Meter and is referred to as a bounce-path (as the signal is bounced off the meter body) or a centerline path (as it goes through the centerline of the meter body)

  • Page 11: Meter Specifications For 3411, 3412, And 3414

    Installation manual Introduction 00825-0600-3104 October 2023 The Rosemount Gas Ultrasonic Flow Meter design is available with an optional glass endcap and a local display. Figure 1-5: Transmitter electronics enclosure with local display and glass endcap All Rosemount ultrasonic flow meter’s U.L. safety listing is accomplished through the combination of an explosion-proof transmitter electronics enclosure that houses the CPU module, Power Supply board, I.S.
  • Page 12 Introduction Installation manual October 2023 00825-0600-3104  CAUTION Escaping gases or fluids hazard The purchaser of the meter is responsible for the selection of Rosemount components/ seals and materials compatible with the chemical properties of gas flow measurement. Failure to select the suitable meter component/seals may cause escaping gases or liquids, resulting in injury or equipment damage.
  • Page 13 Installation manual Introduction 00825-0600-3104 October 2023 (continued) Table 1-1: Rosemount 3411, 3412 and 3414 meter specifications (part 1) Rosemount 3411, 3412 and 3414 meter specifications Velocity range • 100 ft./s (30 m/s) with over-range) • 125 fps (38 m/s) on some line sizes •...
  • Page 14 Introduction Installation manual October 2023 00825-0600-3104 (continued) Table 1-3: Rosemount 3411, 3412 and 3414 meter specifications (part 2) Meter Power • 10.4 Vdc to 36 Vdc • 11 W power consumption (15 W maximum) Serial cable • Belden #9940 or equivalent (22 gauge) —...
  • Page 15 Installation manual Introduction 00825-0600-3104 October 2023 (continued) Table 1-4: Transducer specifications Transducer type Temperature range Mount and holder type T-200 -50 °C to +125 °C (-58°F to 257 Standard Stalk Assemblies °F) Inconel Stalk Assemblies T-21 transducers use W-01 transformers. T-22 transducers use W-02 transformers. Note The process temperature must not exceed the operating temperature range of the transducers.
  • Page 16 Introduction Installation manual October 2023 00825-0600-3104 (continued) Table 1-5: Rosemount 3411, 3412 and 3414 meter specifications (part 3) Analog Input(s) (2) 4-20 mA • AI-1 Temperature • AI-2 Pressure Note The analog-to-digital conversion accuracy is within ±0.05% of full scale over the operating temperature range.

  • Page 17: Pre-Installation Considerations

    Installation manual Introduction 00825-0600-3104 October 2023 (continued) Table 1-5: Rosemount 3411, 3412 and 3414 meter specifications (part 3) Channel B Phase options: • Lag forward, Lead reverse (Phase B lags Phase A while reporting forward flow, leads Phase A while reporting reverse flow) •...

  • Page 18: Safety Considerations

    Data collection and retention procedures 1.8  Safety considerations The Rosemount 3410 Series Gas Ultrasonic Flow Meter is suitable for use in U.L. Class 1, Division 1, Group C and D hazardous locations. NOTICE An “X” signifies the user should contact Emerson for information on the dimensions of the flameproof joints.

  • Page 19: Fcc Compliance

    • NEPSI • GOSTR Important Please consult Emerson Flow services for Rosemount products for the complete metrology approvals list. 1.10  FCC compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 20 Introduction Installation manual October 2023 00825-0600-3104 2. Measurement of Fuel Gas By Turbine Meters, American Gas Association, Transmission Measurement Committee Report No. 7, Second Revision, April 1996 (also referred to as AGA7) 3. Compressibility Factors of Natural Gas and Other Related Hydrocarbon Gases, American Gas Association, Transmission Measurement Committee Report No.

  • Page 21: Chapter 2 Mechanical Installation

    Installation manual Mechanical installation 00825-0600-3104 October 2023 2  Mechanical installation 2.1  Meter piping, lifting and mounting Refer to the following sections for piping recommendations, lifting with hoist rings and slings, mounting in heated or cooled pipelines and safety warnings and precautions.  WARNING Cutting hazard Sharp edges may be present on the transducer retaining ring.
  • Page 22 Failure to select the suitable meter seals may cause escaping gases or liquids, resulting in injury or equipment damage. Consult your Emerson Flow sales and service representative to ensure you purchase the correct components and seals for your application. Gas Ultrasonic Flow Meters...

  • Page 23: Meter Components

    Installation manual Mechanical installation 00825-0600-3104 October 2023 2.2  Meter components Rosemount 3410 Series Gas Ultrasonic Flow Meters are assembled, configured and tested ™ at the factory. The meter components include the transmitter electronics enclosure, the base electronics enclosure and the meter body with transducer assemblies  WARNING Contents may be under pressure.
  • Page 24 Mechanical installation Installation manual October 2023 00825-0600-3104 Figure 2-1: Rosemount 3414 Flow Meter assembly A. Explosion-proof transmitter enclosure (CPU Module, Power Supply, I.S. Barrier Board B. Intrinsically-safe base enclosure includes Acquisition Module C. Meter - body and transducer assemblies and cables D.
  • Page 25 Installation manual Mechanical installation 00825-0600-3104 October 2023 Figure 2-2: Rosemount 3412 Flow Meter assembly A. Explosion-proof transmitter enclosure (CPU Module, Power Supply, I.S. Barrier Board, Backplane board) - (Optional: Glass endcap for Local Display) B. Intrinsically-safe base enclosure includes Acquisition Module C.
  • Page 26 Mechanical installation Installation manual October 2023 00825-0600-3104 Figure 2-3: Rosemount 3411 Flow Meter assembly A. Explosion-proof transmitter enclosure (CPU Module, Power Supply, I.S. Barrier Board, Backplane board) - (Optional: Glass endcap for Local Display) B. Intrinsically-safe base enclosure includes Acquisition Module C.

  • Page 27: Pipe Recommendations

    Installation manual Mechanical installation 00825-0600-3104 October 2023 2.3  Pipe recommendations  WARNING BURST HAZARD Before pipeline cleaning and maintenance ("pigging operations"), remove straightening vanes or flow conditioners. Failure to do so may cause excessive pressure in the meter system, resulting in serious injury/death or equipment damage. Figure 2-5: 3410 Series Gas Ultrasonic Flow Meter with flow conditioner for uni- directional flow Figure 2-6: 3410 Series Gas Ultrasonic Flow Meter with flow conditioner for bi-...
  • Page 28 Mechanical installation Installation manual October 2023 00825-0600-3104 Flow conditioning is recommended for best measurement results • Honed or un-honed meter tube(s) • Flow direction (unidirectional or bidirectional) • Correct meter size selection - too low may cause poor flow stability (thermal convection or too fast may cause erosion problems and resonance, cracks or failure of probes or thermowells (approximately 0.3 to 30 m/sec or 1 to 100 ft/sec).

  • Page 29: Pre-Installation Inspection

    T = Temperature measurement location NOTICE Refer to the Ultrasonic flow meter product data sheets: (Emerson.com). • Rosemount 3410 Series Ultrasonic Gas Flow Meters should be mounted in horizontal piping with the chord paths horizontal. NOTICE Faulty meter installation Correctly install the equipment.
  • Page 30 Mechanical installation Installation manual October 2023 00825-0600-3104 If any damage is found, contact Emerson Flow services before putting meter into service. Refer to the Emerson.com/global for contact information. 2.4.1  Meter safety for hoist rings and lifting slings A Rosemount Gas Ultrasonic Flow Meter can be safely lifted and maneuvered into and out of a meter run for installation or service by obeying the following instructions.
  • Page 31 Installation manual Mechanical installation 00825-0600-3104 October 2023 Operators SHALL NOT use Eye Bolts (see Figure 2-12) in the flange tapped holes to aid in lifting or maneuvering the meter. Operators SHALL NOT use other Hoist Rings that do not fully seat flush with the counter bore on the top of the meter flanges.
  • Page 32 Do not use any other type of hoist rings with the same screw size or heavy duty hoist rings. The meter tapping and counter bore size are suitable only for the hoist rings specified by Emerson. 5. When installing a hoist ring, ensure the base surface of the hoist ring fully contacts the machined flat surface of the tapped hole.
  • Page 33 Installation manual Mechanical installation 00825-0600-3104 October 2023 Figure 2-13: 90 Degree angle between slings 9. NEVER allow the slings to contact the electronics enclosure. Damage to the enclosure may occur. Use a spreader bar with the slings to prevent contact with the electronics enclosure and the base enclosure (see Safety precautions using appropriately rated lifting...
  • Page 34 Mechanical installation Installation manual October 2023 00825-0600-3104 Figure 2-14: Incorrect sling attachment 10. NEVER apply shock loads to the meter. Always lift the meter gradually. If shock loading ever occurs, the hoist ring must be inspected per manufacturer's recommendations prior to any further service. If a proper inspection cannot be performed, discard the hoist ring.
  • Page 35 • Fastenal • Reid Supply The appropriate hoist rings can also be purchased directly from Emerson. The following table provides part numbers for reference: Table 2-1: Hoist ring part number lookup table Rosemount part Hoist ring thread size & load...
  • Page 36 The following instructions are intended to provide general guidelines for using proper lifting slings when lifting a Rosemount 3410 Series Gas Ultrasonic Flow Meter by itself. These instructions are intended to be followed in addition to your company's standards or...

  • Page 37: Mounting Requirements In Heated Or Cooled Pipelines

    2.5  Mounting requirements in heated or cooled pipelines The ambient operating temperature of the Rosemount 3410 Series Gas Ultrasonic Flow Meter electronics (i.e. Flameproof enclosure and Intrinsically safe base enclosure) is -40 °F (-40 °C) to +140 °F (+60 °C).
  • Page 38 Extended length transducer cables (P/N 2-3-3400-194, 15 ft. long) shall be used to connect the Rosemount 3410 Series Gas Ultrasonic Flow Meter electronics to the transducers installed in the meter body. The process temperature must also not exceed the operating temperature range of the transducers.

  • Page 39: Chapter 3 Electrical Installation

    Installation manual Electrical installation 00825-0600-3104 October 2023 3  Electrical installation 3.1  Cable length TTL mode The maximum cable length is 2000 feet (609.6 m) when the Digital Output “TTL” mode is selected. 3.2  Cable length Open Collector mode For the Digital Output open collector mode, the maximum cable length depends on the cable parameters, pull-up resistance used, the maximum frequency to output, and frequency input parameters being driven.

  • Page 40: Grounding Meter Electronics Housing

    Electrical installation Installation manual October 2023 00825-0600-3104 3.3  Grounding meter electronics housing NOTICE The meter electronics should be internally grounded for intrinsically safe operations. Connect a wire to the chassis ground lug installed inside the Transmitter Electronics Enclosure as the primary ground. A secondary ground is located outside of the Transmitter Electronics Enclosure (see Figure 3-2).

  • Page 41: Conduit Seals

    Installation manual Electrical installation 00825-0600-3104 October 2023 Figure 3-2: External ground lug A. External ground lug 3.4  Conduit seals Conduit seals are required for meter installations in hazardous environments. Adhere to safety instructions to protect personnel and equipment.  WARNING Explosion hazard To reduce the risk of an explosion or fire, conduit runs must have a sealing fitting connected within 18 in.
  • Page 42 Electrical installation Installation manual October 2023 00825-0600-3104 3.4.1  Start-up for systems that use explosion-proof conduit Procedure 1. Assemble conduit to the transmitter electronics enclosure. A conduit seal fitting is required within 18 in. (457 mm) of the enclosure. 2. Check to make certain that all power to field wiring is turned OFF.  WARNING Hazardous voltage inside Do not open the Transmitter Electronics Enclosure when an explosive gas...
  • Page 43 Installation manual Electrical installation 00825-0600-3104 October 2023 Figure 3-3: Electronics field wiring - upper terminal block, switches, ground lug - Type 2 central processing unit (CPU) Module A. Conduit wiring entry (four entries) B. Switches A. Port A B. DHCP C. WRITE PROT. C.
  • Page 44 Electrical installation Installation manual October 2023 00825-0600-3104 Figure 3-4: Transmitter electronics field wiring lower terminal block - Type 2 CPU Module A. Lower terminal block B. FODO Group 1 connections • FODO1 • GND1 • DI 1 C. AO1 • AO1+ •...
  • Page 45 Installation manual Electrical installation 00825-0600-3104 October 2023 Figure 3-5: Electronics field wiring - upper terminal block, switches, ground lug - Type 4CPU Module A. Conduit wiring entry (four entries) B. Switches A. Port A B. DHCP C. WRITE PROT. C. Upper terminal block D.
  • Page 46 Electrical installation Installation manual October 2023 00825-0600-3104 Figure 3-6: Transmitter electronics field wiring lower terminal block - Type 4 CPU Module A. Lower terminal block B. FODO Group 1 connections • FODO1 • GND1 • DI 1/FODO6 C. AO1 • AO1+ •...
  • Page 47 Installation manual Electrical installation 00825-0600-3104 October 2023 Quick Start Manual (00809-0100-7630). Use the MeterLink Field Setup Wizard to complete the configuration. 7. Verify the field connections are working correctly. Allow the system to run for the time specified by the customer (usually one week) and an electrician has fully tested the connections.

  • Page 48: Wiring And Inputs/Outputs

    3.5  Wiring and inputs/outputs MeterLink uses the TCP/IP protocol to communicate with the Rosemount 3410 Series Ultrasonic Gas Flow Meter electronics instead of Modbus ASCII or RTU. The TCP/IP protocol only works across either Ethernet, RS-485 full duplex (4-wire) or RS-232. MeterLink can communicate with multiple meters if they are multi-dropped using 4-wire, full duplex RS-485 mode.
  • Page 49 Installation manual Electrical installation 00825-0600-3104 October 2023 Figure 3-8: CPU Module labeling and LED indicators - Type 4 A. Acquisition/Measurement mode B. Power C. LED 5: communication between CPU and acquisition module D. LED 4: link between CPU and acquisition module E.
  • Page 50 Electrical installation Installation manual October 2023 00825-0600-3104 (continued) Table 3-2: CPU Module labeling and LED functions CPU Module label Function Switch position indicator or LED or LED PORT A Switch position • PORT A override - RS-232 serves as an override during •...
  • Page 51 Installation manual Electrical installation 00825-0600-3104 October 2023 addresses the unit provides. A standard twisted pair (Cat-5) cable should be used for Ethernet wiring. It is strongly recommended that the meter be configured using an independent (off- network) single host. After configuration of the Rosemount 3410 Series Gas Ultrasonic ™...
  • Page 52 Modbus protocols can be disabled or made read-only on serial ports while still allowing authenticated MeterLink communications. 5. Rosemount 3410 Series Firmware v1.60 and later require user authentication and has a default administrator password. While the password is unique to each meter, it is highly recommended to be changed at meter startup.
  • Page 53 Installation manual Electrical installation 00825-0600-3104 October 2023 BLACK wire goes to COM (see Figure 3-9 for Port A wiring). RS-485, 2-wire connection on Port A, uses TX+ and TX- on the CPU Module and has a ground wire. When Belden wire No. 9940 or equivalent is used, the maximum cable length for RS-232 communications at 9600 bps is 88.3 meters (250 ft.) and the maximum cable length for RS-485 communication at 57600 bps is 600 meters (1970 ft.).
  • Page 54 3410 Series Gas Ultrasonic Meter. Figure 3-9: PC to meter serial connection wiring 3.5.2  Input/output connections The Rosemount 3410 Series Gas Ultrasonic Flow Meter provides the I/O connections on the CPU Module. Figure 3-10: CPU Module I/O connections A. Frequency/digital output 2 B.
  • Page 55 Installation manual Electrical installation 00825-0600-3104 October 2023 Figure 3-11: CPU Module I/O connections - Type 4 A. Frequency/digital output 2 B. Frequency/digital output 3 C. Frequency/digital output 4 D. Frequency/digital output 5 E. Analog input: temperature and pressure connections Optional input and output modules These modules are plugged into the second or third slot (retrofit) on the electronics head.
  • Page 56 Electrical installation Installation manual October 2023 00825-0600-3104 Figure 3-12: Optional module RS-232 A. Serial COMs (RS-232) B. RS-232: RTS, TX, RX Gas Ultrasonic Flow Meters...
  • Page 57 Installation manual Electrical installation 00825-0600-3104 October 2023 Figure 3-13: Optional module RS-485 A. Serial COMs (RS-485) B. RS-485: TX+, TX- (two-wire half duplex) Installation manual...
  • Page 58 Electrical installation Installation manual October 2023 00825-0600-3104 Figure 3-14: Optional Expansion I/O Module A. Expansion I/O Module B. RS-232: RX, TX, COM/RS-485: TX+, TX- (2-wire Half Duplex) C. 4-20 mA Input - AI3+/- (future use) D. Ethernet port 1 switch E. Ethernet port 2 switch F.
  • Page 59 Installation manual Electrical installation 00825-0600-3104 October 2023 Table 3-5: Expansion I/O to RJ45 wiring Ethernet communication Wire color CPU/EXP White w/Green Stripe Solid Green White w/Orange stripe Solid orange Note Wiring colors for TX+/TX- and RX+/RX- can be switched as ethernet ports will automatically detect crossover vs.
  • Page 60 Electrical installation Installation manual October 2023 00825-0600-3104 Table 3-6: Optional modules parameters Description Common features Port B/Port C • Typically used for general • Communications via MeterLink (Optional module) communications with a flow using RS-232 computer, RTU (Modbus slave) and • RS-232 - P/N: •...
  • Page 61 Installation manual Electrical installation 00825-0600-3104 October 2023 Table 3-7: Expansion I/O LED functions Expansion I/O Module LED Function TX/RX RX/TX signal (Port B/C for • Flashing Orange - RX RS485 or RS232 communication) • Flashing Green - TX receiving and transmitting data LINK/ACT Ethernet Switch Port 1, 2, 3 •...
  • Page 62 Electrical installation Installation manual October 2023 00825-0600-3104 • Frequency output 1A is the A Phase of Frequency output 1 content (Uncorrected volume flow rate, Corrected volume flow rate, Average flow velocity, Average speed of sound, Energy flow rate, Mass flow rate) •...
  • Page 63 Installation manual Electrical installation 00825-0600-3104 October 2023 Frequency/Digital output Source configuration Frequency /Digital Output 1 • Frequency output 1A Frequency /Digital Output 2 • Frequency output 1B Frequency /Digital Output 3 • Digital output 1A Frequency /Digital Output4 • Digital output 1B Frequency /Digital Output 5 Frequency /Digital Output 6 •...
  • Page 64 (group 2) Analog input settings The Rosemount 3410 Series Gas Ultrasonic Flow Meter has the capability to sample analog temperature (Analog Input 1) and pressure (Analog Input 2) with 4-20 mA signals. These analog input signals are configured to sink. The two independent analog input circuits are configured for conventional 4-20 mA service.
  • Page 65 Installation manual Electrical installation 00825-0600-3104 October 2023 DHCP server switch settings The meter can be configured to act as a DHCP server. The DHCP server is enabled/disabled via CPU Module DHCP switch as follows: Table 3-8: DHCP server switch settings CPU Module switch DHCP server disabled DHCP server enabled Configuration protect switch settings...

  • Page 66: Security Seal Installation

    Electrical installation Installation manual October 2023 00825-0600-3104 3.6  Security seal installation Security seals protect the integrity of the meter metrology and prevent tampering with transducer assemblies. The following sections detail how to properly seal the Rosemount 3410 Series Gas Ultrasonic Flow Meter after commissioning. The security seal wires are commercially available.
  • Page 67 Installation manual Electrical installation 00825-0600-3104 October 2023 Figure 3-21: Transmitter Electronics Enclosure security seals A. Transmitter Electronics Enclosure end cap B. Security wire seals 3. Adjust the security wire, removing all slack and thread into the lead seal. 4. Crimp lead seal and cut wire ends to remove excess wire. 3.6.2 ...
  • Page 68 Electrical installation Installation manual October 2023 00825-0600-3104 Figure 3-22: Base Enclosure wire seal installation A. Base Enclosure cover B. Security wire seals 2. Position the wire to prevent counterclockwise rotation of the screws when the seal wire is taut. 3. Feed the security wire beneath the Transmitter Electronics Enclosure and through the adjacent socket head screw.
  • Page 69 Installation manual Electrical installation 00825-0600-3104 October 2023 Figure 3-23: Base Enclosure security seals A. Transmitter Electronics Enclosure B. Security wire seals C. Transmitter Electronics endcap security latch D. Base Enclosure 4. Cut wire ends to remove excess wire. 3.6.3  Transducer assembly security seals Use the following instructions and Figure 3-24 to install the security seal wire on the...

  • Page 70: Sealing The Unit

    Electrical installation Installation manual October 2023 00825-0600-3104 Figure 3-24: Transducer assembly security seal A. Transducer cable nut B. Transducer cable connector C. Security wire seal 3.7  Sealing the unit The unit should be properly sealed with a sealing compound after electrical connections have been tested according to the customer's Best Practices schedule.

  • Page 71: Chapter 4 Configuration

    Installation manual Configuration 00825-0600-3104 October 2023 4  Configuration After the mechanical and electrical installation has been completed, use the following to install MeterLink in order to establish connection with the meter to perform final ™ configuration and verify meter performance. 4.1  Set up the MeterLink ™...
  • Page 72 Configuration Installation manual October 2023 00825-0600-3104 Configure Frequency output 1 and Frequency output 2 content, flow direction, Channel B phase, maximum frequency output (Hertz) and full scale volumetric flow rate. 7. Select Next to continue to Meter Digital Outputs. 8. Select the Meter Digital Output parameters for Digital output 1A, Digital output 1B, Digital output 2A and Digital output 2B based on Frequency validity or flow direction.
  • Page 73 Installation manual Configuration 00825-0600-3104 October 2023 • GC baud rate: Select the baud rate for which the GC is configured. This option will be enabled only when a serial port is selected. • GC comms address: Enter the Modbus ID of the GC. •...
  • Page 74 Configuration Installation manual October 2023 00825-0600-3104 23. Use the drop-down arrow in the Display Items list box and select or modify the parameters that will be displayed; the Display items, the Display units and the Scroll Delay. 4.2.1  Display items The Local Display’s labels and descriptions are shown below: Table 4-1: Local display labels, descriptions and valid units Local display labels, descriptions and valid units QFLOW —...
  • Page 75 Installation manual Configuration 00825-0600-3104 October 2023 (continued) Table 4-1: Local display labels, descriptions and valid units Local display labels, descriptions and valid units • -ACF – Actual Cubic Feet • -ACM – Actual Cubic Meters • -MACF – Thousand Actual Cubic Feet •...
  • Page 76 Configuration Installation manual October 2023 00825-0600-3104 (continued) Table 4-1: Local display labels, descriptions and valid units Local display labels, descriptions and valid units • -SCF – Standard Cubic Feet • -SCM – Standard Cubic Meters • -MSCF – Thousand Standard Cubic Feet •...
  • Page 77 Installation manual Configuration 00825-0600-3104 October 2023 (continued) Table 4-1: Local display labels, descriptions and valid units Local display labels, descriptions and valid units AO1 — Analog Output 1 current • MA – Milliamperes AO2 — Analog Output 2 current • MA – Milliamperes Note When connected to a meter with the local display option, reverse flow direction is indicated with a minus sign (negative) before the value(s) shown on the local display.

  • Page 78: Using Ams Device Manager To Configure The Meter

    2. Use the Filter Results By categories to narrow down your search. a) Select the checkbox for HART under Communication Protocol. b) Search and select the option Rosemount under Emerson. c) Select the Gas 3410 Series option under Rosemount. d) Then, select the desired device revision.
  • Page 79 Installation manual Configuration 00825-0600-3104 October 2023 9. Click the Configure tab, and then select Guided Setup, Manual Setup or Alert Setup. Figure 4-3: AMS Device Manager Figure 4-4: AMS Device Manager - Overview 4.3.2  AMS Device Manager - Guided setup The Guided setup wizard provides configuration parameter settings for the meter. The Guided Setup is a subset of the Manual Setup parameters.
  • Page 80 Configuration Installation manual October 2023 00825-0600-3104 Figure 4-5: AMS Device Manager - Guided Setup Note Before writing configuration changes to your meter, ensure you have saved the Configuration file and Maintenance log. Procedure 1. Disable the Write Protect switch in the CPU Module to write any of the following configuration parameters to your meter.
  • Page 81 Installation manual Configuration 00825-0600-3104 October 2023 Note If changes are made to any Source variable on this page, apply the changes and navigate to the Guided Setup page. Navigate back to the Manual Setup for the changes to be reflected in other Manual Setup pages. b) Click the Frequency and Digital Output 1 tab to configure the Content, (flow) Direction, Channel B Phase frequency output, Lag forward, Lead Reverse or Lead Forward, Lag Reverse (Phase B lags Phase A while reporting forward...
  • Page 82 Configuration Installation manual October 2023 00825-0600-3104 Figure 4-6: AMS Device Manager - Service Tools All Variables status indicators 8. Click OK to return to the Overview page. 9. Enable the Write Protect switch on the CPU Module to protect the meter’s configuration.
  • Page 83 Installation manual Configuration 00825-0600-3104 October 2023 Figure 4-8: AMS Device Manager - Configure Manual Setup Procedure 1. Remove security wires from the endcap and the Bracket/Cover hex head bolts that secures the Base Enclosure if they are installed. 2. Disable the Write Protect switch in the CPU Module to write any of the following configuration parameters to your meter.
  • Page 84 Configuration Installation manual October 2023 00825-0600-3104 a) Click Apply, after you enter the data to write the parameters to the meter. 9. Click the Frequency and Digital Output 2 tab. Follow the instructions in the Step 4c to configure the Frequency and Digital Output 2 parameters. a) Click Apply, after you enter the data to write the parameters to the meter.
  • Page 85 Installation manual Configuration 00825-0600-3104 October 2023 — State gated, active high Figure 4-11: Gating configuration parameter State gated, active high — State gated, active low Figure 4-12: Gating configuration parameter State gated, active low 13. Click the Alert Setup tab (from the main Configuration page). Figure 4-13: Configure Flow Analysis Alert 14.
  • Page 86 Configuration Installation manual October 2023 00825-0600-3104 a) Enter the minimum reverse flow velocity above which to accumulate flow in the reverse direction for this alert. Enter a positive value for the Reverse Flow Zero Cutoff. Click the Next button to write the values to the meter. Check for an error response.
  • Page 87 Installation manual Configuration 00825-0600-3104 October 2023 Figure 4-15: Configuration changes dialog c) Click the Service Tools → Variables tab. The Variables page displays tabs for the device’s Flow Data, Path Information, Flow Totals, and All Variables. Figure 4-16: AMS Device Manager - Service Tools The Service Tools → Flow Data page includes charts for flow and sound velocities.
  • Page 88 Configuration Installation manual October 2023 00825-0600-3104 d) Click Service Tools → Variables → Path Information tab to view the device’s chord performance (%), Gain (dB), SNR (dB), Signal (mV) and Noise (mV). e) Click Service Tools → Variables → Flow Totals to view the volume totals (forward and reverse Uncorrected Volume) parameters for the connected device.
  • Page 89 Installation manual Configuration 00825-0600-3104 October 2023 Figure 4-18: AMS Device Manager - Service Tools Trends Primary and Secondary variables display real-time uncorrected volume flow rate trends. The third and fourth variables charts displays trends for temperature and pressure. 16. Click the Service Tools → Routine Maintenance tab. Click Analog Output 1 Trim to perform a digital to analog trim adjustment of the first milliampere output.

  • Page 90: Using A Field Communicator To Configure The Meter

    00825-0600-3104 4.4  Using a Field Communicator to configure the meter Prerequisites • Emerson Field Communicator software, license, installation guide and user manual available on the Emerson Field Communicator website: https://www.emerson.com/en-us/automation/asset-performance-management/field- device-management/field-communicators • Rosemount HART Device Description (HART DD) installed for the meter ®...
  • Page 91 Installation manual Configuration 00825-0600-3104 October 2023 Figure 4-19: 3414 transmitter field wiring conduit entries A. Field wiring conduit entries (4) 5. Wire Analog Input 1 (AI1) and Analog Output 1 (AO1) as shown in Figure 4-20 Engineering drawings, drawing DMC-005324. Figure 4-20: Field Communicator wiring diagram for the 3410 Series electronics 6.

  • Page 92: Security Seals For The Meter (Optional)

    For added security, the default username, administrator, can be changed as well. See Manage Users in the Rosemount 3410 Series Gas Ultrasonic Flow Meters: Operations Manual (00809-1100-3104) for more details on setting up users, user types and passwords using the Meter → Manage Users dialog box in MeterLink.

  • Page 93: Appendix A Engineering Drawings

    Installation manual Engineering drawings 00825-0600-3104 October 2023 A  Engineering drawings A.1  3410 Series engineering drawings This appendix contains the following engineering drawing(s) for the ultrasonic meter: DMC-005324 Rosemount 3410 Series Ultrasonic Gas Flow Meter System Wiring Diagram Installation manual...
  • Page 94 Engineering drawings Installation manual October 2023 00825-0600-3104 Gas Ultrasonic Flow Meters...
  • Page 95 Installation manual Engineering drawings 00825-0600-3104 October 2023 Installation manual...
  • Page 96 Engineering drawings Installation manual October 2023 00825-0600-3104 Gas Ultrasonic Flow Meters...

  • Page 97: Appendix B Open Source Licenses

    B.1  List of source codes for executable files For a copy of the source code covered under the open source licenses indicated in this appendix, please contact flow.support@emerson.com. B.2  GNU General Public License For more details about GNU GPL (General Public License): GNU GPL (General Public License) Micro Motion Inc., uses GPL Version 2:...
  • Page 98 Open source licenses Installation manual October 2023 00825-0600-3104 We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software.
  • Page 99 Installation manual Open source licenses 00825-0600-3104 October 2023 and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
  • Page 100 Open source licenses Installation manual October 2023 00825-0600-3104 further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
  • Page 101 Installation manual Open source licenses 00825-0600-3104 October 2023 PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED...

  • Page 102: Gnu Lesser General Public License

    Open source licenses Installation manual October 2023 00825-0600-3104 signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library.
  • Page 103 Installation manual Open source licenses 00825-0600-3104 October 2023 "b) under the GNU GPL, with none of the additional permissions of this License applicable to that copy. 3. Object Code Incorporating Material from Library Header Files The object code form of an Application may incorporate material from a header file that is part of the Library.

  • Page 104: Bsd Open Source License

    Open source licenses Installation manual October 2023 00825-0600-3104 a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities, conveyed under the terms of this License. b) Give prominent notice with the combined library that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.
  • Page 105 Installation manual Open source licenses 00825-0600-3104 October 2023 ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. B.5  M.I.T License For more details about the Open Source MIT license or the Open Source Initiative: ™...
  • Page 106 Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
