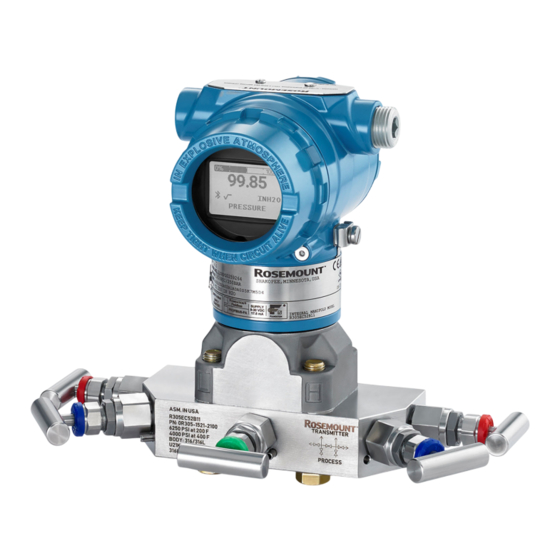

Emerson Rosemount 3051 Series Quick Start Manual

Flow meter
Hide thumbs Also See for Rosemount 3051 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
00825-0100-4007, Rev HF
August 2023
Rosemount
3051 Pressure
™
Transmitter and 3051CF Series Flow
Meter
with 4-20 mA HART
®

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 3051 Series

Summary of Contents for Emerson Rosemount 3051 Series

  • Page 1 Quick Start Guide 00825-0100-4007, Rev HF August 2023 Rosemount 3051 Pressure ™ Transmitter and 3051CF Series Flow Meter with 4-20 mA HART ®...

  • Page 2: Table Of Contents

    Quick Start Guide August 2023 Contents About this guide........................... 3 Mounting the transmitter......................5 Housing rotation........................13 Set the switches......................... 14 Connect the wiring and power up................... 15 Configuration parameters......................19 Trim the transmitter........................22 Safety Instrumented Systems (SIS)..................24 Product certifications........................ 25 Emerson.com...

  • Page 3: About This Guide

    Intrinsically Safe (IS) installations. Refer to the Rosemount 3051 Pressure Transmitter Manual for more instructions. This guide and the referenced manual are also available on Emerson.com. 1.1  Safety messages  WARNING Explosions Explosions could result in death or serious injury.
  • Page 4 Entries marked “M20” are M20 × 1.5 thread form. On devices with multiple conduit entries, all entries will have the same thread form. When installing in a hazardous location, use only appropriately listed or Ex certified plugs, glands, or adapters in cable/conduit entries. Emerson.com...

  • Page 5: Mounting The Transmitter

    August 2023 Quick Start Guide 2  Mounting the transmitter NOTICE Consider process connection and ambient temperatures when installing the 3051 with hazardous location certifications. Process connection temperatures above +85 °C require a limited ambient temperature, reduced by a 1:1.5 ratio. See Table 2-1.
  • Page 6 Mount the transmitter in a gas flow application NOTICE A bracket is required to support the transmitter and the ¼-in. tubing going into the transmitter. Procedure 1. Place taps in the top or side of the line. 2. Mount the transmitter beside or above the taps. Emerson.com...
  • Page 7 August 2023 Quick Start Guide 2.3  Steam flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. Quick Start Guide...
  • Page 8 Quick Start Guide August 2023 2.4  Panel and pipe mount Figure 2-1: Panel and Pipe Mounting Panel mount Pipe mount Coplanar flange Traditional flange Rosemount 3051T Rosemount 3051H 5/16 x 1½ panel bolts are customer supplied. Emerson.com...
  • Page 9 Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-2 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 10 Table 2-2: Torque Values for the Flange and Flange Adapter Bolts Bolt Head markings Initial Final material torque torque Carbon Steel (CS)   300 in-lb 650 in-lb Stainless 150 in-lb 300 in-lb Steel (SST)   Emerson.com...
  • Page 11 August 2023 Quick Start Guide 2.6  O-rings with flange adapters  WARNING Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O- ring that is designed for its specific flange adapter, as shown in Figure 2-3.
  • Page 12 Keep the vent path free of any obstruction including but not limited to paint, dust, and lubrication by mounting the transmitter so that fluids can drain away. Figure 2-4: In-line Gage Low Side Pressure Port A. Pressure port location Emerson.com...

  • Page 13: Housing Rotation

    August 2023 Quick Start Guide 3  Housing rotation To improve field access to wiring or to better view the optional display: Procedure 1. Loosen the housing rotation set screw using a 5/64-in. hex wrench. 2. Turn the housing left or right up to a maximum of 180° from its original position.

  • Page 14: Set The Switches

    3. Slide the security and alarm switches into the preferred position using a small screwdriver. 4. Reattach the transmitter cover. The cover must be fully engaged to comply with explosion-proof requirements. Figure 4-1: Electronics Board Without LCD display With LCD display A. Alarm B. Security Emerson.com...

  • Page 15: Connect The Wiring And Power Up

    August 2023 Quick Start Guide 5  Connect the wiring and power up Figure 5-1 shows wiring connections necessary to power a Rosemount 3051 transmitter and enable communications with a handheld communicator. Resistance and power requirements vary based on the interface type used to communicate with the device. Table 5-1 for specific loop power and resistance needs.
  • Page 16 ≥ 10.5 Vdc none Interface 5.1  Signal wiring grounding Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment. Grounding terminations are provided on the outside of the electronics housing and inside Emerson.com...
  • Page 17 August 2023 Quick Start Guide the terminal compartment. These grounds are used when transient protect terminal blocks are installed or to fulfill local regulations. Step 2 for more information on how the cable shield should be grounded. Procedure 1. Remove the field terminals housing cover. 2.
  • Page 18 The total resistance load is the sum of the resistance of the signal leads and the load resistance of the controller, indicator, I.S. barriers, and related pieces. If you use intrinsic safety barriers, include the resistance and voltage drop. Emerson.com...

  • Page 19: Configuration Parameters

    Units Complete the following procedural steps to verify these parameters. Figure 6-1 for a full menu tree. NOTICE Emerson recommends installing the latest DD to ensure full functionality. Download the latest DD at Software Downloads & Drivers | Emerson Procedure 1.
  • Page 20 Quick Start Guide August 2023 • Other units: Device Settings → Output → Pressure/Flow/ Totalizer/Level/Volume/Module Temperature → Setup Figure 6-1: Device driver (DD) menu tree 6.1  Wireless configuration via Bluetooth technology ® 6.1.1  Download AMS Device Configurator Procedure Download and install the app from your app store. Emerson.com...
  • Page 21 ® Procedure 1. Launch AMS Device Configurator. AMS Device Configurator for Emerson Field Devices. 2. Select the device where you want to connect. 3. On first connection, enter the key for selected device. 4. At the top left, select the menu icon to navigate the desired device menu.

  • Page 22: Trim The Transmitter

    Using the transmitter zero adjustment buttons, the Lower Range Value (LRV) will be set to the pressure applied to the transmitter. This adjustment will affect the 4–20 mA value only. Perform the following steps to perform a rerange using the zero adjustment buttons. Emerson.com...
  • Page 23 August 2023 Quick Start Guide Procedure 1. Loosen the certifications label screw and slide the label to expose the zero adjustment buttons. 2. Set the 4 mA point by pressing the zero button for two seconds. Verify the output is 4 mA. The optional LCD display will show ZERO PASS.

  • Page 24: Safety Instrumented Systems (Sis)

    Quick Start Guide August 2023 8  Safety Instrumented Systems (SIS) For safety certified installations, refer to the Rosemount 3051 Reference Manual for installation procedure and system requirements. Emerson.com...

  • Page 25: Product Certifications

    European directive information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com. 9.2  FCC notice This device complies with Part 15 of the Federal Communication Commission Rules.
  • Page 26 80 kPa (0.8 bar) to 110 kPa (1.1 bar). 3. Process temperature limits shall be in accordance with 03031-1053. 4. Flameproof joints are not intended for repair. 9.5.2  I5 USA Intrinsic Safety (IS) and Nonincendive (NI) FM16US0120X Certificate Ranges 1-5 (HART only) ® Emerson.com...
  • Page 27 August 2023 Quick Start Guide FM 3600: 2011, FM 3610: 2010, FM 3611: 2004, FM 3810: Standards 2005, ANSI/NEMA 250: 2008 IS: CL I, DIV 1, GP A, B, C, D T4 Markings CL II, DIV 1, GP E, F, G; CL III NI: CL 1, DIV 2, GP A, B, C, D;...
  • Page 28 ANSI/UL 61010-1-2019 Third Edition, ANSI/UL 60079-0: 2017, ANSI/UL 60079-11: 2013, ANSI-ISA-12.27.01–2022, ANSI/UL 50E (First Edition) IS: CL I GP ABCD T4 Markings CL I ZN 0 AEx ia IIC T4 Ga -60 °C ≤ T ≤ +70 °C FISCO OPTIONAL: SINGLE SEAL Emerson.com...
  • Page 29 August 2023 Quick Start Guide TYPE 4X, IP 68 INSTALL PER 03031-1024. Specific Conditions for Use 1. The Rosemount 3051 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
  • Page 30 2. Equipment evaluated for atmospheric pressure range between 80 kPa (0.8 bar) to 110 kPa (1.1 bar). 3. Flameproof joints are not intended for repair. 9.6  Europe 9.6.1  E8 ATEX Flameproof and Dust KEMA00ATEX2013X (Ex db); Baseefa11ATEX0275X ATEX Certificate (Ex ta) Emerson.com...
  • Page 31 August 2023 Quick Start Guide EN IEC 60079-0: 2018, EN 60079-1: 2014, EN 60079-26: Standards Used 2015, EN 60079-31: 2014 Markings II ½ G Ex db IIC T6...T4 Ga/Gb T6 T6: –60 °C ≤ T ≤ +70 °C T4/T5: –60 °C ≤ T ≤...
  • Page 32 Avoid installations that could cause electrostatic build-up on painted surfaces and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. 9.6.3  IA ATEX FISCO BAS97ATEX1089X Certificate Emerson.com...
  • Page 33 August 2023 Quick Start Guide EN IEC 60079-0: 2018, EN60079-11: 2012 Standards II 1 G Ex ia IIC T4 Ga Markings –60 °C  ≤ T ≤ +60 °C Table 9-3: Input parameters Fieldbus/PROFIBUS ® Voltage U 17.5 V Current I 380 mA Power P 5.32 W Capacitance C...
  • Page 34 2. Flameproof joints are not intended for repair. 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic Emerson.com...
  • Page 35 August 2023 Quick Start Guide build-up on painted surfaces and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. 4. Some variants of the equipment have reduced markings on the nameplate.
  • Page 36 Ex ia IIC T4 Ga Markings -60 °C ≤ T ≤ +60 °C Table 9-7: Input parameters Fieldbus/PROFIBUS ® Voltage U 17.5 V Current I 380 mA Power P 5.32 W Capacitance C ≤ 5 nF Inductance L ≤ 10 µH Emerson.com...
  • Page 37 August 2023 Quick Start Guide Specific Conditions for Safe Use: 1. If the apparatus is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of IEC 60079-11. This must be taken into account when installing the apparatus.
  • Page 38 EPL Ga. 9.8.3  IB Brazil FISCO UL-BR 13.0584X Certificate ABNT NBR IEC60079-0: 2013, ABNT NBR IEC60079-11: Standards 2013 Ex ia IIC T4 Ga (-60 °C ≤ T ≤ +60 °C) Markings Emerson.com...
  • Page 39 August 2023 Quick Start Guide Table 9-9: Input parameters FISCO Voltage U 17.5 V Current I 380 mA Power P 5.32 W Capacitance C ≤ 5 nF Inductance L ≤ 10 µH Special Conditions for Safe Use (X): 1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IRC 60079-11.
  • Page 40 – Mfg USA], 13-KB4BO-0204X Certificate ® [Fieldbus – Mfg USA], 10-KB4BO-0138X [HART – Mfg Singapore], 13-KB4BO-0206X [Fieldbus – Mfg Singapore] 18-KA4BO-0354X [HART – Mfg USA], 18-KA4BO-0355X [Fieldbus – Mfg USA] Ex ia IIC T5/T4 (HART); Ex ia IIC T4 (Fieldbus) Markings Emerson.com...
  • Page 41 August 2023 Quick Start Guide 9.12  EAC 9.12.1  EM EAC Flameproof Markings Ga/Gb Ex db IIC T4…T6 X, T4/T5 (-60 °C ≤ T ≤ +80 °C), T6 (-60 °C ≤ T ≤ +70 °C) Special Condition for Safe Use (X): See certificate for special conditions. 9.12.2 ...
  • Page 42 Application Table 9-10: Location classes Temperature Humidity Vibration Enclosure 9.14.4  SLL Lloyds Register (LR) Type Approval LR21173788TA Certificate Environmental categories ENV1, ENV2, ENV3, and ENV5 Application 9.14.5  C5 Custody Transfer - Measurement Canada Accuracy Approval AG-0226; AG-0454; AG-0477 Certificate Emerson.com...
  • Page 43 August 2023 Quick Start Guide 9.15  EU Declaration of conformity Quick Start Guide...
  • Page 44 Quick Start Guide August 2023 Emerson.com...
  • Page 45 August 2023 Quick Start Guide Quick Start Guide...
  • Page 46 Quick Start Guide August 2023 Emerson.com...
  • Page 47 August 2023 Quick Start Guide 9.16  China RoHS Quick Start Guide...
