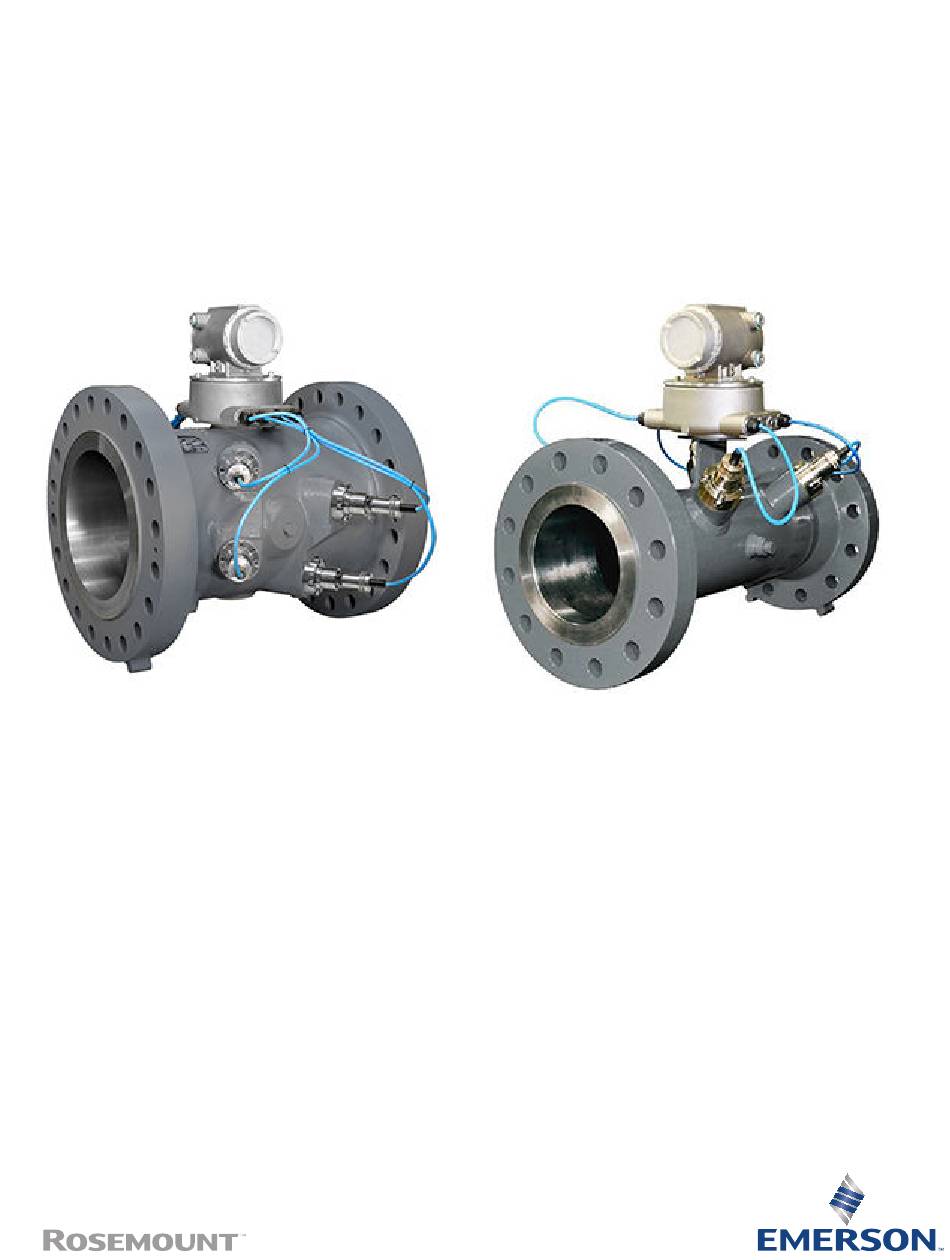

Maintenance and Troubleshooting Manual
00809-0600-3104, Rev AC
January 2024
Rosemount
™

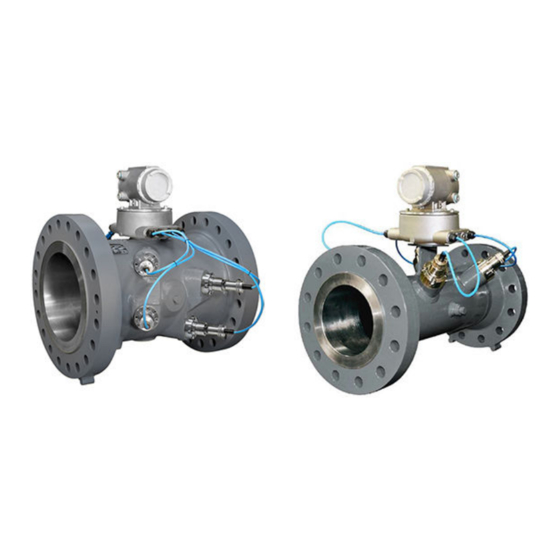

3410 Series Gas Ultrasonic
Flow Meters
Models 3414, 3412 and 3411
