Hardware Installation and Reference Guide
1.2
Product Appearance

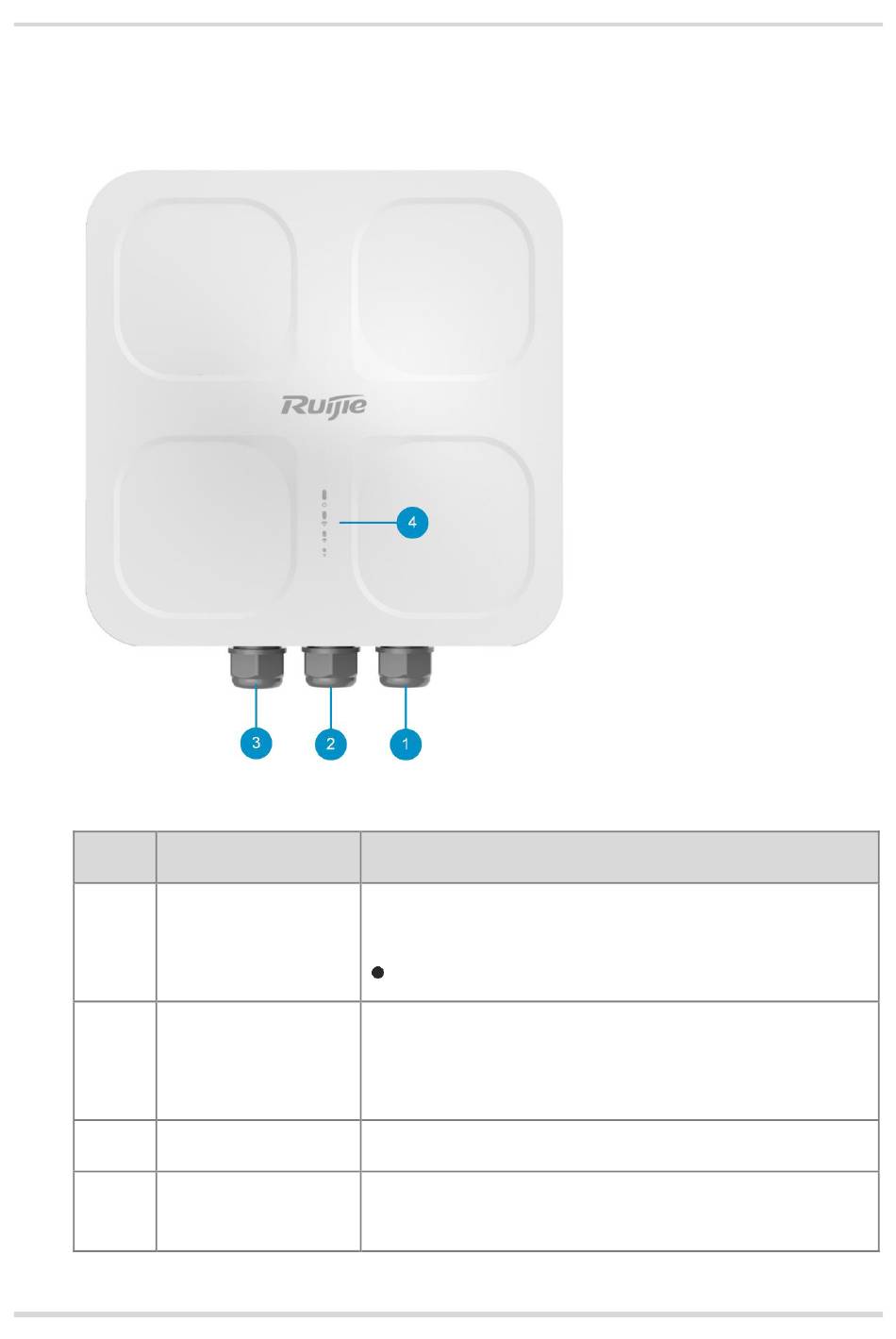

Figure 1-1
Front View
Table 1-1
Description of Buttons and Ports on the Front Panel
No.
Item
LAN1/HPoE electrical
1
port
2
LAN2/IoT
3
LAN3/SFP+
4
LED
Description
Uplink service port for data transmission, 5000Base-T
Ethernet port with auto-negotiation
Support IEEE802.3af/802.3at/802.3bt-complaint PoE
Downlink service port for data transmission, 1000Base-T
Ethernet port with auto-negotiation
Support 802.3af-complaint power supply to external devices
Uplink service port for data transmission, 10GE SFP port
Used to indicate the system working status, including one
system status LED and three RSSI LEDs
2
Product Introduction
