Mechanical Assembly Series 20 - Telecom Behnke Hybrid Series Instructions Manual

Instructions for Behnke Hybrid series 20-0005-BS, SIP intercoms series 20-0005B-IP

2.2. Mechanical assembly series 20

Check whether all components required for
1
your intercom stations are present.
Check all components for completeness imme-
diately upon receipt (e.g. the screw accessory
pack for your frame). Content see page 62.
For mounting, place your frame with the
a
front side down on a suitable, non-scratching
surface.

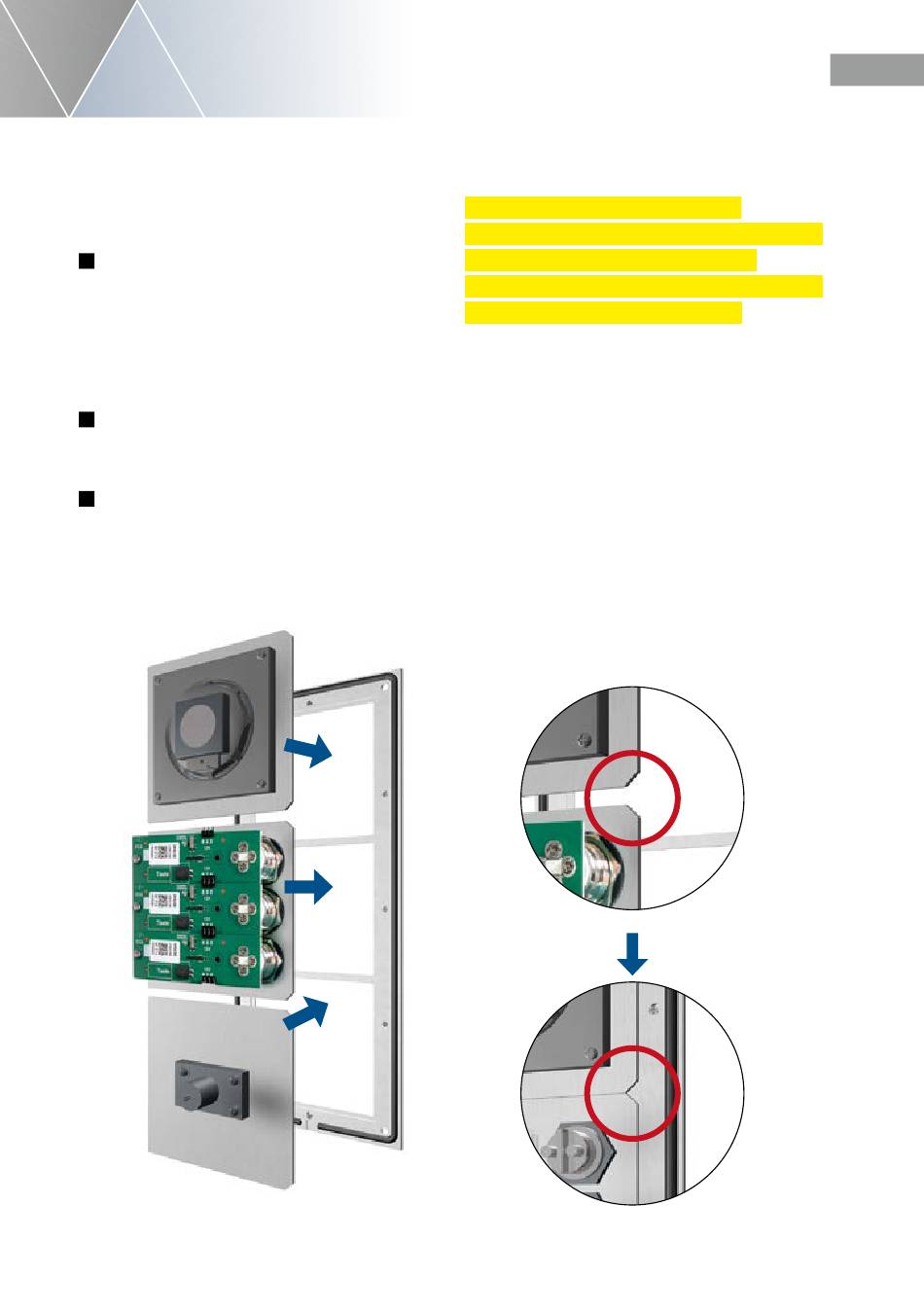

Insert your modules into the corresponding
b
module recesses as shown in the sketch.
Modules must be flush with the frame.
www.behnke-online.de
Note: When using the speaker types
20-1107-BS/21-1107-BS/20-1109-BS/21-1109-BS
as well as 43-9915-BS, ensure that the
Loudspeakers are not in the immediate vicinity
of the relays of the basic electronics.
!
When inserting the modules, please pay
attention to the anti-twist device
correct fit of the modules. For reasons of
acoustics, always choose the biggest
possible distance between speaker and
microphone.
GB
Mounting
and the
61
