2.2. Mechanical assembly series 20

Check whether all components required for
1
your intercom stations are present.
Check all components for completeness imme-
diately upon receipt (e.g. the screw accessory
pack for your frame).
For mounting, place your frame with the
a
front side down on a suitable, non-scratching
surface.

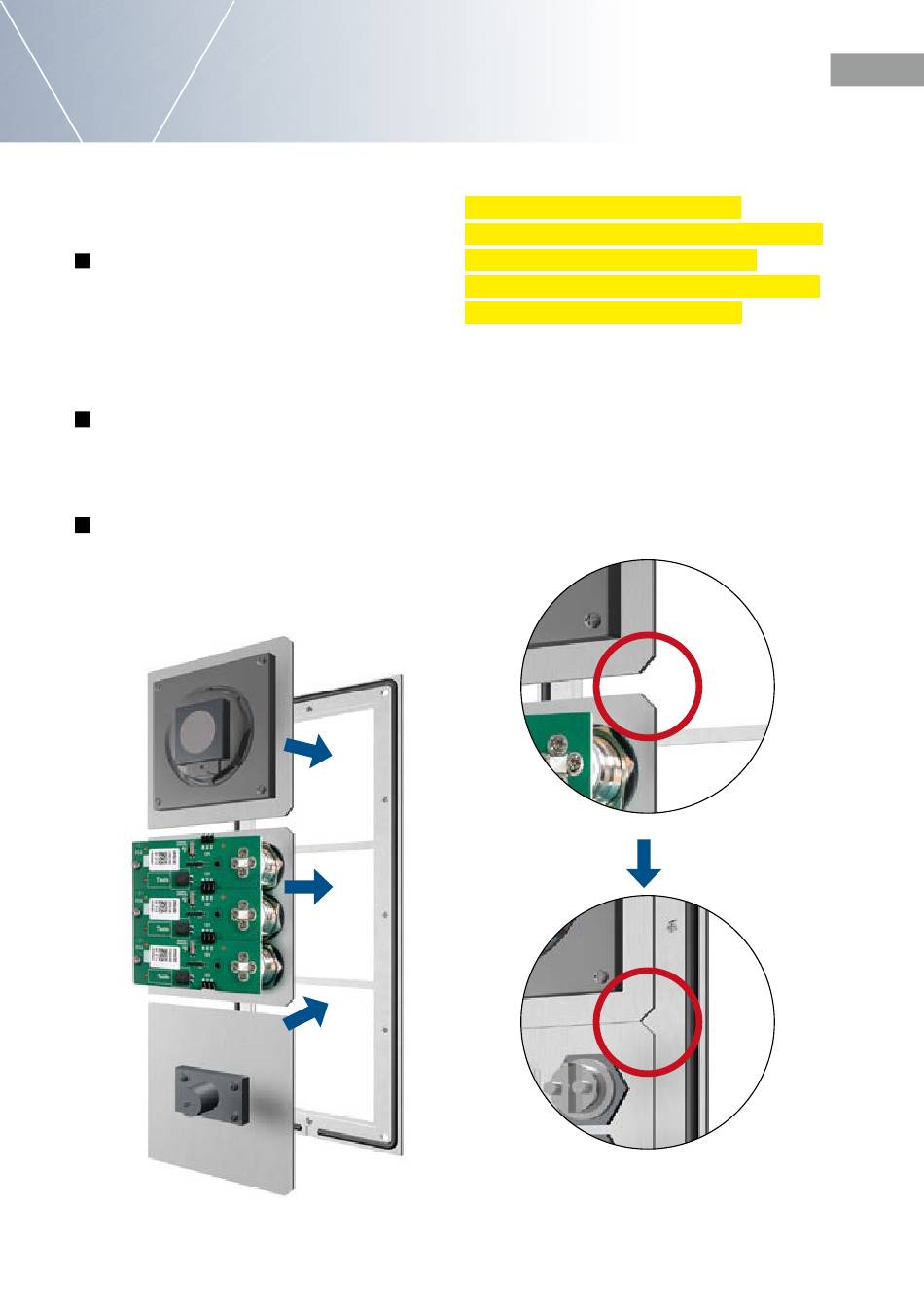

Insert your modules into the corresponding
b
module recesses as shown in the sketch. Mod-
ules must be flush with the frame.
www.behnke-online.de
Instructions for Behnke 20-0001B-IP, 20-0014B-IP, 20-0016B-IP
Note: When using the speaker types
20-1107-BS/21-1107-BS/20-1109-BS/21-1109-BS
as well as 43-9915-BS, ensure that the
loudspeakers are not in the immediate vicinity
of the relays of the basic electronics.
!
When inserting the modules, please pay
attention to the
correct fit of the modules. For reasons of
acoustics, always choose the greatest
possible distance between speaker and
microphone.
Mounting
anti-twist device and the
