8.6. Routing Matrix Screen

With so many inputs and outputs, the AudioFuse 16Rig provides many choices for routing
signals. The Routing Matrix screen lets you make sense of the many possible routing options
and see at a glance where signals are going.

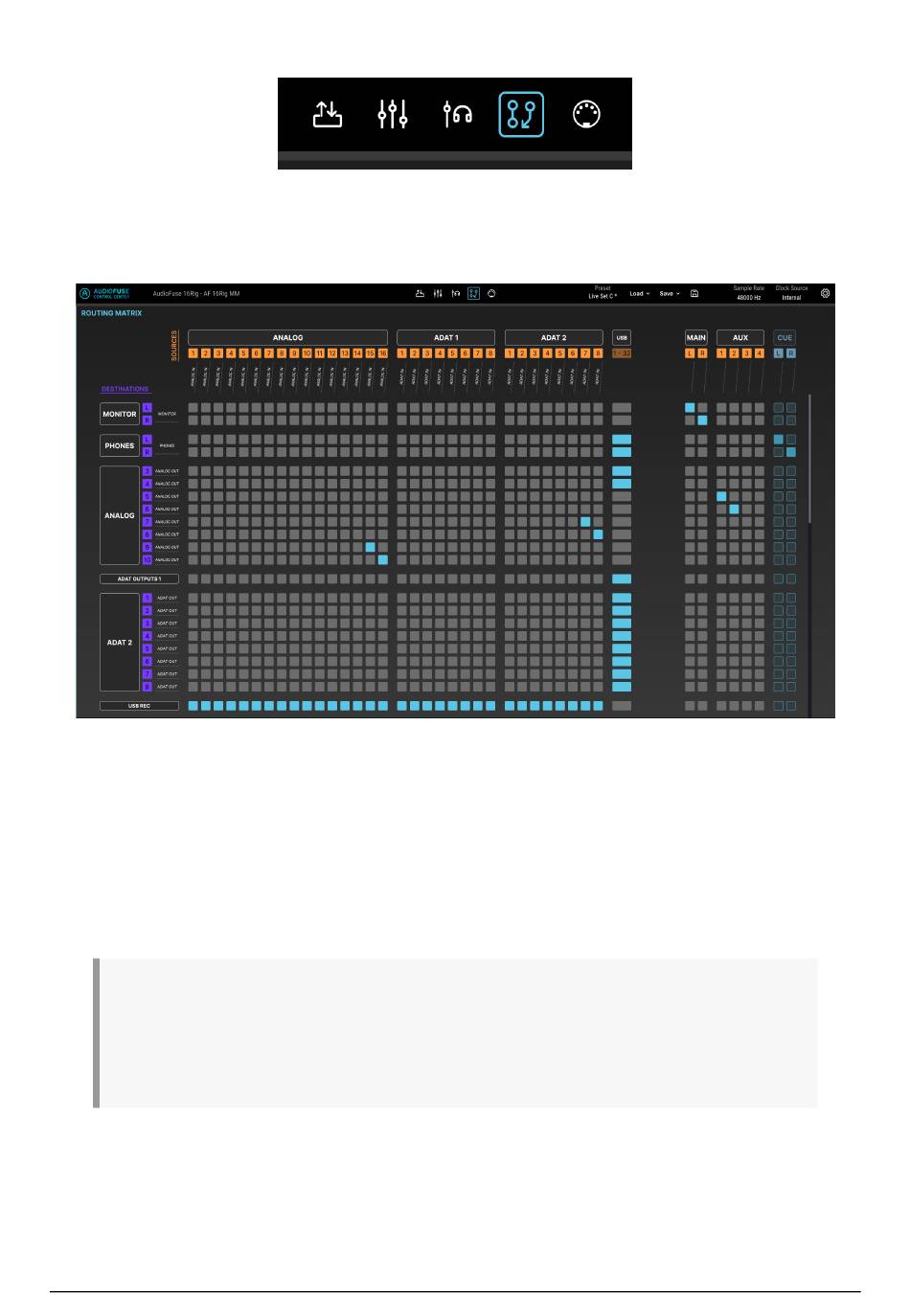

The Routing screen shows a matrix of SOURCES (columns listed from left to right and
numbered in gold) and DESTINATIONS (rows listed from top to bottom and numbered in
purple). To make a connection, simply click the point where the source and destination
intersect in the matrix. Connections are shown with blue squares.
When working in the router, you will often need to make lots of "diagonal" connections,
which can be tedious to do one-by-one (often over 8 or even 16 connections at a time). To
make life easier, we've added a click-drag function that draws a line and makes diagonal
connections quickly and easily for you.

TIP: Don't think of the sources and destinations as "inputs" and "outputs"! You can get tripped up
easily that way. After all, when you send the Main mix to the Monitor jacks, you're sending an "output" to
another "output", which can quickly become confusing as you connect more and more things. Instead,
any time you're working in the Routing Matrix, just think of things as being sources and destinations. It's
a simple trick but hopefully it keeps things clear in your mind.
