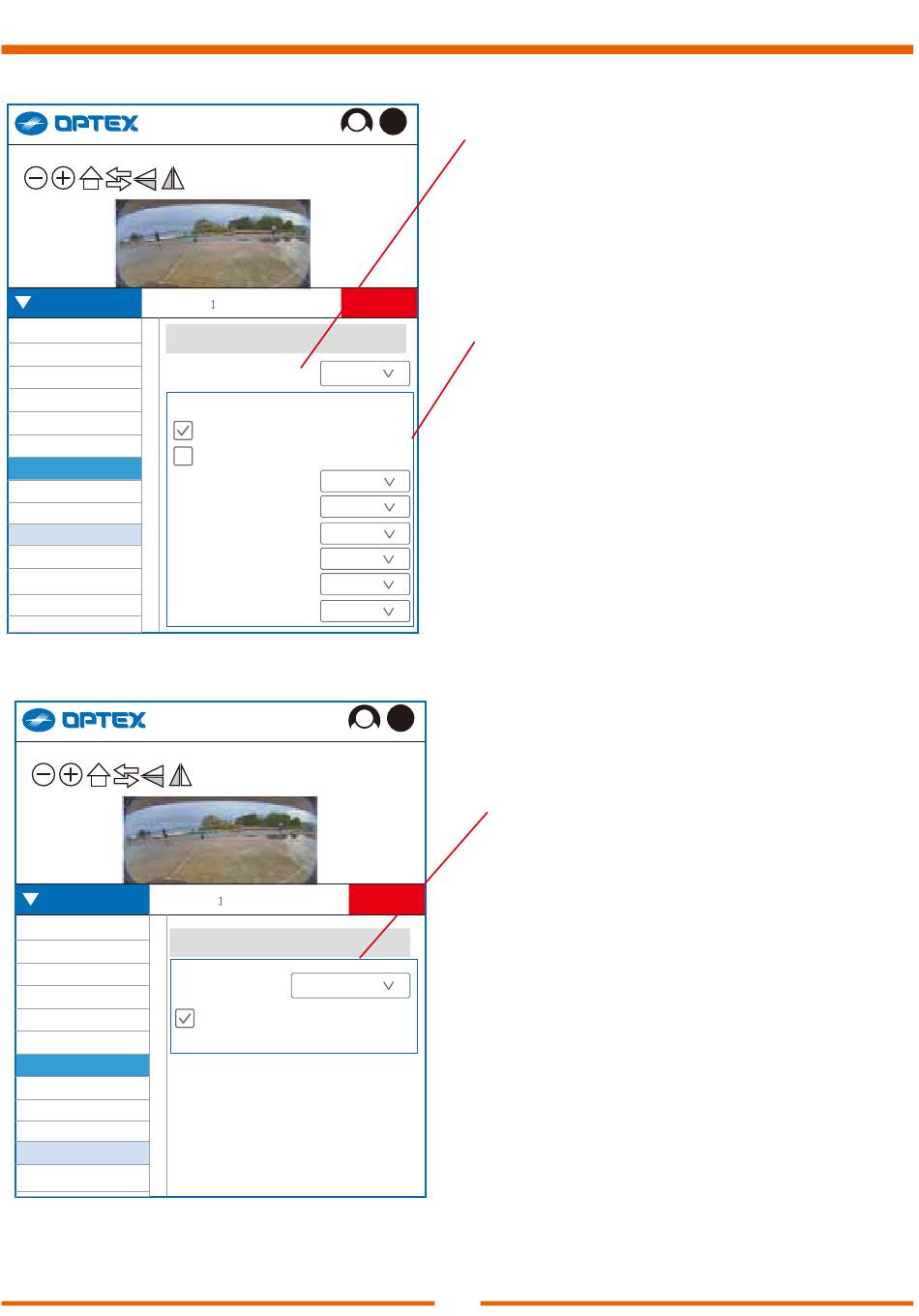

5-4-3. Day/Night
?
Day/Night switch
Auto: Switching automatically according to the
ambient illuminance.
Night: It is fixed to a monochrome image so that
it can record even in low light.
Day: It is fixed to a color image regardless of
the ambient illuminance.
IR illumination
Enable IR illumination
Enable power saving
Reduces power consumption by reducing IR LED output
when no object is detected.
Right side/middle/front, Left side/middle/front
[ Auto, OFF, Level 1 to 5 ]
Auto: Ajust automatically according to the size of the
scan area.
OFF: IR illumination is not activated.
Level 1 to 5: IR illumination is activated with each level.
?
5-4-4. Miscellaneous
Video output
[ Camera/Map, All black, Mosaic ]
Camera/Map: Camera/Map images without any processing
All black: Black images. Settings on "Camera -
Privacy mask" and "View - Video" are ignored.
Mosaic: Images with mosaic. Settings on "Camera -
Privacy mask" are ignored.
Notify internal error of camera module
If you set it to enable, the TR signal is output
when an internal error occurs.
If you do not
the TR signal,
44
[ Auto, Night, Day ]
want to report a camera error as
uncheck it.
