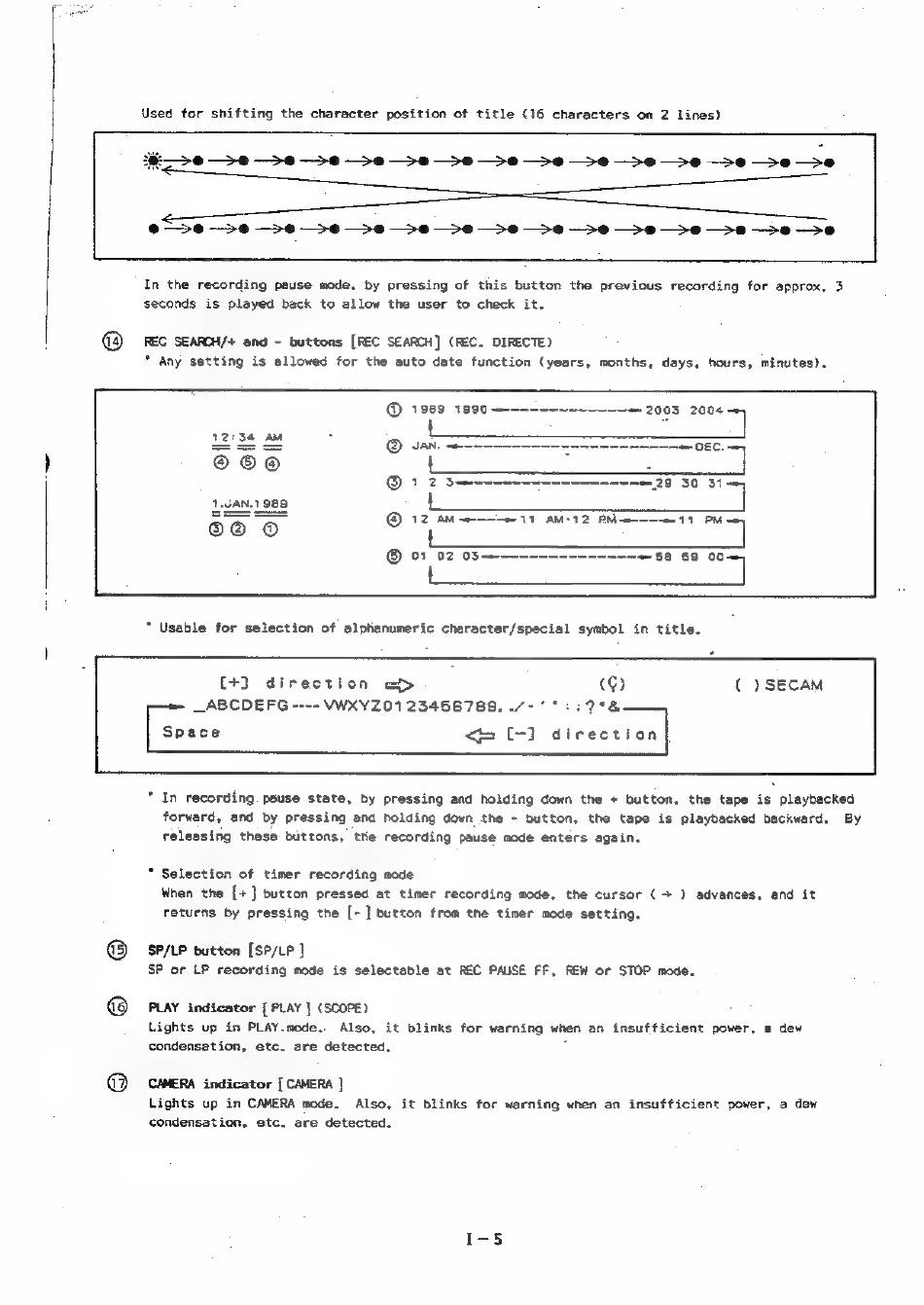

Canon Canovision8 E50E Service Manual page 37

Used for shifting the character position of title (16 characters on 2 lines)
ma >O —>e -># —>e Se ee eo - Se > e > e > eo > e - eo eo ee
et >e -—->e@ —>e —>*e eo > e ee > 0 - > 8 - > 0 > e > oe 8 Pe - 0
In the recording pause mode, by pressing of this button the previous recording for approx. 3
seconds is played back to allow the user to check it.
REC SEARCH/+ and - buttons [REC SEARCH] (REC. DIRECTE)
* Any setting is allowed for the auto date function (years, months, days, hours, minutes).
@ 1988 1990 ——~--~~~~--~~.
: L
@® van. —---------.
{
@®123—
© 12 AM mee 11 AMS 42 PM mene 11 PM ey
© 01 02 03—------—-----~-~=— 568 569 00—
be
Usable for selection of alphanumeric character/special symbol in title.
(+] direction e&D> (G) ( )SECAM
_ABCDEFG ---- VWWXYZ01 23456789, /- °° ::27°%
Space <= [-] direction
In recording. pause state, by pressing and holding down the + button, the tape is playbacked
forward, and by pressing and holding down the - button, the tape is playbacked backward. By
releasing these buttons, the recording pause mode enters again.
Selection of timer recording mode
When the [+] button pressed at timer recording mode, the cursor (+) advances, and it
returns by pressing the [-] button from the timer mode setting.
SP/LP button [SP/LP ]
SP or. LP recording mode is selectable at REC PAUSE FF, REW or STOP mode.
PLAY indicator [ PLAY } (SCOPE)
Lights up in PLAY.mode.. Also, it blinks for warning when an insufficient power, a dew
condensation, etc. are detected. .
CAMERA indicator [ CAMERA ]
Lights up in CAMERA mode. Also, it blinks for warning when an insufficient power, a dew
condensation, etc. are detected.
