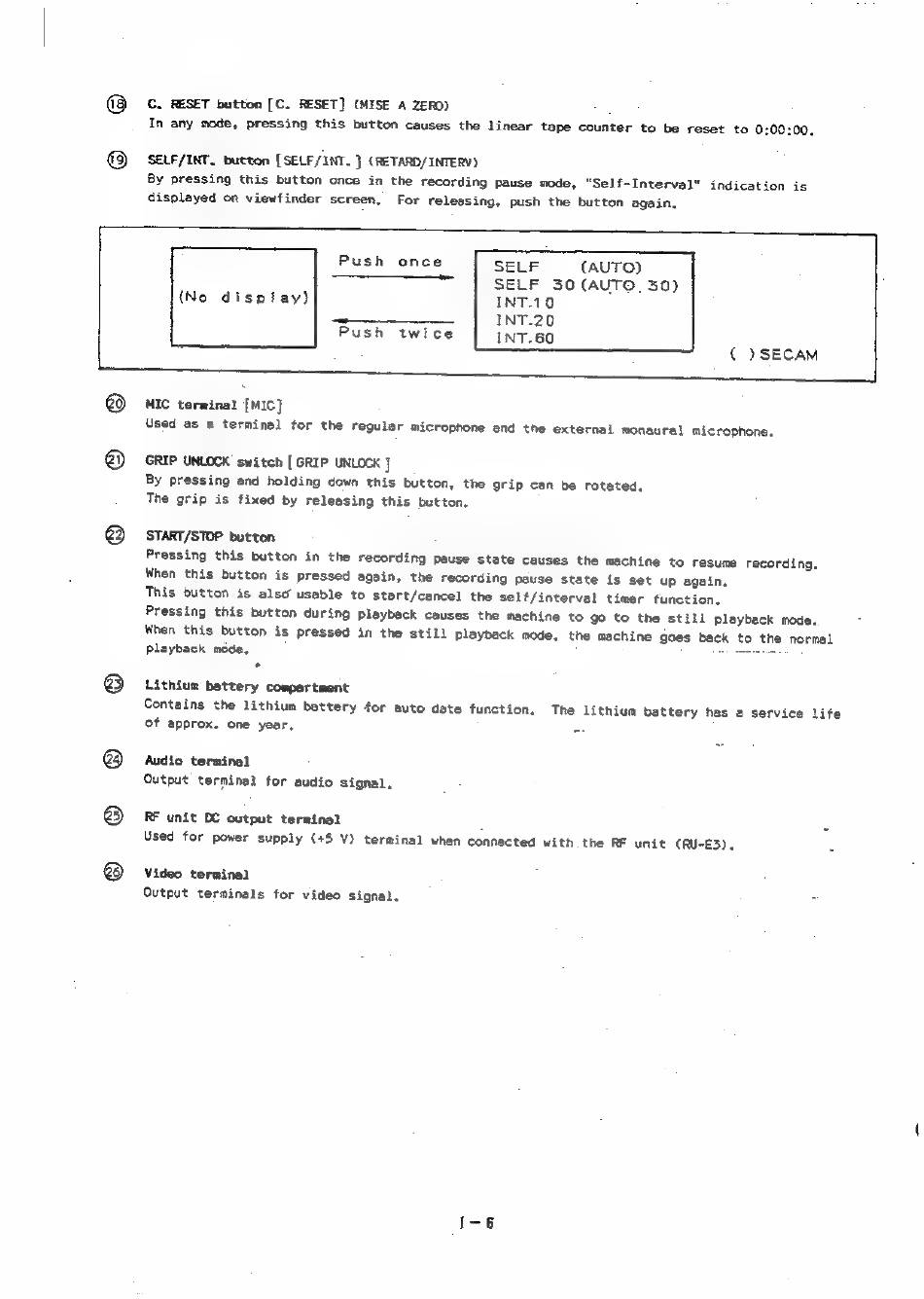

C. RESET button [C. RESET] (MISE A ZERO)
In any mode, pressing this button causes the linear tape counter to be reset to 0:
200,
SELF/INT. button [SELF/INT. ] (RETARD/INTERV)
By pressing this button once in the recording pause mode, "Self~Interval" indication is
displayed on viewfinder screen,
For relessing, push the button again.
Push once SELF (AUTO)
Fs SELF 36 (AUTO. 30)
(No
dispiay)
INT.10
———_____ INT.20
Push twice INT.60
( )SECAM
MIC terminal [MIC]
GRIP UNLOCK switch [GRIP UNLOCK j
By pressing and holding down this button, the grip can be rotated,
The grip is fixed by releasing this button.
START/STOP button
Lithium battery compartment
Audio terminal
Output terminal for audio signal.
RF unit DC output terminal
Used for
power
supply
(+5 V) terminal
when connected
with
the
RF unit
(RU-E3),
Video terminal
Output terminals for video signal.
=
