Canon Canovision8 E50E Service Manual page 16

REF .No.D15-3230,3270

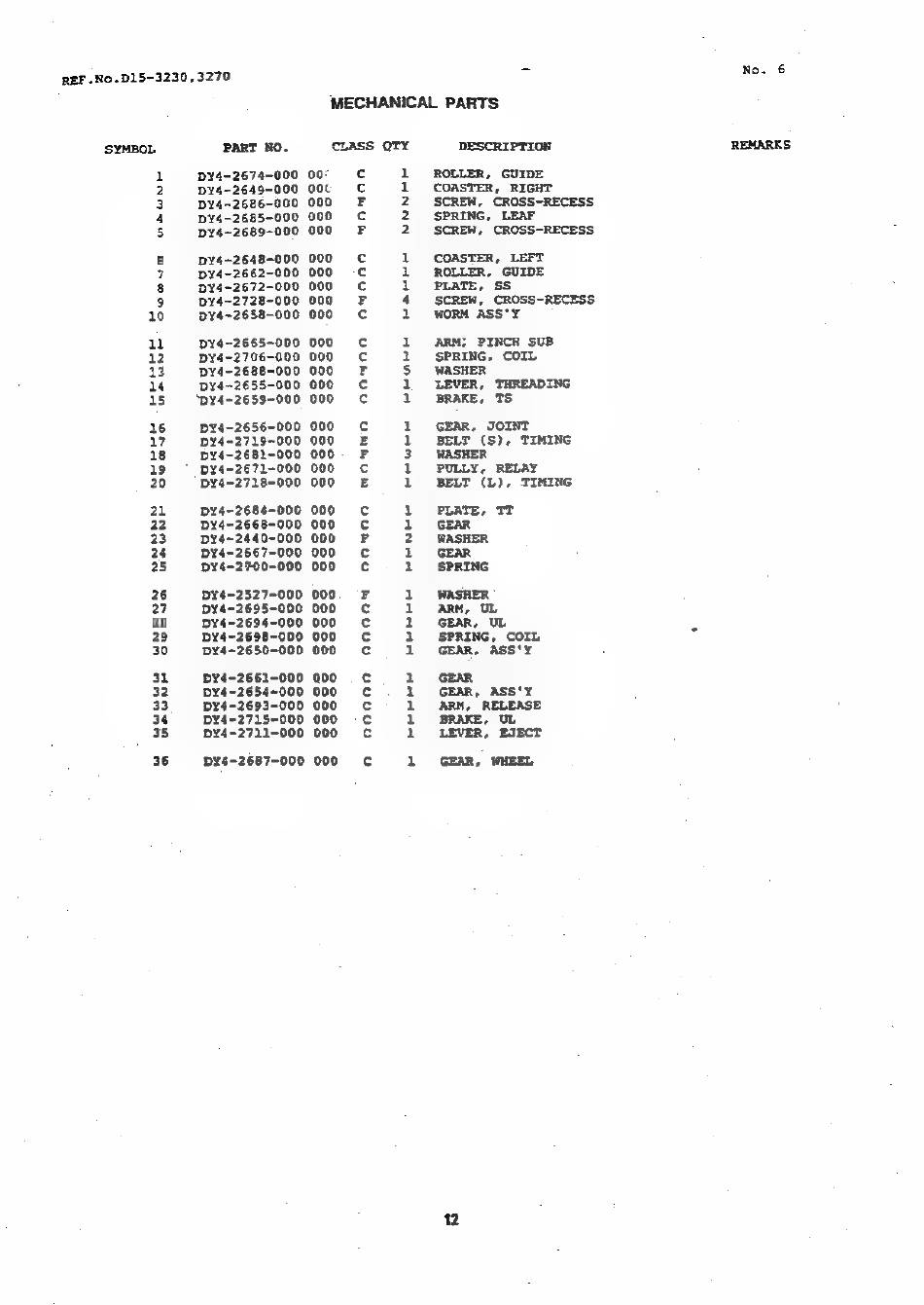

MECHANICAL PARTS
SYMBOL PART NO. CLASS QTY DESCRIPTION REMARKS
1 DY4-2674-000 00: 1 ROLLER, GUIDE
2 DY4-2649-000 00 1 COASTER, RIGHT
3 DY4-2686-000 000 2 SCREW, CROSS-RECESS
4 DY¥4-2685-000 000 2. SPRING, LEAF
5 DY4~2689-000 C00 2 SCREW, CROSS-RECESS
6 DY4-2648-000 000 1 COASTER, LEFT
7 DY¥4-2662-000 000 1 ROLLER, GUIDE
8 DY4-2672-000 000 1 PLATE, SS
9 DY4~-2728-000 000 4 SCREW, CROSS-RECESS
10 D¥4-2658-000 000 2 WORM ASS'Y
ll DY4-2665-000 000 1 ARM; PINCH SUB
12 DY4-2706-000 000 1 SPRING, COIL
13 DY4-2688-000 000 S WASHER
14 DY4-2655-000 000 1 LEVER, THREADING
15 'D¥4~2659-000 C00 1 BRAKE, TS
16 DY4-2656-000 000
17 DY4-2719-000 000
18 DY4-2681-000 000
19 DY4-2671-000 000
20 DY4-2718-000 000
GEAR, JOINT
BELT (S$), TIMING
WASHER
PULLY, RELAY
BELT (L), TIMING
21 DY4-2684-000 000 PLATE, TT
22 DY4-2668-000 000 GEAR
23 DY4~2440-000 000 WASHER
24 DY4-2667-000 000 GEAR
25 DY4-2700-000 000 SPRING
26 DY4-2527-000 000 WASHER
27 DY4-2695-000 000 ARM, UL
28 DY4-2694-000 000 GEAR, UL
29 DY4-2698-000 000 SPRING, COIL
30 DY4~2650-000 000 GEAR, ASS'Y
31 DY4-2661-000 Qo0
32 DY4-2654~000 000
33 DY4-2693-000 000
34 DY4-2715-000 000
35 DY4-2711-000 000
GEAR
GEAR, ASS'Y
ARM, RELEASE
BRAKE, UL
LEVER, EJECT
A aAnAAA AAAAN NAAN MayHA HAMANN ANAND MOMANn BOR PEE HERE BRN Bee
36 DY4-2687-000 000 GEAR, WHEEL
12
