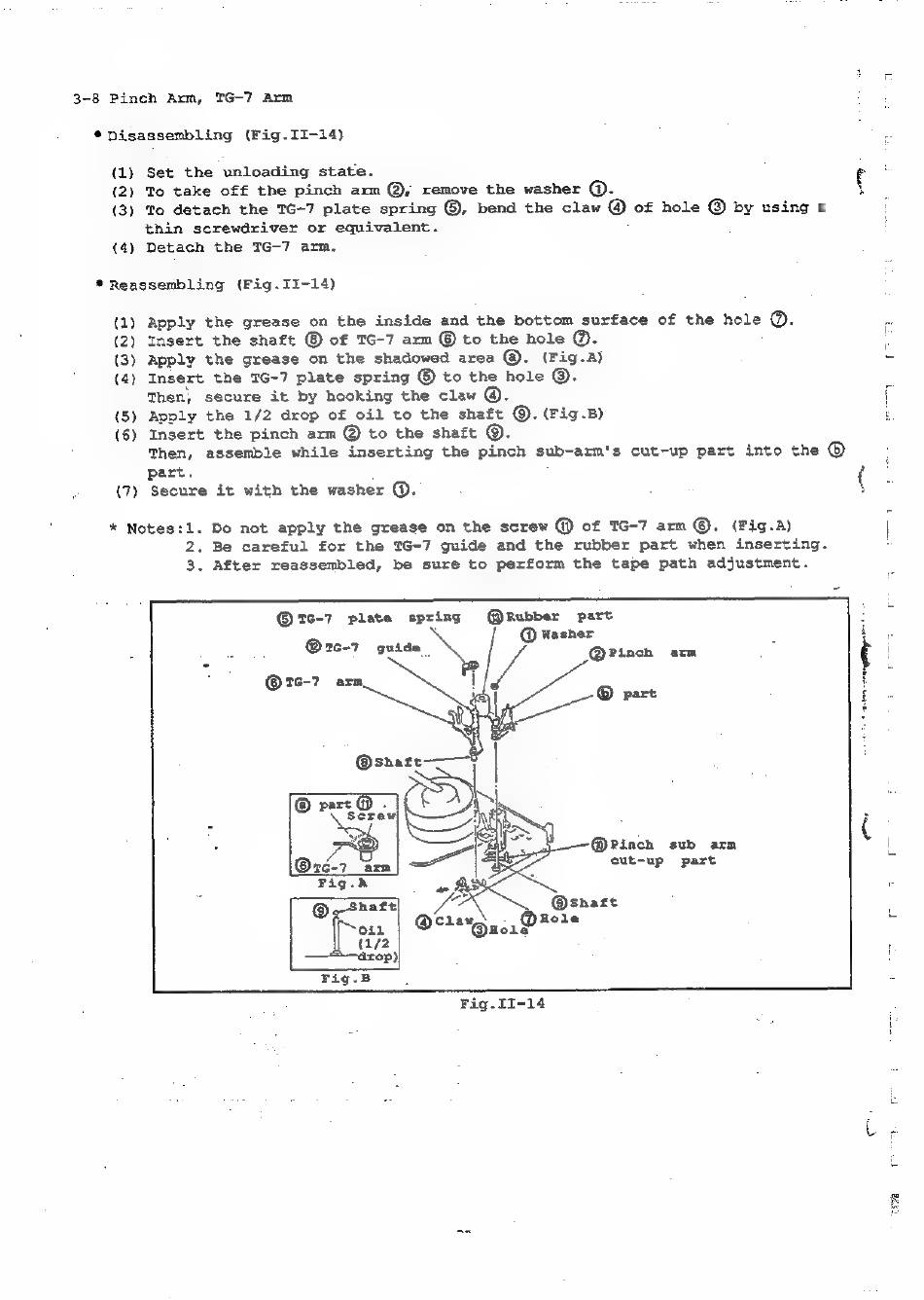

3-8 Pinch Arm, TG-7 Arm
* Disassembling (Fig.II-14)}
(1) Set the unloading state.
(2) To take off the pinch arm @, remove the washer @.
(3) To detach the TG-7 plate spring ®, bend the claw @ of hole © by using a
thin screwdriver or equivalent.
(4) Detach the TG-7 arm.
my
* Reassembling (Fig.II-14)
(1) Apply the grease on the inside and the bottom surface of the hole ®. a
(2) Insert the shaft of TG-7 arm © to the hole @. i
(3) Apply the grease on the shadowed area @. (Fig.A) 2
(4) Insert the TG-7 plate spring ® to the hole ©.
Then; secure it by hooking the claw @. f
(5) Apply the 1/2 drop of oil to the shaft ©. (Fig.B)
(6) Insert the pinch arm @ to the shaft ©.
Then, assemble while inserting the pinch sub-arm's cut-up part into the ®
part. e
(7) Secure it with the washer @. {
* Notes:1. Do not apply the grease on the screw @ of IG-7 arm @. (Fig.A) \
2. Be careful for the TG-7 guide and the rubber part when inserting.
3. After reassembled, be sure to perform the tape path adjustment.
® 6-7 plate spring @Rubber part
@ Washer
@1c-7 guide @Pinch arm
TG-7 arm.
® © part
@Pinch sub arm
eut-up part
Fig. II-14
