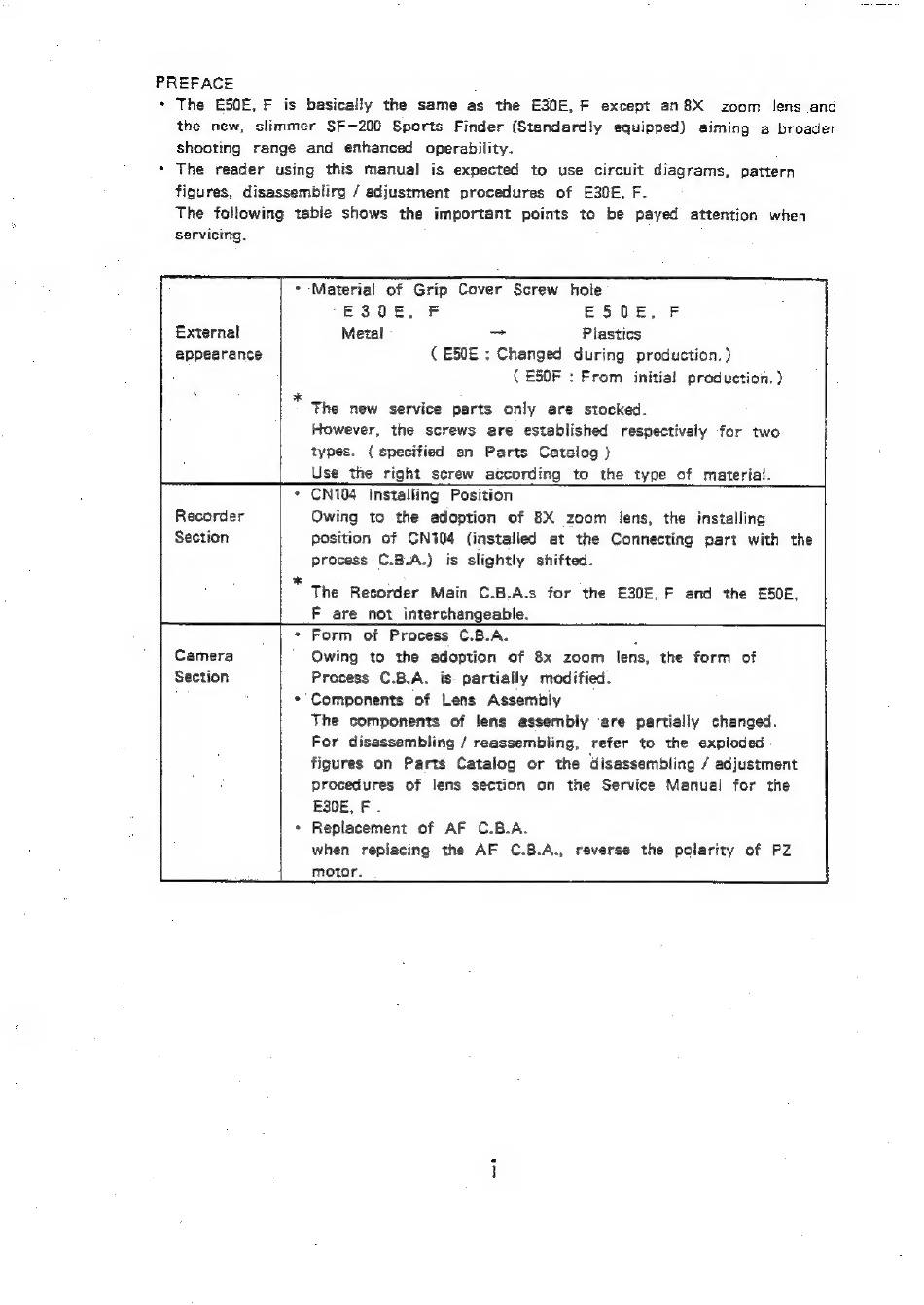

PREFACE
* The ES0E, F is basically the same as the E30E,F except an8X zoom lens and
the new, slimmer SF—200 Sports Finder (Standardiy equipped) aiming a broader
shooting range and enhanced operability.
+ The reader using this manual is expected to use circuit diagrams, pattern
figures, disassemblirg / adjustment procedures of E30E, F.
The following table shows the important points to be payed attention when
servicing.
External
appearance
Recorder
Section
Camera
Section
+ Material of Grip Cover Screw hoie
E305, F ES OE, F
Metal ad Plastics
( E50E : Changed during production.)
( E50F : From initia! production. }
Fhe new service parts only are stocked.
However, the screws are established respectively for two
types. ( specified an Parts Catalog }
Use the right screw according to the type of material.
+ CN104 Installing Position
Owing to the adoption of 8X zoom iens, the installing
position of CNi04 (installed at the Connecting part with the
process C.B.A.) is slightly shifted.
The Recorder Main C.B.A.s for the E30E,F and the ES0E,
F are not interchangeable.
+ Form of Process C.B.A. ;
Owing to the adoption of 8x zoom lens, the form of
Process C.B.A. is. partially modified.
* Components of Lens Assembly
The components of fens assembiy are partially changed.
For disassembling / reassembiing, refer to the exploded.
figures on Parts Catalog or the disassembling / adjustment
procedures of lens section on the Service Manual for the
E30E, F .
+ Replacement of AF C.B.A.
when repiacing the AF C.B.A., reverse the polarity of PZ
motor.
