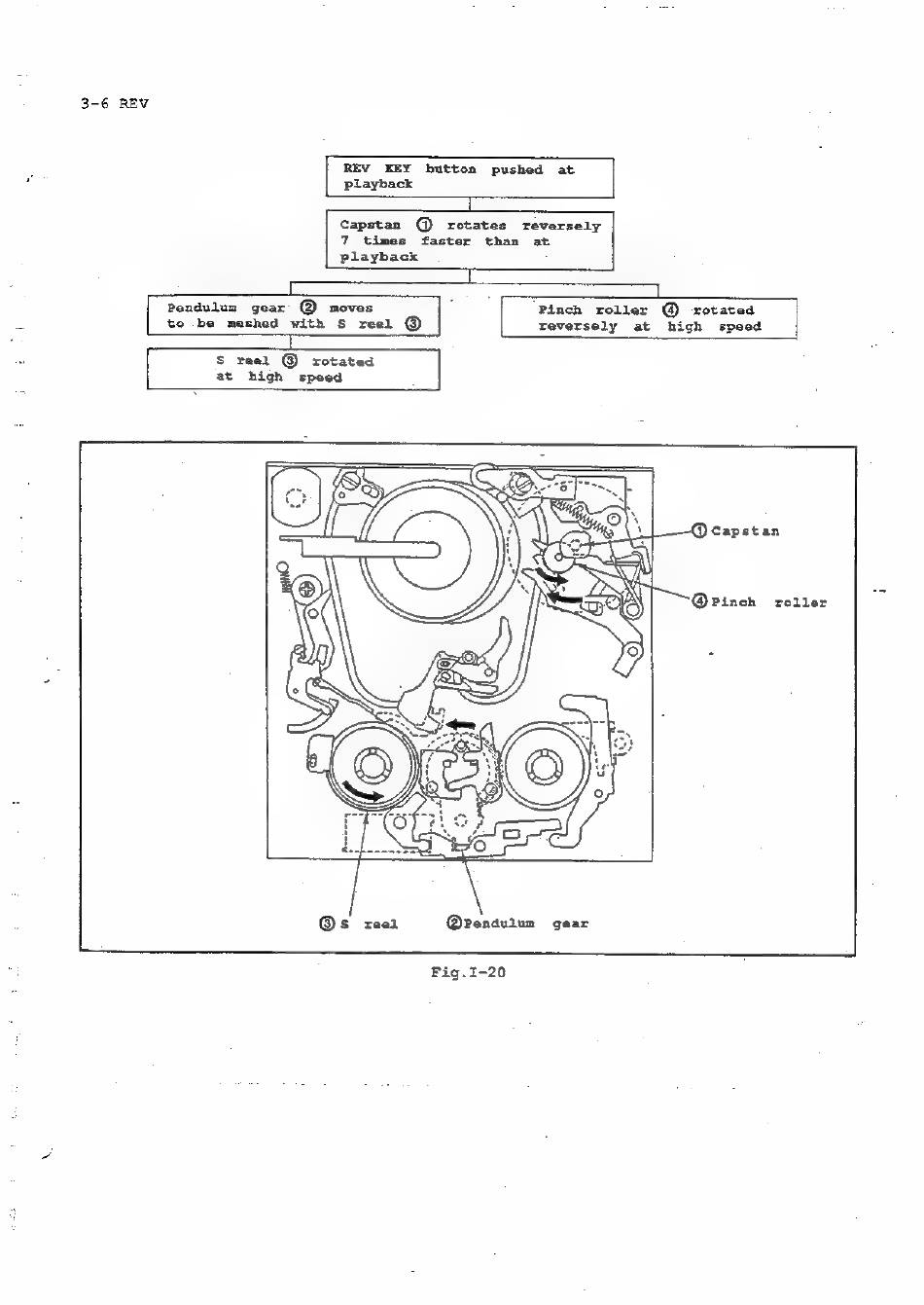

3-6 REV
REV KEY button pushed at
Playback
T
Capstan @ rotates reversely
7 times faster than at
playback
I
[ 3
ii | Pinch roller @ rotated Pendulum gear @ moves
to be mashed with S reel @ reversely at high speed
$ reel @ rotated |
at high speed
@ capstan
@pinch roller
@®s reel @rendulum gear
Fig.i-20
