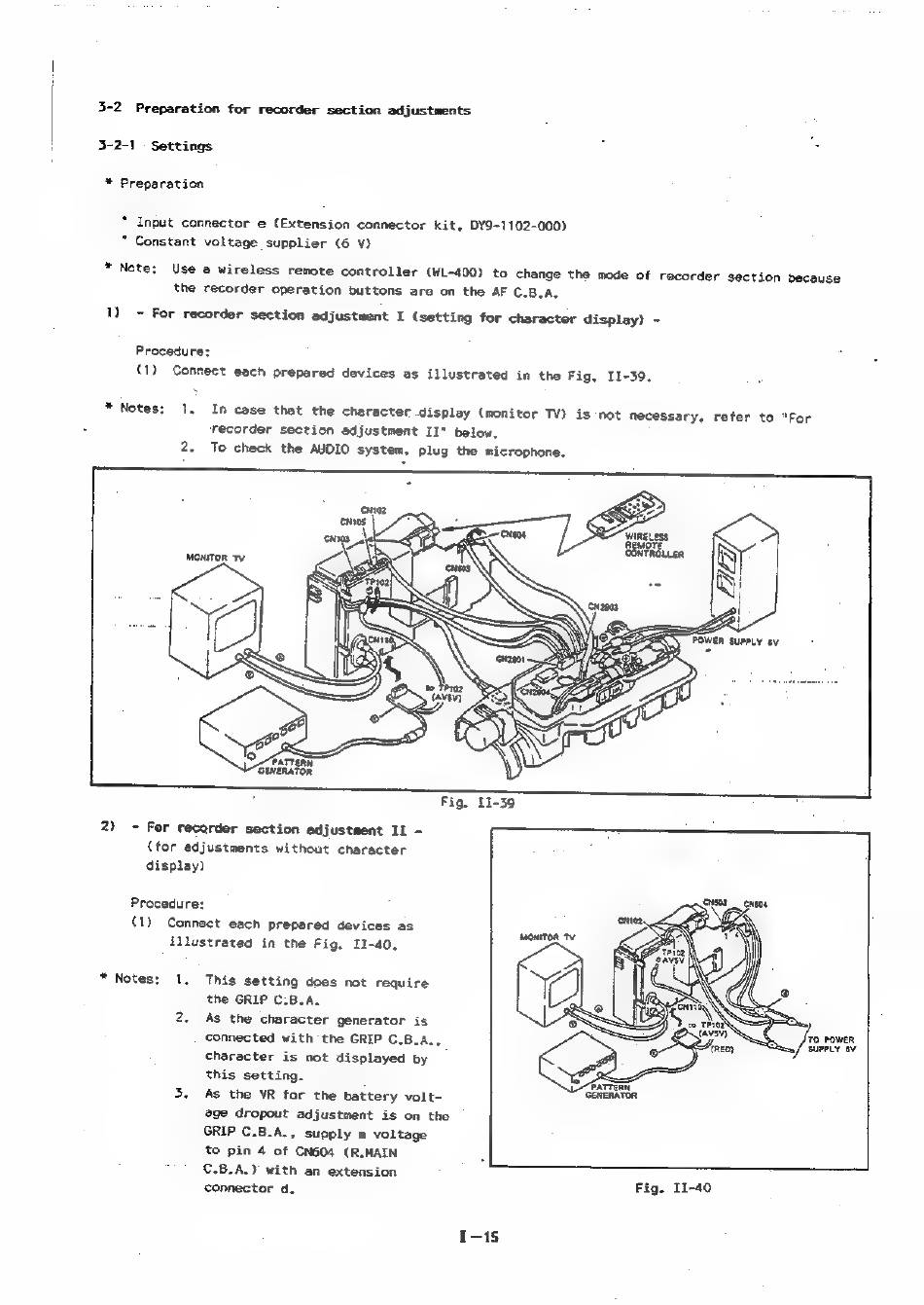

3-2 Preparation for recorder section adjustments
3-2-1 Settings
* Preparation
° Input connector e (Extension connector kit, DY9-1102-000)
° Constant voltage supplier (6 Vv)
wir
REMOTE
INTROLLER
N62
PATTERN
GENERATOR
2) - For recorder section adjustment II -
(for adjustments without character
display)
Procedure:
(1) Connect each prepared devices as
illustrated in the Fig, II-40.
* Notes: 1, This setting does not require
the GRIP C.B.A.
2. As the character generator is
connected with the GRIP C.B.A.,
character is not displayed by
this setting.
3. As the VR for the battery volt-
age dropout adjustment is on the
GRIP C.B.A., supply a voltage
to pin 4 of CN604 (R.MAIN
€.8.A,) with an extension
connector d.
Pigs diag)
'Tro PoweR
= / SUPPLY 6V
ey
PATTERN
GENERATOR
1-18
