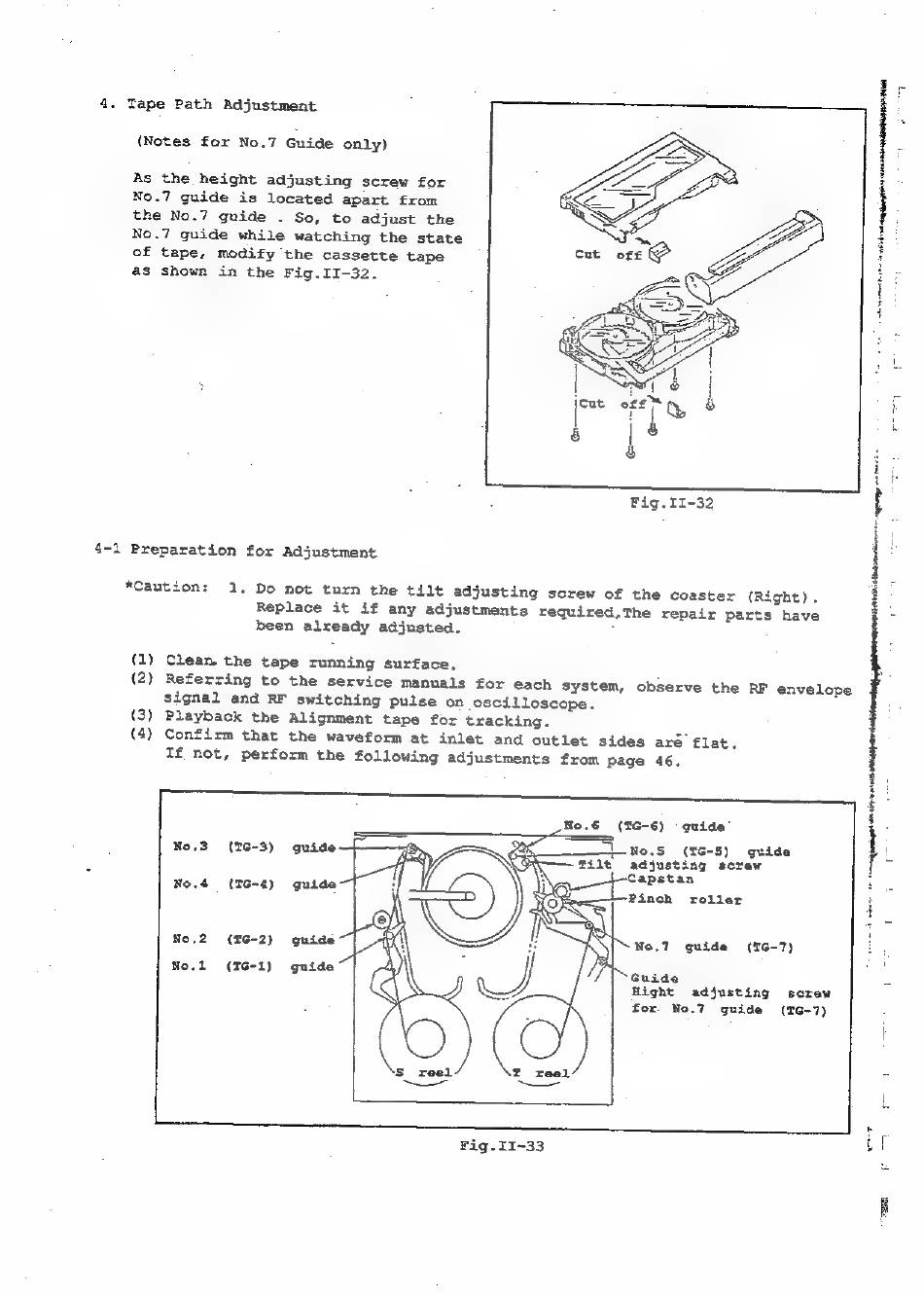

4. Tape Path Adjustment
(Notes for No.7 Guide only)
As the height adjusting screw for
No.7 guide is located apart from
the No.7 guide . So, to adjust the
No.7
guide
while
watching
the
state
of tape, modify the cassette tape
as shown in the Fig.II-32.
4-1 Preparation for Adjustment
Fig. 11-32
Replace it if any adjustments re
been already adjusted.
(1) Clean the tape running surface.
(2)
Referring
to the
service
manuals
for each
system, observe the RF envelope
If not, perform the following adjustments
(TG-6)
guide
No.3 (%G-3) guide
No.4 (TG-4) guide
No.2 (96-2) guide
No.l (TG-1) guide
adjusting screw
Capstan
Pinch roller
Guide
Hight adjusting
for No.7 guide
Fig.II-~33
No.5 (TG-5) guide
No.7 guide (1TG-7)
screw
(TG-7)
t
1 Sot yap nts ea Ht
ghaninget iim
5)
