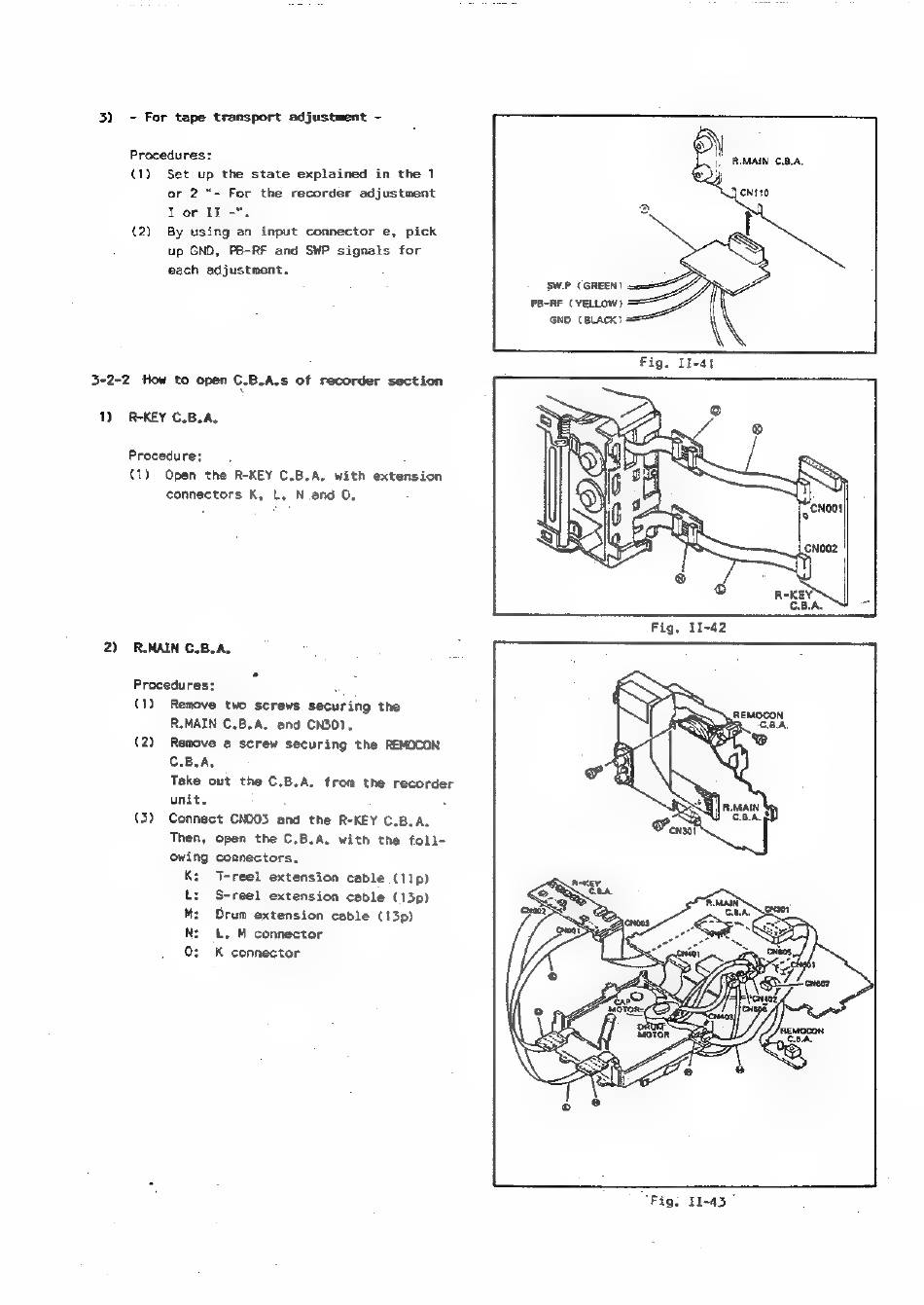

3) - For tape transport adjustment -
Procedures:
(1) Set up the state explained in the 1
or 2 "- For the recorder adjustment
Tor II -".
(2) By using an input connector e, pick
up GND, P8-RF and SWP signals for
each adjustment.
3-2-2 How to open C.B.A.s of recorder section
1) R-KEY C.B.A,
Procedure;
(1) Open the R-KEY C.B.A, with extension
connectors K, L, N and 0.
2) RMAIN C.B.A.
Procedures: .
(1) Remove two screws securing the
R.MAIN C.B.A. and CN301,
(2) Remove a screw securing the REMOCON
C.B.A.
Take out the C.B.A. from the recorder
unit.
(3) Connect CNOO3 and the R-KEY C.B.A.
Then, open the C.B.A. with the foll-
owing connectors.
K: T-reel extension cable (11p)
t: S-reel extension cable (13p)
M: Orum extension cable (13p)
Nz: £, M connector
0: K connector
SW.P (GREEN)
PB-RE (YELLOW)
GND (BLACK?
"Fig. 11-43"
