Canon Canovision8 E50E Service Manual page 76

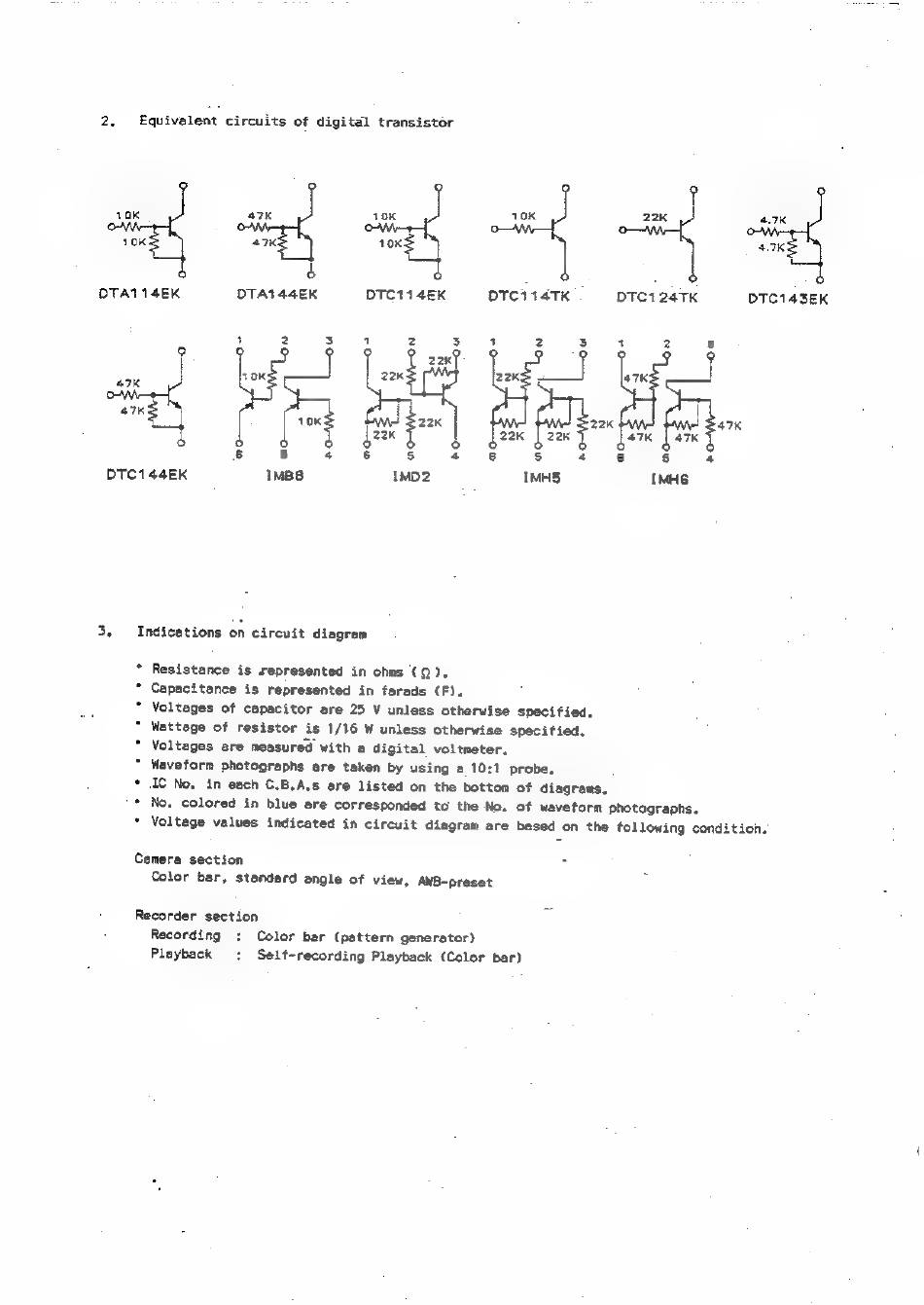

2. Equivalent circuits of digital transistor
10k 47k 10K 10K 22k 4.7K
10k 47K: 10KS 4.7K
é
3
:
:
.
DTA114EK DTA144EK DTC114EK DTC114TK DTC124TK DTC143EK
1 2 3 1 2 31 2 3
Ok, 22k: a 47K:
47K
18 10k 22k 47K
22k | 22k 47K | 47K
6 s 4 8 5 4 6 8 4
DTC144EK IMBB IMH5 IMH6&
3, Indications on circuit diagram
° Resistance is represented
in ohms (Q).
Capacitance is represented in farads (F).
Voltages of capacitor are 25 V unless otherwise specified.
* Wattage of resistor is 1/16 W unless otherwise specified.
* Voltages are measured with a digital voltmeter.
° Waveform photographs are taken by using e 10:1 probe.
* IC No, in each C.B.A.s are listed on the bottom of diagrams.
Camera section
Color bar, standard angle of view, AWB-preset
Recorder section
Recording : Color bar (pattern generator)
Playback ©: Self-recording Playback (Color bar)
