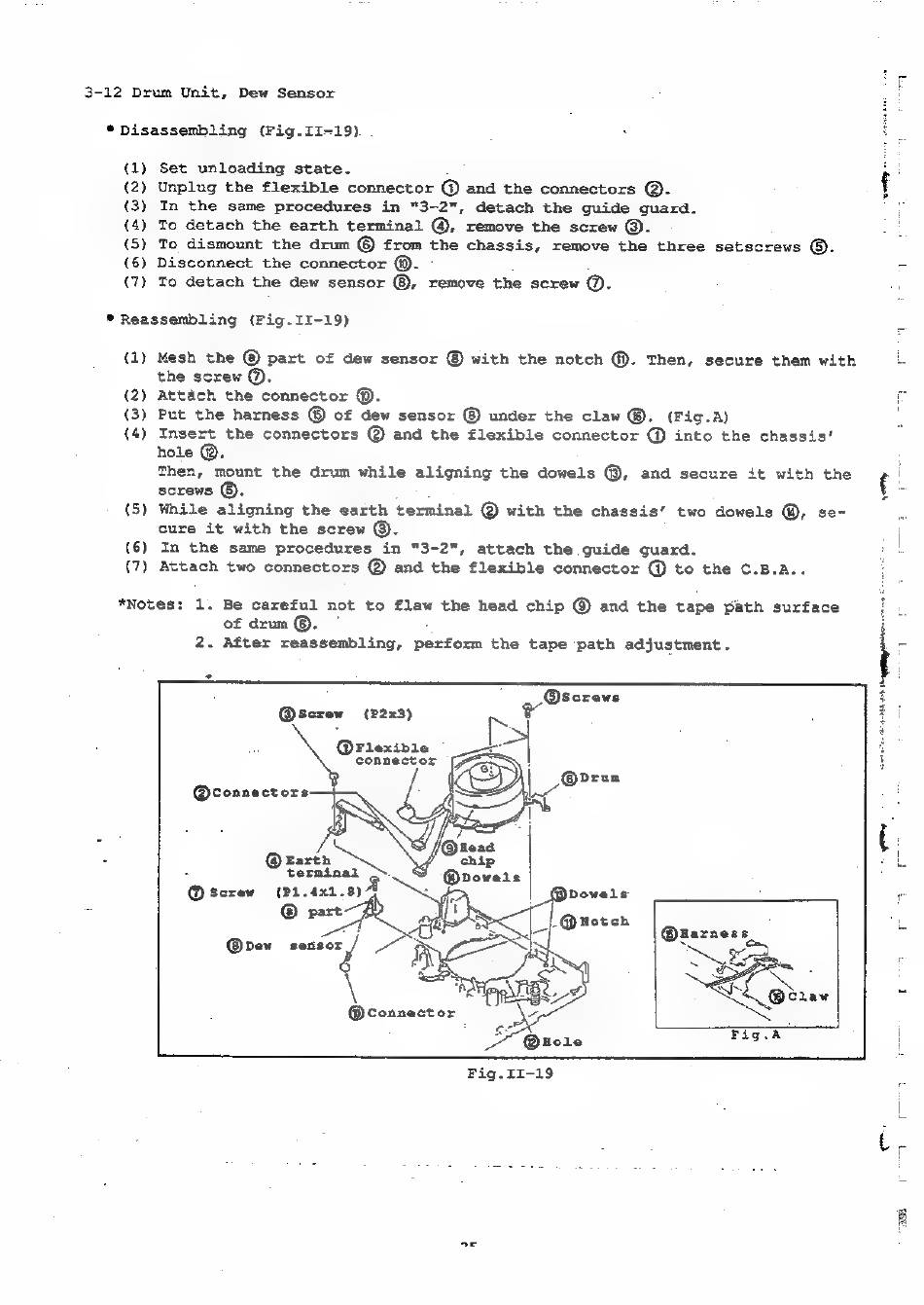

3-12 Drum Unit, Dew Sensor
* Disassembling (Fig.II-19).
ql)
(2)
(3)
(4)
(S)
(6)
(7)
Set unloading state.
Unplug the flexible connector @ and the connectors @.
In the same procedures in "3-2", detach the guide guard.
To detach the earth terminal @, remove the screw @.
To dismount the drum © from the chassis, remove the three setscrews ©).
Disconnect the connector @. —
To detach the dew sensor ©, remove the screw @.
* Reassembling (Fig.II-19)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Mesh the part of dew sensor with the notch @). Then, secure them with
the screw &.
Attach the connector ©.
Put the harness @ of dew sensor under the claw @. (Fig.A)
Insert the connectors @ and the flexible connector @ into the chassis'
hole @.
Then, mount the drum while aligning the dowels ®, and secure it with the
screws ©.
While aligning the earth terminal @ with the chassis' two dowels @, se-
cure it with the screw ©.
In the same procedures in "3-2", attach the guide guard.
Attach two connectors @ and the flexible connector @ to the C.B.A..
*Notes: 1. Be careful not to flaw the head chip and the tape path surface
of drum ©.
2. After reassembling, perform the tape path adjustment.
@screw (P2x3)
@Flexible
connector
@connectors
Barth
® terminal
@ screw (P1.4x1.8)
@ part
a,
@dew suite —
\ 3
| ®Harness
sy
eentty -
