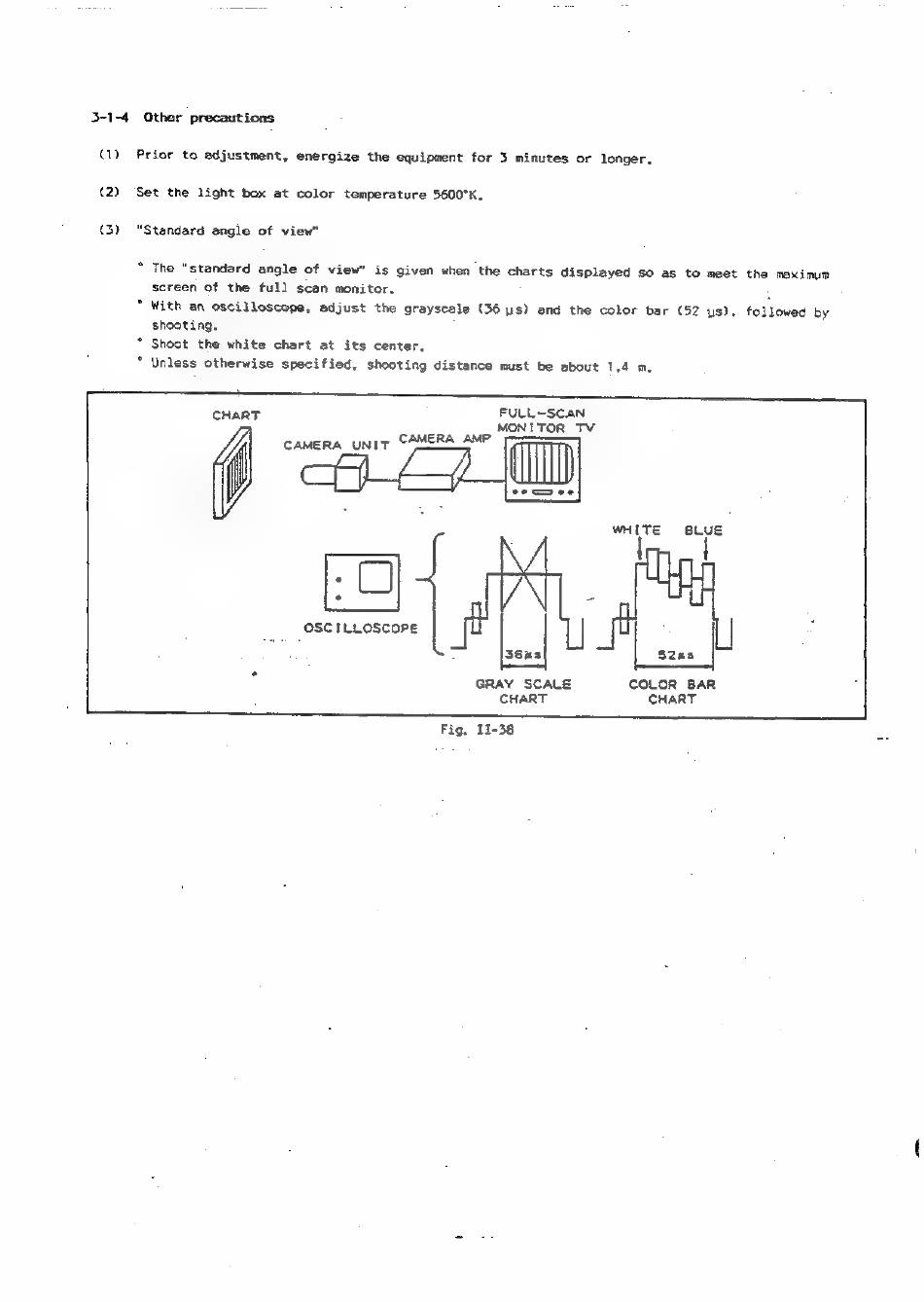

Canon Canovision8 E50E Service Manual page 58

3-1-4 Other precautions
(1) Prior to adjustment, energize the equipment for 3 minutes or longer.
(2) 'Set the light box at color temperature 5600°K.
(3) "Standard angle of view"
With an oscilloscope, adjust the grayscale (36 us) end the color bar (52 ys), followed by
shooting.
Shoot the white chart at its center.
Unless otherwise specified, shooting distance must be about 1.4 m.
CHART FULL—-SCAN
Ap MONITOR TV
OSCILLOSCOPE
3Sus S2as
GRAY SCALE COLOR BAR
CHART CHART
Fig, 1i-38
