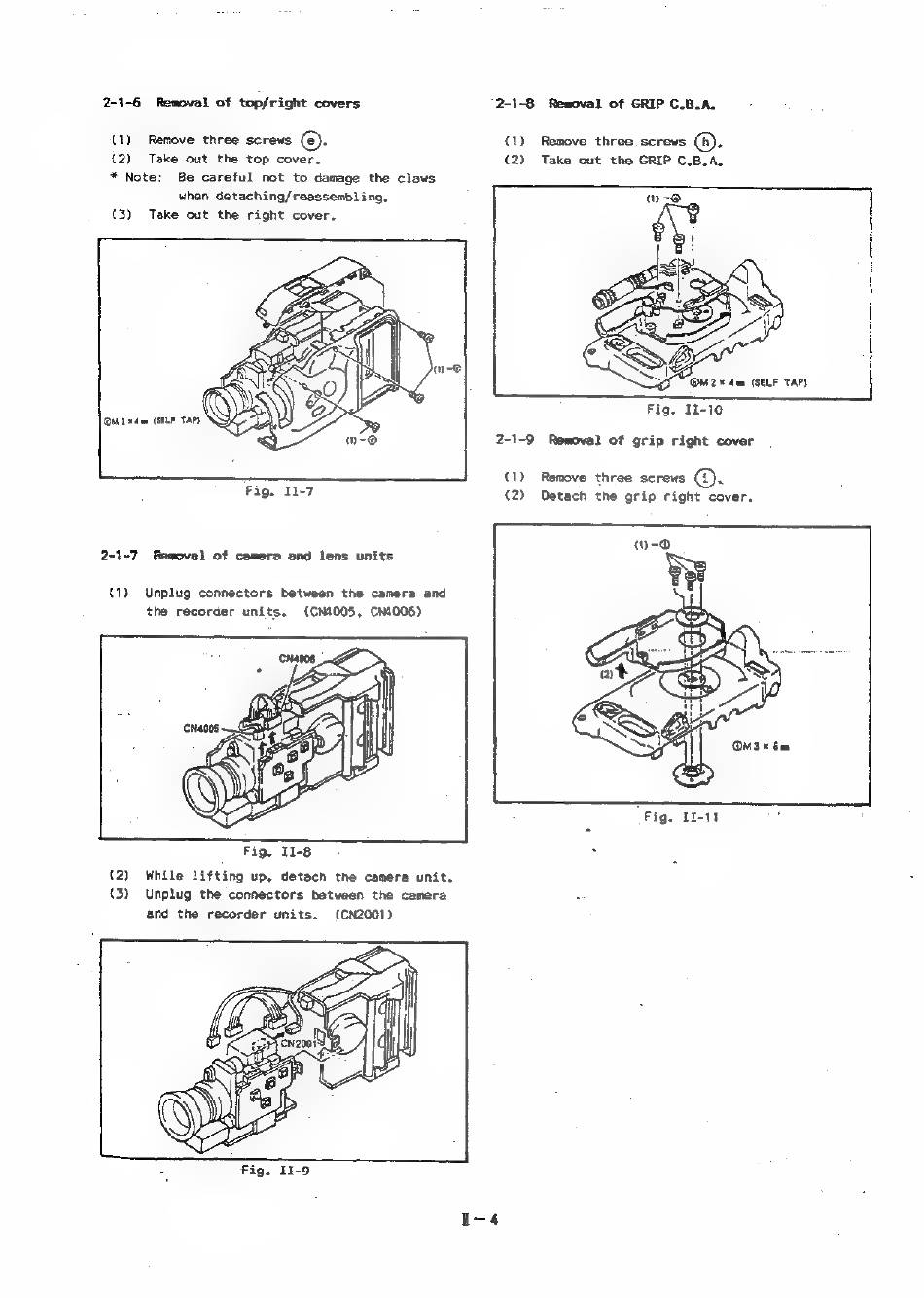

Removal Of Top/Right Covers; Removal Of Camera And Lens Units; Removal Of Grip Right Cover - Canon Canovision8 E50E Service Manual

2-1-6 Removal of top/right covers 2-1-8 Removal of GRIP C.B.A.
(1) Remove three screws (©). (1) Remove three screws (h).
(2) Take out the GRIP C.B.A.
(2) Take out the top cover,
* Note: Be careful not to damage the claws
when detaching/reassembl ing,
(3) Take out the right cover.
Fig. I1-10
M2 ede (SELF TAP}
2-1-9 Removal of grip right cover
(1) Remove three screws (@).
Fig. 11-7 (2) Detach the grip right cover,
2-1-7 Removal of camera and lens units
(1) Unplug connectors between the camera and
the recorder units. (CM1005, CN4006)
OM3* ban
Fig. I1-11
Fig. 11-8
(2) While lifting up, detach the camera unit.
(3) Unplug the connectors between the camera
and the recorder units. (CN2001)
