Step 1- Internal Connections

Determine the required RF hardware configuration and confirm the internal connections
correspond to the instructions below. To access the internal connections, unscrew the four
corner thumbscrews of the top panel and remove it.

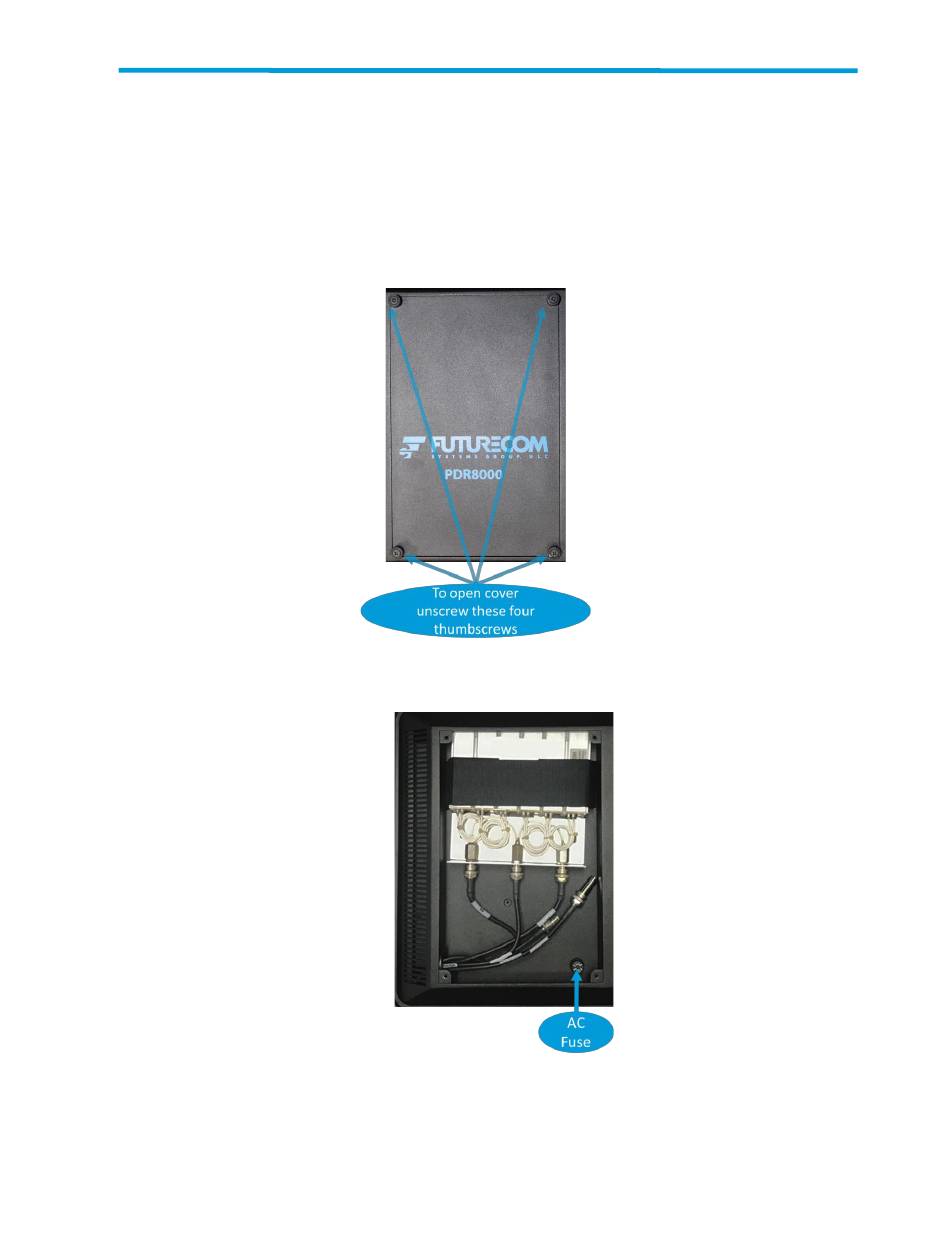

Figure 6 - Removable Top Panel

Figure 7 - Top Panel Removed
