PDR8000® Portable Digital Repeater and Booster Pack Deployment Guide

Step 7 - Open/Closed Case Operation

PDR8000 has been designed to support both open-case and closed-case operation. When
operating closed-case, the PDR8000 should be standing on its hinged side, allowing the case to
provide better cooling efficiency. When operating open-case (providing the best cooling
capability), the PDR8000 is to be placed flat on its large surface. Note that the PDR8000 is not
water resistant when operating open-case.

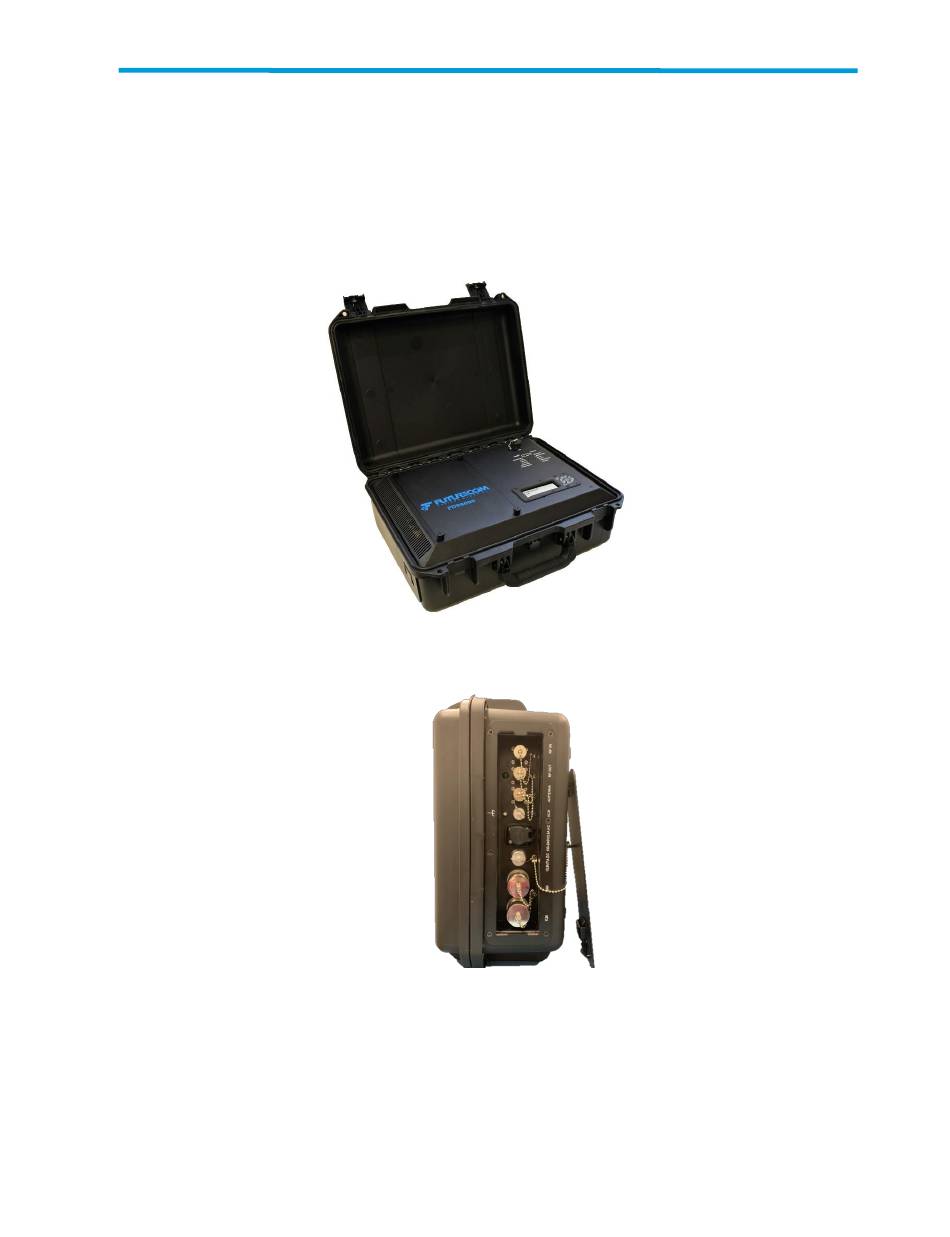

Figure 24 - Open case operation

Figure 25 - Closed case operation

December 2023
Page 23 of 35
