PDR8000® Portable Digital Repeater and Booster Pack Deployment Guide
Configuration 3 – PDR8000 External Duplexer with Booster
Pack Configuration
Step 1 – Preparing PDR8000 for Booster Pack
Use this configuration when PDR8000 has an external duplexer
in a full duplex operation with a single antenna. The following steps shall be followed in
sequence and is depicted in Figure 34.
1. On PDR8000, open the top panel cover as shown in Figure 6 and Figure 7
2. Connect RF cable labelled TX to the cable labelled RF OUT
3. Connect RF cable labelled RX to the cable labelled RF IN using a female-female adapter
4. Close the top panel cover

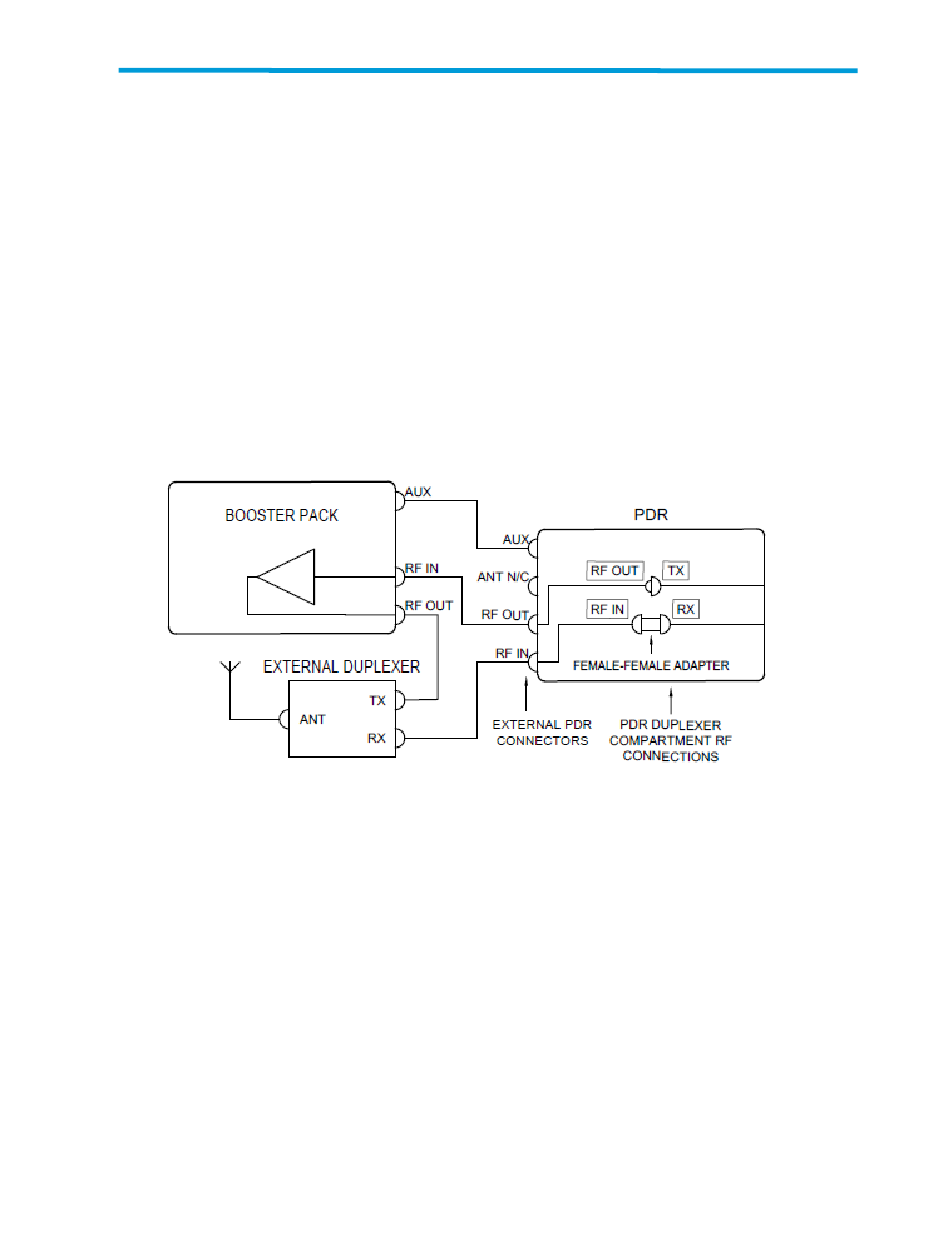

Figure 34 - External Duplexer and Booster Pack Hardware Configuration

Note 1: If the PDR8000 Duplexer is changed, the 'Duplexer Losses' field values in FRC must be verified to match the 'Duplexer
Losses' reading on the Duplexer's Label (for Motorola Duplexers). For Duplexers from different manufacturer, please refer to the
manufacturer's specification for Duplexer losses and enter them into the FRC 'Duplexer Losses' fields. To make this easier, it is
possible to create different 'Deployment Profiles' for each duplexer (if multiple Duplexers are being used). The user then has to
merely select the appropriate Deployment Profile when inserting a different Duplexer. (Refer to PDR8000 Programming Guide
8K088X04).
December 2023
Document 8K088X03 R5.04
Note 1
and is intended to be used
Page 31 of 35
