PDR8000® Portable Digital Repeater and Booster Pack Deployment Guide
Step 5- Power Up Confirmation
If the PDR8000 successfully powers up, the fan will start running and the POWER LED in the
bottom right corner of the LED panel will turn on.

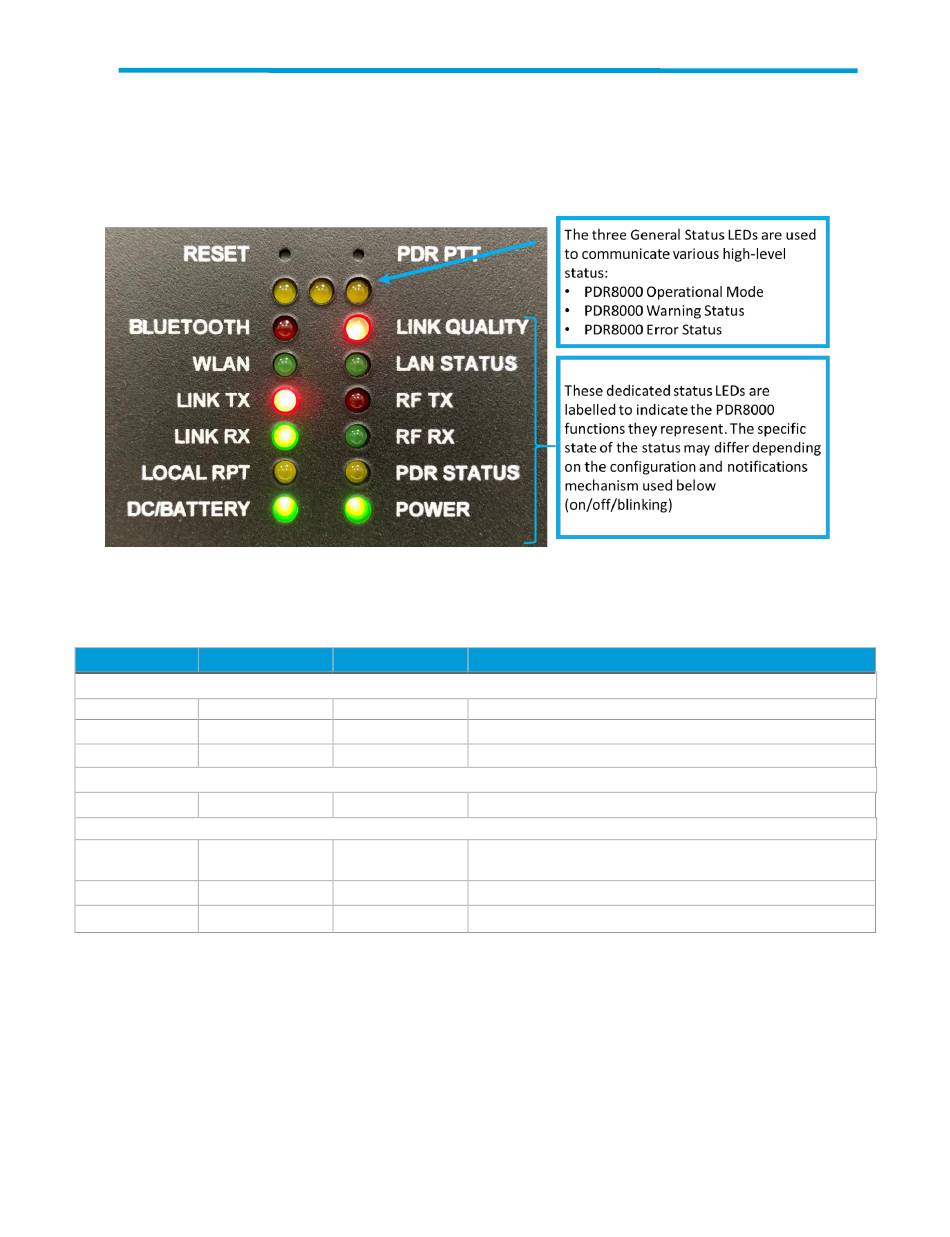

Figure 18 - PDR8000 LED Panel
The following table contains the General Status LED state definitions.
LED 1
LED 2
LED 3
Status Description
PDR Operational Modes
OFF
OFF
OFF
In Normal mode - No errors or warnings
ON
In Fallback In-Cabinet Repeat (FBICR) Mode
ON
In Service Mode
PDR Error Status
FLASH FAST
Internal Software Image Error
PDR Warning Status
FLASH
Real Time Clock Battery Alarm
FAST
FLASH SLOW
Low Transmit Power Alarm
FLASH SLOW
Temperature Alarm
Figure 19 - General LED Status Definitions
