PDR8000® Portable Digital Repeater and Booster Pack Deployment Guide

Configuration 1 - Simplex with Booster Pack Configuration

Step 1 – Preparing PDR8000 for Booster Pack
Use this configuration when PDR8000 does not have a duplexer and is intended to be used in a
Simplex operation with a single antenna. The following steps shall be followed in sequence and
is depicted in Figure 30.
1. On PDR8000, open the top panel cover as shown in Figure 6 and Figure 7
2. Connect RF cable labelled TX to RF Cable Labelled ANT using a female-female adapter
as shown in Figure 30
3. Close the top panel cover

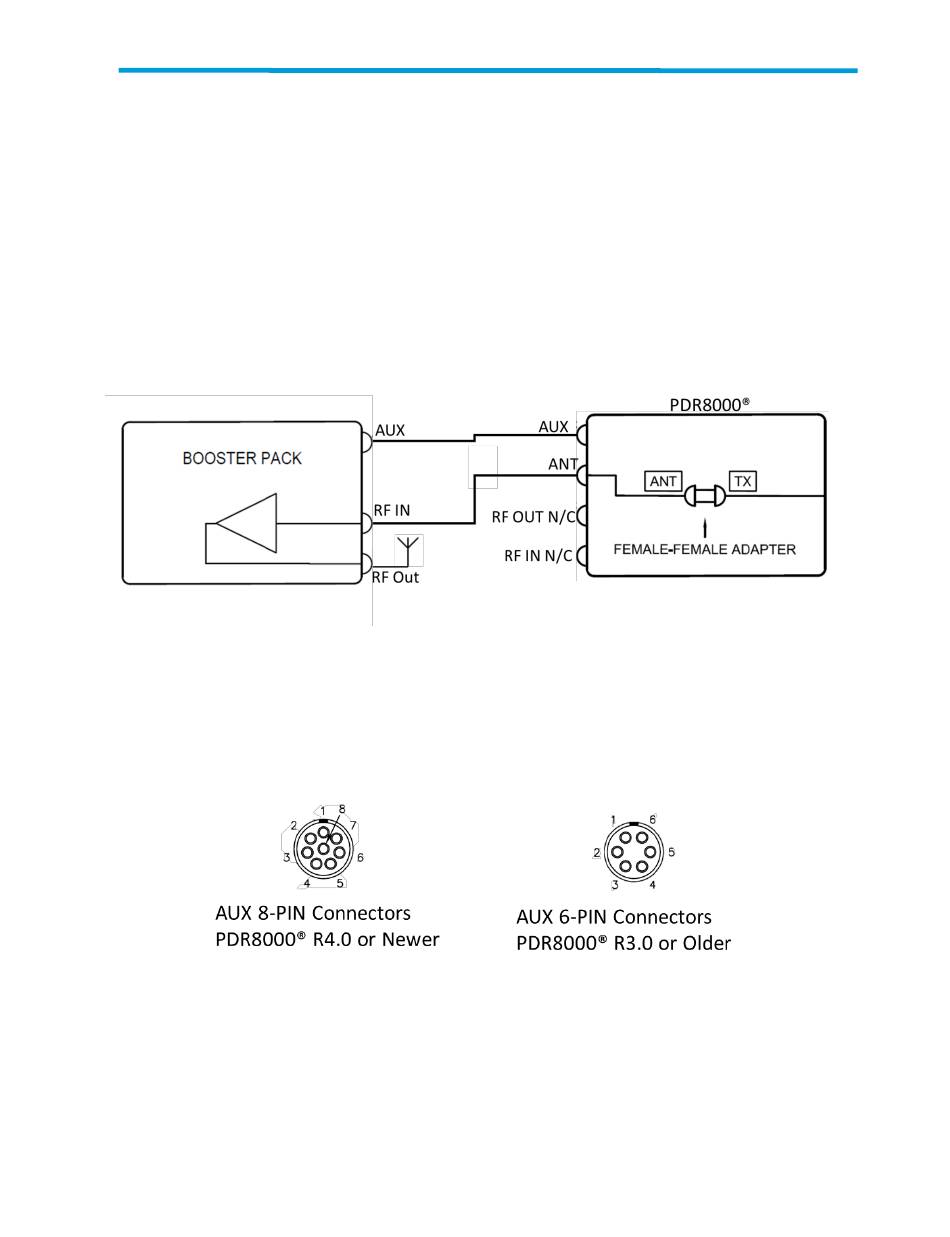

Figure 30 - PDR8000 Simplex with Booster Pack Configuration

Step 2 – Connect the AUX Cable
The AUX cable is used for PDR8000 to detect and communicate with the Booster Pack.
Depending on the revision of PDR8000, the AUX connector on the side panel may have either a
6-PIN or 8-PIN connector as shown in Figure 31.

Figure 31 - 8-PIN or 6-PIN PDR8000 AUX Connector

1. Connect the AUX cable to PDR8000 using the appropriate connector option (either 6-
PIN or 8-PIN)
2. Connect the other end of the AUX cable to Booster Pack AUX connector (8-PIN)
