Figure 23 - Pdr8000 Keypad/Display - Futurecom PDR8000 Deployment Manual

Document 8K088X03 R5.04
PDR8000® Portable Digital Repeater and Booster Pack Deployment Guide

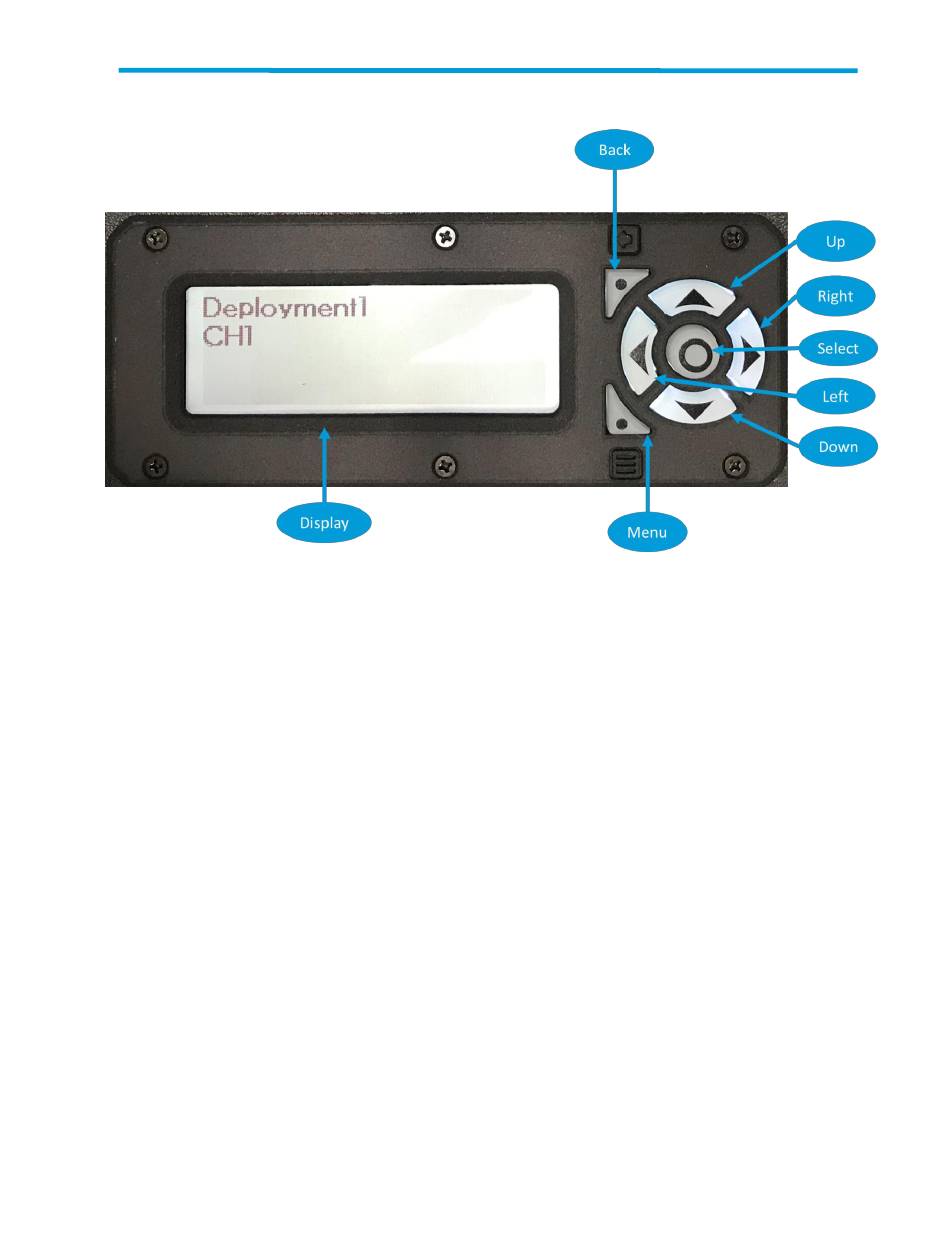

Figure 23 - PDR8000 Keypad/Display

The Display Menu may be configured by the PDR8000 configuration utility program known as
the Futurecom Repeater Configurator (FRC). Therefore, any PDR8000 will have the menu
specifically configured for the unit.
The PDR8000 can be configured to protect the access to display/keypad control operation with
a password. If the display/keypad is in locked state, then the user must enter the correct
password to access the menu options using the keypad. The display/keypad switches to the
locked state either by a timeout value or by selecting the LOCK KEYPAD command under
SETTINGS menu.
The repeater may provide Warning messages on line 3 of the display, and Error messages on
line 4. Information pertaining to these messages is provided in the PDR8000 Programming
Guide.
