PDR8000® Portable Digital Repeater and Booster Pack Deployment Guide
Booster Pack External Connections

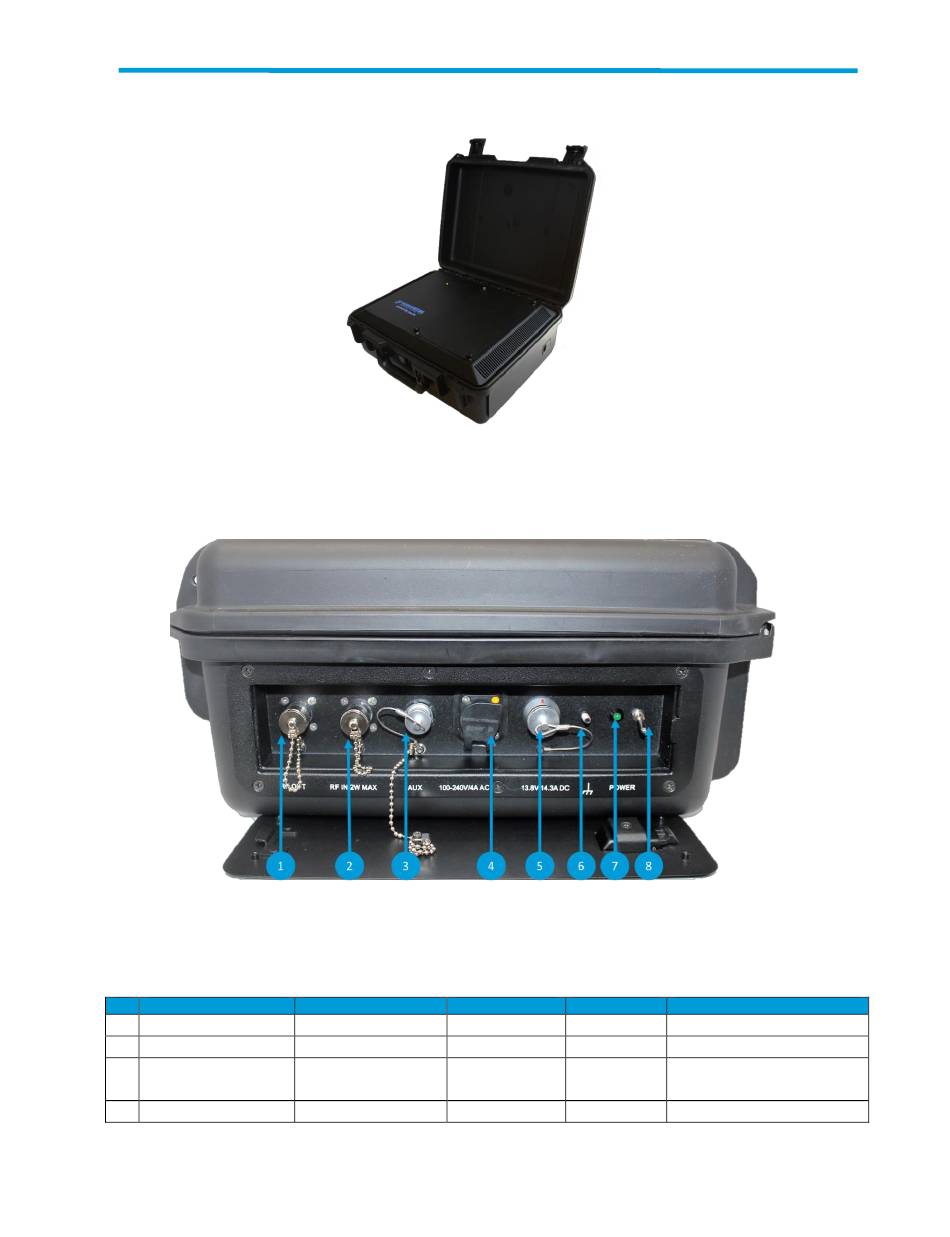

Figure 27 - Booster Pack External Connections
ID
Label
1
RF OUT
2
RF IN
3
AUX
4
100-240V/4A AC
December 2023
Figure 26 - Booster Pack
Type
Manufacturer
N Female
N/A
N Female
N/A
Circular
LEMO
Receptacle
AC Power Input
NEUTRIK
Document 8K088X03 R5.04
Model Ref*
Open/Close Mechanism
N/A
Screw/Unscrew Dust Cap
N/A
Screw/Unscrew Dust Cap
EGG.1K.30
Push Pull Dust Cap
8.CLL
NAC3MPX
Push Pull Sealing Cover
Page 25 of 35
