PDR8000® Portable Digital Repeater and Booster Pack Deployment Guide
•

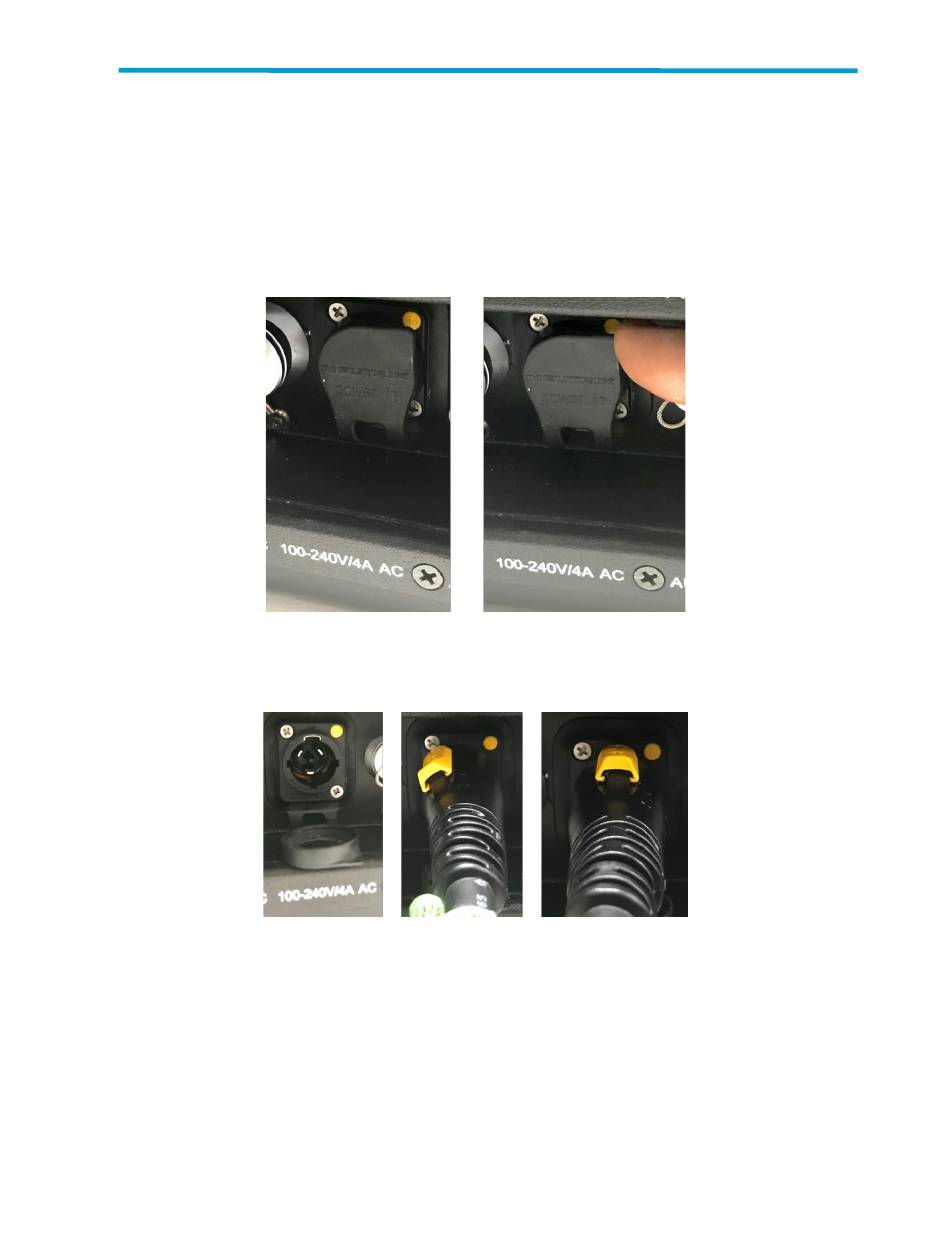

To access the end connector, pull off the dust cover as shown in Figure 16.
•
Insert the cable connector with the yellow release latch at the 11:00 position and twist
clockwise until it locks into place at the 12:00 position. A click will be heard. See Figure
17.
•
Connect the other end of the AC power cable to the AC power supply.
•
To remove the cable, pull the yellow release latch back, twist cable connector counter-
clockwise and then pull the cable out.

Figure 17 - AC Power Connection to PDR8000

Powering Scheme- both AC (100-240V) and DC (13.8V) can be connected simultaneously.
The PDR8000 will dynamically choose the supply with the highest voltage and if one supply
fails, the other will take over with an instant transfer of power.
NOTE: The AC power will not charge the DC battery pack.
December 2023

Figure 16 - Pull AC Power Dust Cover

Document 8K088X03 R5.04
Page 14 of 35
