Power Supply 0130L00293 - Daikin iLINQ Room Terminal Installation & User Manual

Item Description
Temperature & Humidity Probe
1
MicroUSB - Front
2
MicroUSB - Rear
3
Ethernet Port
4
Serial Port (RS485)
5
Power Supply Port
6
LED Sidebar
7
2.1.2

Power Supply 0130L00293

The power supply converts 24VAC to 24VDC. It is installed in the RTU's control box and uses the 24VAC from the factory
installed control transformer as the input power. The 24VDC output is used to power the room terminal. The Power
Supply output is factory set to 24VDC.
• Output Voltage: 5-24VDC (24VDC Default Setting)
• Output Current: 350mA (Max)
• Input Voltage: 24-28VAC
• Input Power Consumption: 16.7VA (Max)
• Physical Dimensions (inches) & Onboard Components:

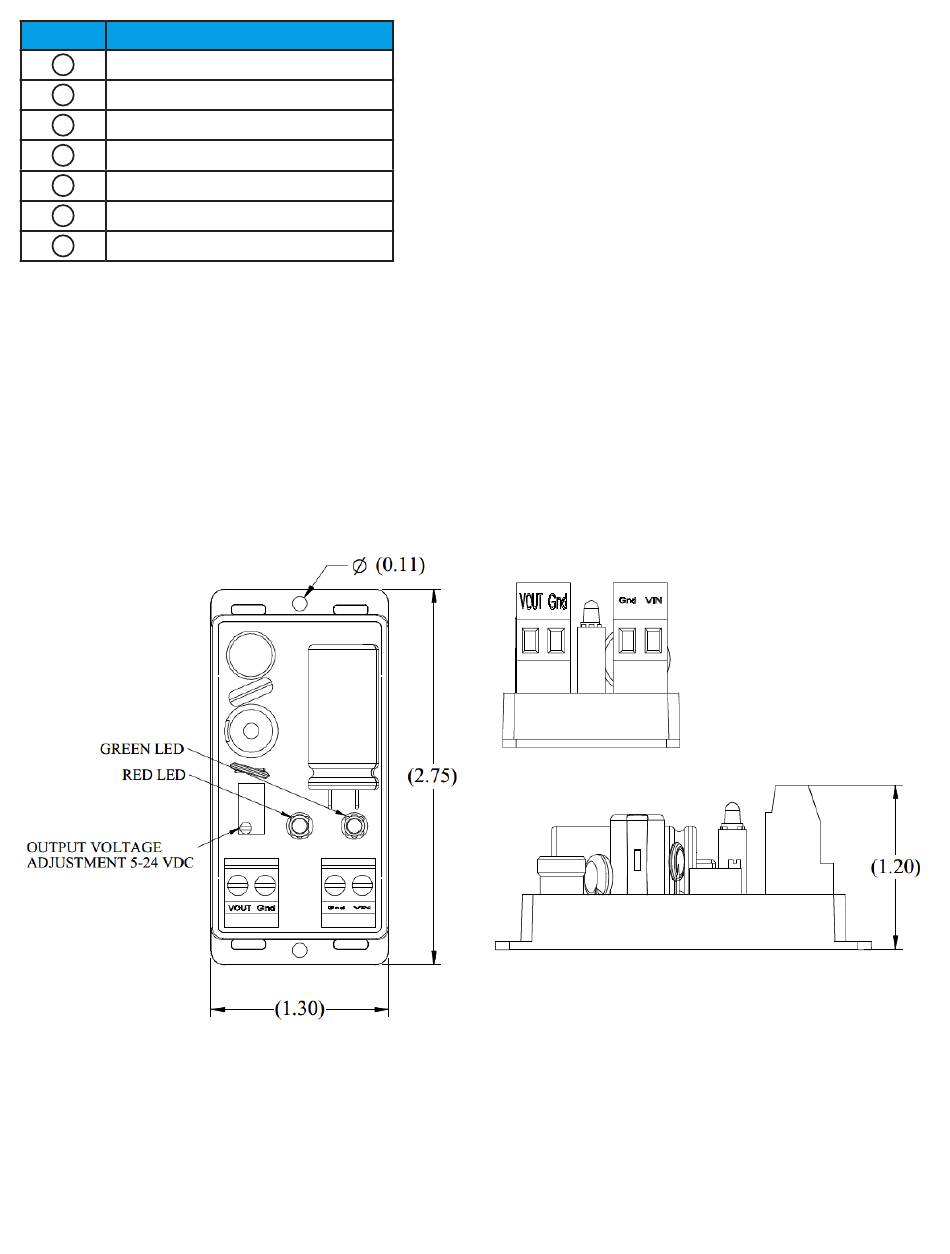

Figure 3 - Power Supply Dimensions
