Item # Item
1
Space Temperature
2
Space Humidity
3
Outdoor Temperature & Outdoor Humidity
4
RTU Status
5
Unit Number
6
Date/Time
7
Page Navigation
8
Supply Temperature
*NOTE: Values from Items 1 and 2 are sent from the room terminal and are normalized by the iLINQ controller (i.e., Offsets, etc.).
The outdoor temperature and outdoor humidity are displayed intermittently in a shared location on the page.
The outdoor humidity is only displayed if the iLINQ controller is reading a valid value, otherwise, only the outdoor
temperature is displayed. Similar to the home page, an option to display the space CO2 and iLINQ summary page link is
available on the display settings page.
5.3.2

Mode of Operation

The current operating status of the iLINQ controller is displayed in the left pane. As the controller cycles through different
modes and stages of operation, the information in the pane is updated. Icons that represent each mode of operation are
displayed in Figure 17. In addition, the current setpoint is displayed if applicable to the mode of operation.
5.3.3

Detail Page Occupancy Indication

The occupancy indication is conveyed to the user in the same manner as described in the Home Page Occupancy
Indication section.
5.4

Space Temperature Setpoint Adjust Page

The space temperature setpoint adjust page allows the user to add/subtract an adjustment value to the active cooling
and active heating setpoints.
5.4.1

Page Access

The space temperature setpoint adjust page can be accessed by pressing and holding the space temperature value on
the home page or detail page for 3 seconds. An option to password protect access to setpoint adjustment is available on
the display settings page. If enabled, the user is prompted to enter the user adjust password.
Description
Space temperature from iLINQ controller
Space humidity from iLINQ controller
Outdoor temperature and outdoor humidity (if installed) from
iLINQ controller
Current operating mode of the iLINQ controller with target
temperature (if applicable to the mode)
Unit Number of the iLINQ controller
Date/Time from iLINQ controller
Shows active page and provides navigation to other pages
Supply temperature from ILINQ controller

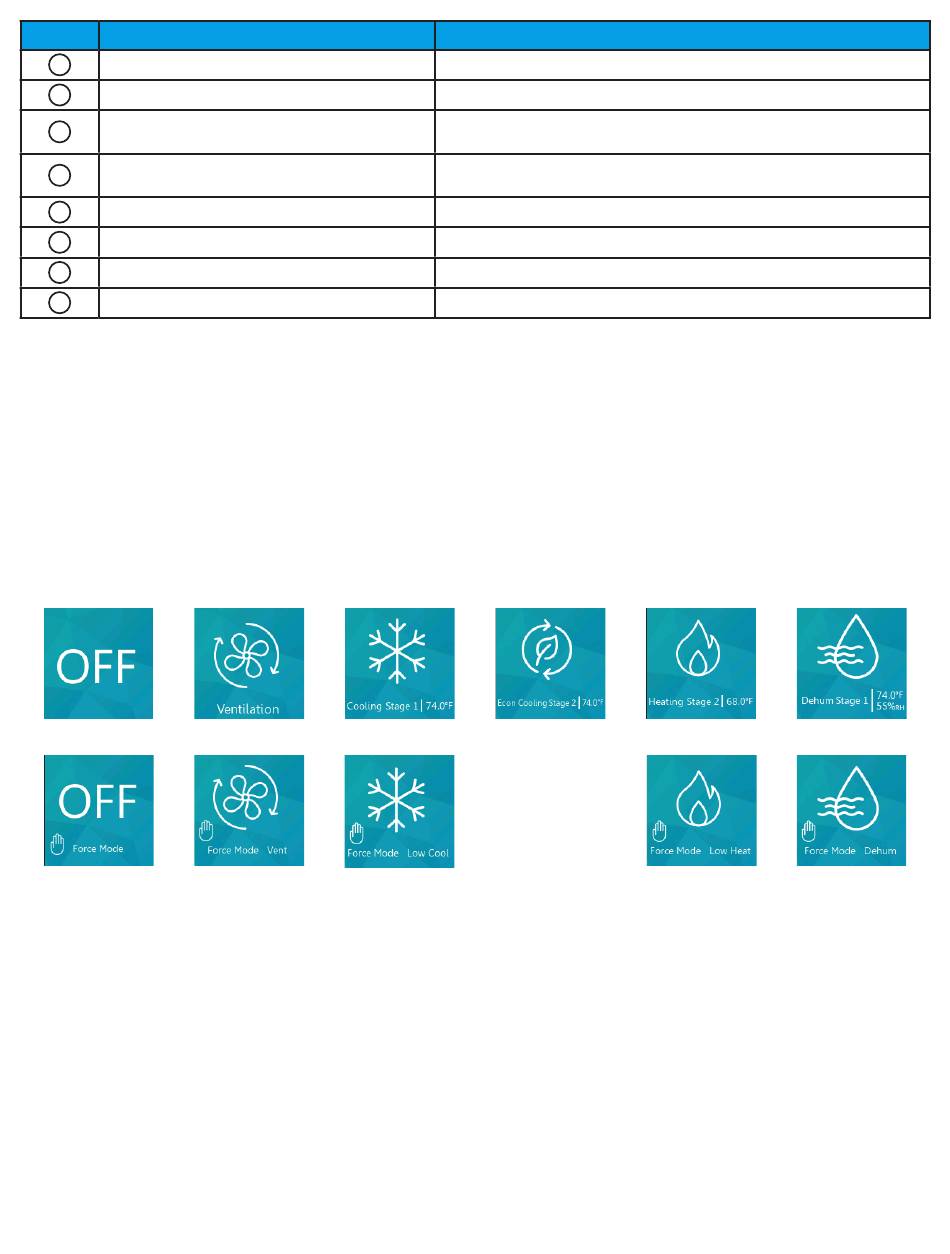

Figure 17 - Mode of Operation Icons
