Daikin iLINQ Room Terminal Installation & User Manual page 30

④
Item # Item
① Space Temperature
② Space Humidity
③ Outdoor Conditions
④ RTU Status
⑤ CO2
⑥ Date/Time
⑦ Supply Temperature
⑧ Alarm
⑨ Home Page
⑩ Page Navigation
⑪ Page Navigation
⑫ Unit Number
*Note: Values from Items 1 and 2 are from the iLINQ space sensors.
⑫
⑤
①
②
⑦
⑧
⑧
⑨
⑩
⑪

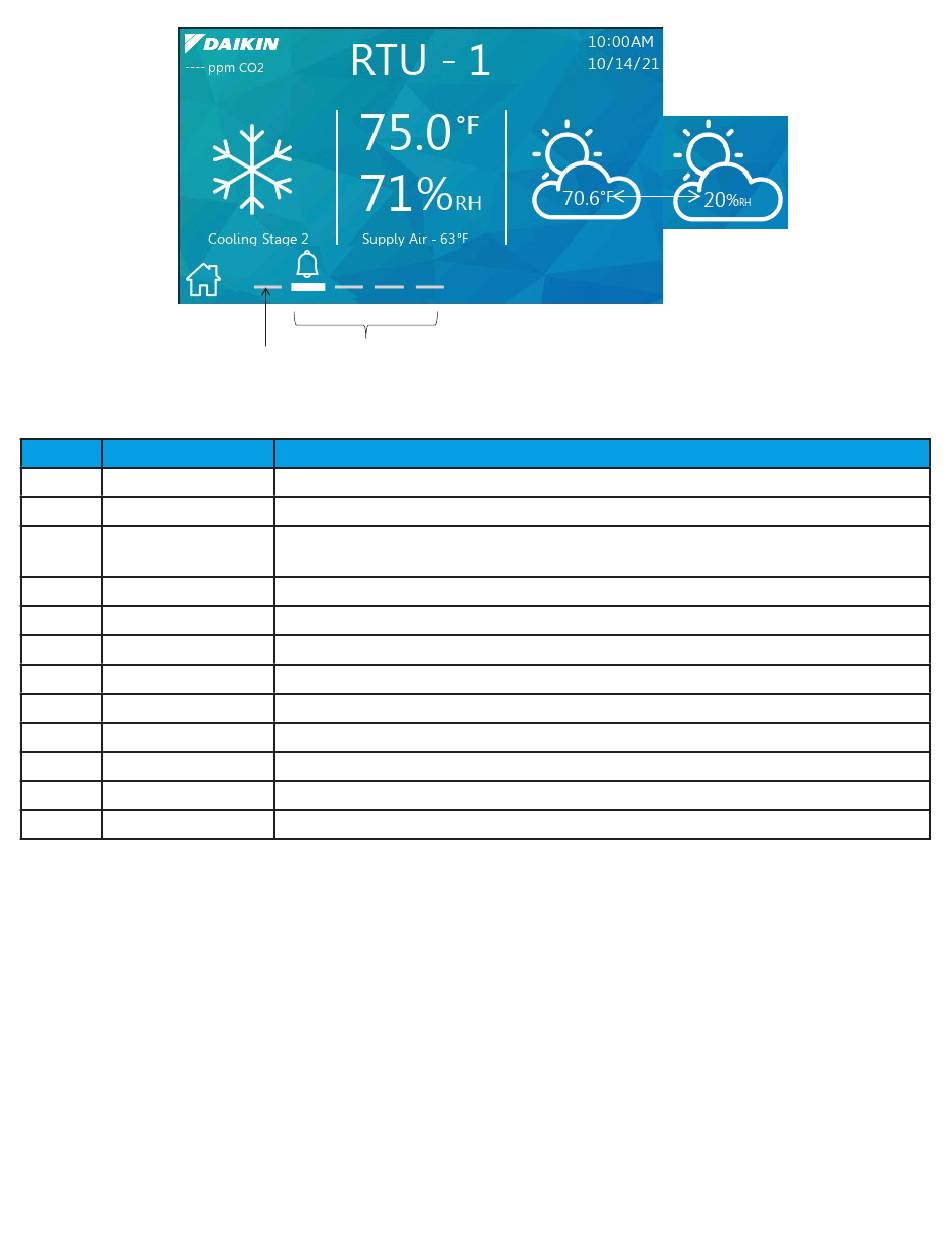

Figure 32 - iLINQ Network Summary Pages
Description
Value of the space temperature from remote iLINQ controller
Value of the space humidity from remote iLINQ controller
Value from outdoor temperature and outdoor humidity sensors from remote iLINQ
controller
Current operating mode of remote iLINQ controller
Value of space CO2 from remote iLINQ controller
Date/Time from the local controller
value of the supply temperature sensor from the remote iLINQ controller
Unit alarm indicator; flashes when an alarm is active for the remote iLINQ controller
Link to home page
Navigation tabs for remote iLINQ controllers
Navigation tab for local iLINQ controller
Unit number of remote iLINQ controller
