General UI instructions
The following section contains common UI features and how to interact with them.
UI Feature
Feature Appearance
Back Button
Keypad
Toggle Switch
Units
Drop Down Menu

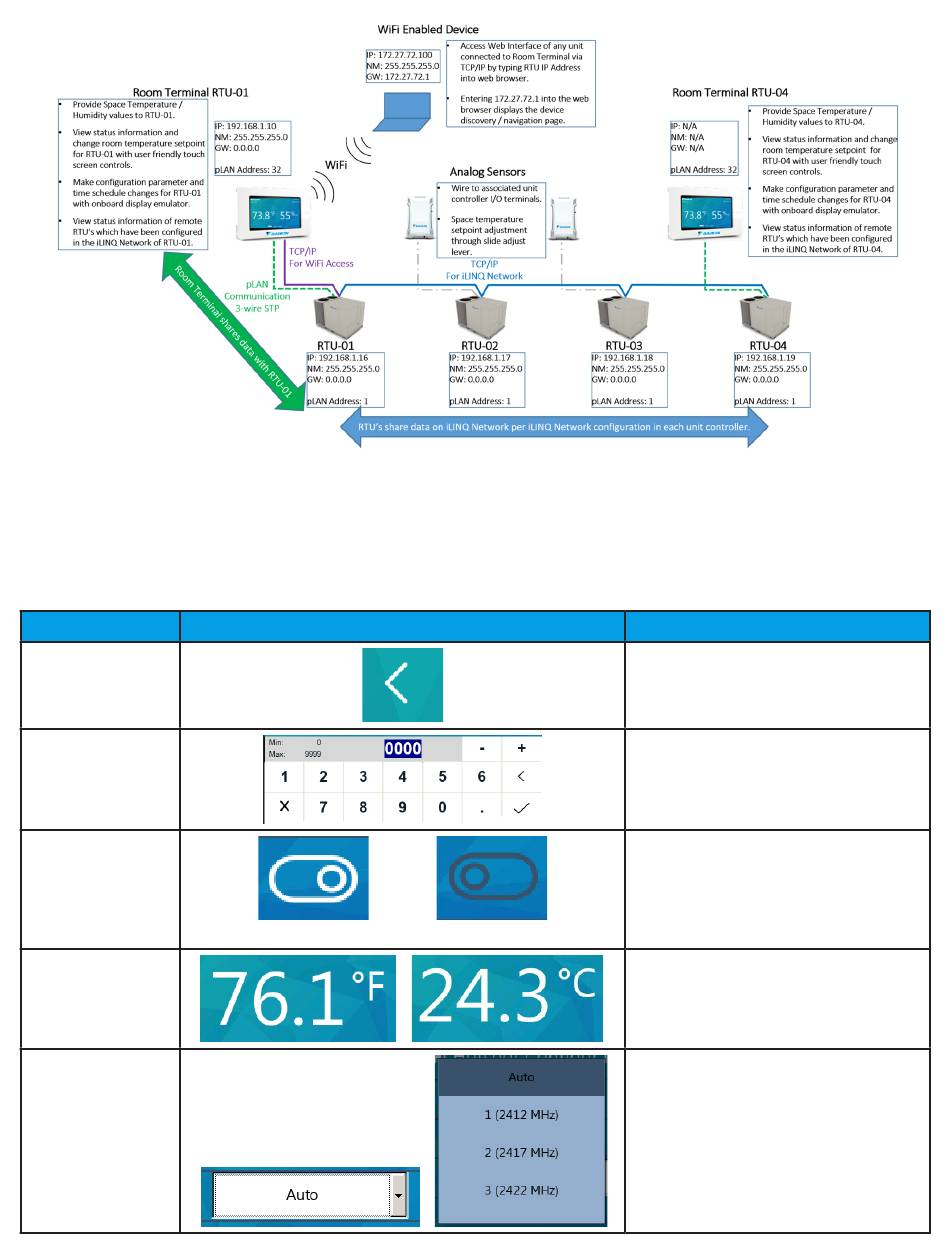

Figure 39 - Device Discovery
Enabled
Description
Tap to return to previous page
Tap to enter a string of characters, tap
check mark to apply
Tap to enable/disable settings
Disabled
Room terminal unit of measure is
determined by the value of the
onboard HMI unit of measure
Tap to view available values, tap a new
value to apply
