1.4
Software Requirements
The iLINQ Room Terminal is only compatible with iLINQ Controllers with software revision 1.3 or greater. If the iLINQ
Controller does not meet the software revision requirement, visit Daikin City (daikincity.com) for software upgrade files
and review the iLINQ DDC User Guide for instructions on the upgrade procedure. If Daikin City login credentials are
needed, contact the distributor for assistance.
2
Room Terminal Hardware
This section contains wiring details for the room terminal, power supply, and how each component connects to the
RTU and iLINQ controller. For specific unit wiring details not pertaining to the room terminal accessory, the unit wiring
diagram must be referenced.
2.1
Components and Specifications
The iLINQ Room Terminal application is designed specifically to function with the hardware described in this section.
2.1.1
Room Terminal 0130L00292
The room terminal has onboard space temperature and space humidity sensors, a touchscreen LCD, and LED sidebar.
The room terminal serves as the iLINQ controller's source for space temperature and space humidity while providing an
interactive user interface.
• Supply Input Voltage: 24 VDC (+/- 10%)
• Power Absorption: 7W (Max)
• Installation: Wall mounted, flush or surface
• LCD Type: LCD TFT
• Resolution: 480X272
• Active Display Area: 4.3" Diagonal
• Temperature/Humidity Probe: 32-122 deg F sensing range (+/- 1.8 deg F)
• Wi-Fi: IEEE 802.11 b/g/n
• Serial Port: RS485 max 115.2 kB/s
• Ethernet Port: Auto-MDIX 10/100 Mbit

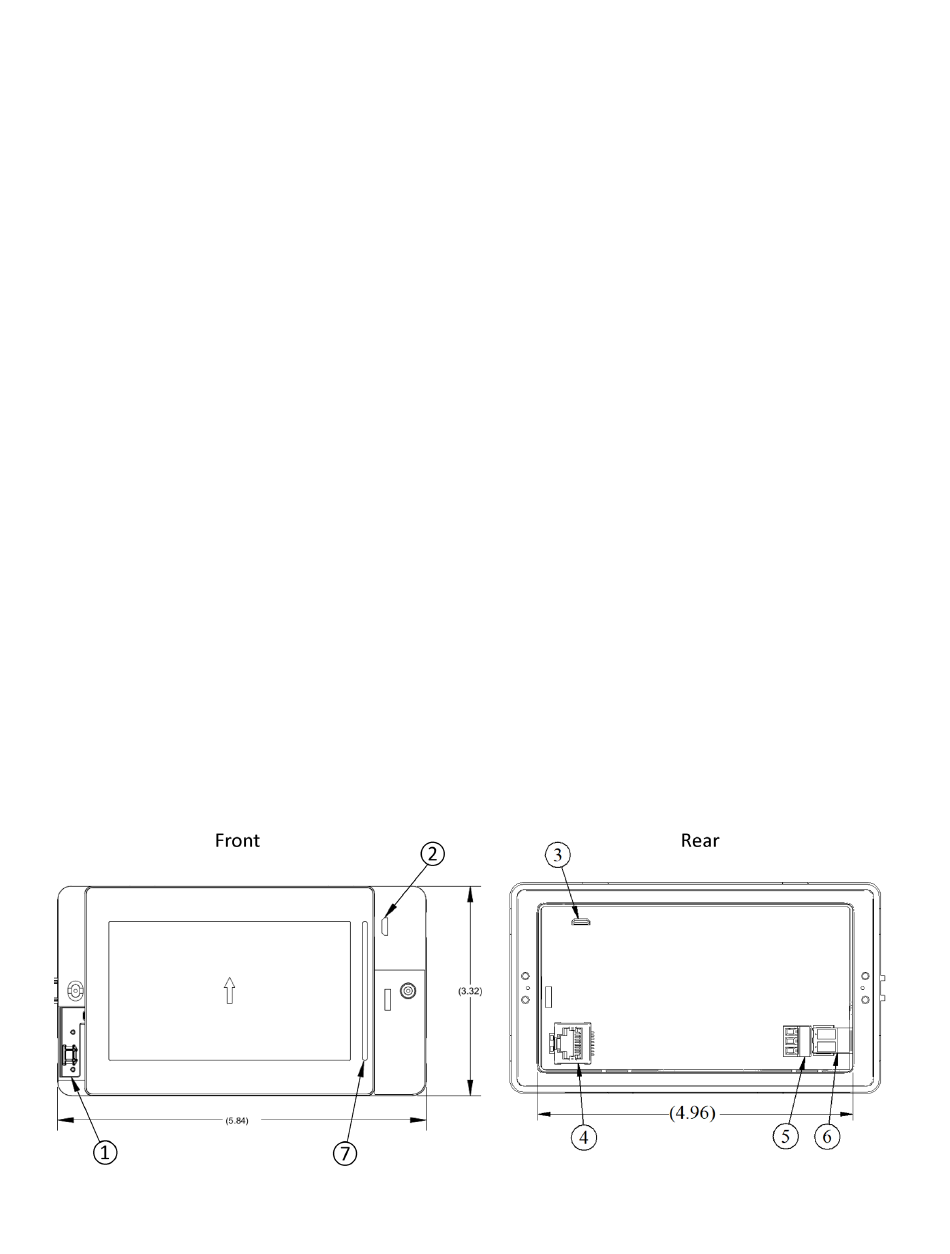

• Physical Dimensions (inches) & Onboard Components:
20-80 % rh sensing range (+/- 5% rh)
Figure 2 - Room Terminal Operations
