Home Page

The home page is the first page loaded when the room terminal is powered on and is the focal point of the user interface.
5.2.1

Layout

The layout of the home screen can be customized by the user via the display settings page. At a minimum, the home
screen displays the current space temperature. Reference Figure 13 for screenshots of the factory default, show all, and
hide all layouts of the home page. With the exception of the space temperature and the Daikin logo, the visibility of all
other page attributes can be toggled individually. As a result, many different home page layouts are possible.
Factory Default
④
①
⑥
Item # Item
1
Space Temperature
2
Space Humidity
3
Date/Time
4
Unit Number
5
Space CO2
6
Page Navigation Tabs
7
iLINQ Summary Pages
*NOTE: Values from Items 1 and 2 are sent from the room terminal and are normalized by the iLINQ controller (i.e., Offsets, etc.).
5.2.2

Occupancy Indication

The occupancy status of the iLINQ controller is conveyed by the color of the space temperature and space humidity
values. The values will darken in appearance if the iLINQ controller schedule mode is unoccupied, holiday unoccupied,
or force unoccupied. The values are white when the iLINQ controller schedule mode is occupied, holiday occupied, force
occupied, or push button override.
Unoccupied State
③ ④
⑤
②
①
⑥

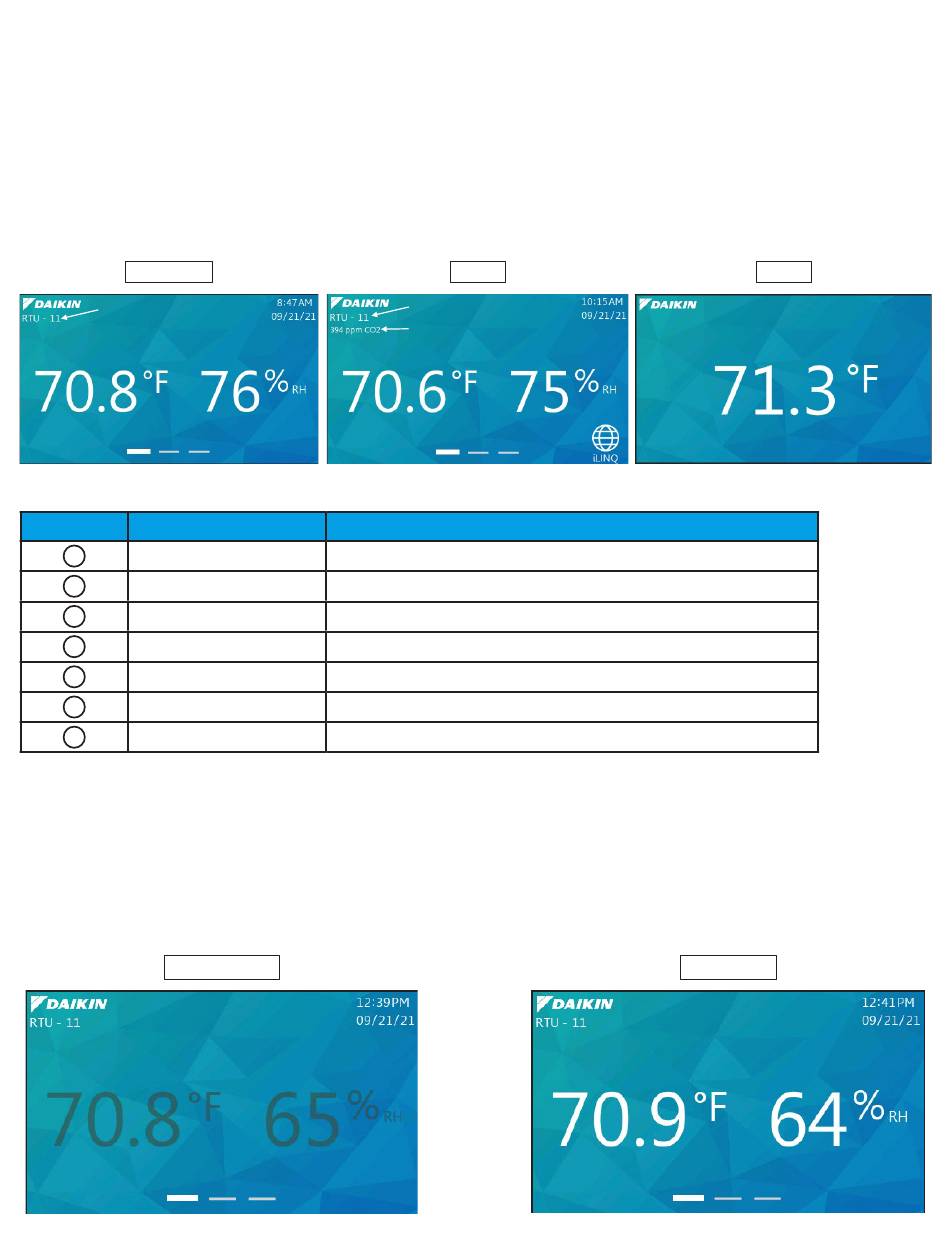

Figure 13 - Home Page Layouts
Description
Space temperature from iLINQ controller
Space humidity from iLINQ controller
Date/Time from iLINQ controller
Unit number of iLINQ controller
CO2 value from iLINQ controller
Shows active page and provides navigation to other pages
Link to iLINQ summary page(s)
Figure 14 - Unoccupied vs Occupied RTU State
Show All
③
②
⑦
Hide All
①
② ⑤
⑤
Occupied State
