Wi-Fi Hotspot Guide

The room terminal's Wi-Fi hotspot feature generates a local area wireless network that can be used to access the web
interface of each connected iLINQ controller. A web interface guide can be found in the iLINQ DDC User Manual.
7.1

Wi-Fi Local Area Network (WLAN) Architecture

To successfully configure and access the Wi-Fi hotspot, the room terminal and all controllers must be on the same
subnet and assigned unique IP addresses. Also, it is required that each iLINQ controller is assigned a unique unit number.
The unit number can be assigned by pressing the enter key twice on the homescreen of each controllers onboard LCD.
The Wi-Fi hotspot provides a DHCP service that assigns IP Addresses to it's clients in the range of 172.27.72.100 to
172.27.72.199. Refer to Figure 33 for an example of proper network settings. The IP settings are for example only and are
subject to change to meet installation requirements.
7.2

Wi-FI Hotspot Settings

To access the Wi-Fi hotspot page, tap the Wi-Fi hotspot icon on the service menu page. The Wi-Fi hotspot settings are
organized in a scrollable table. Press and drag in the table area to scroll through the options.
To enable or disable an existing Wi-Fi hotspot configuration, tap the Wi-Fi enable toggle switch. If setting up the Wi-Fi
hotspot for the first time, or making a configuration change, tap the save icon to apply the new Wi-Fi hotspot settings.
The Wi-Fi hotspot retains all configuration settings when disabled. For security purposes, the current password cannot
be viewed after saving.

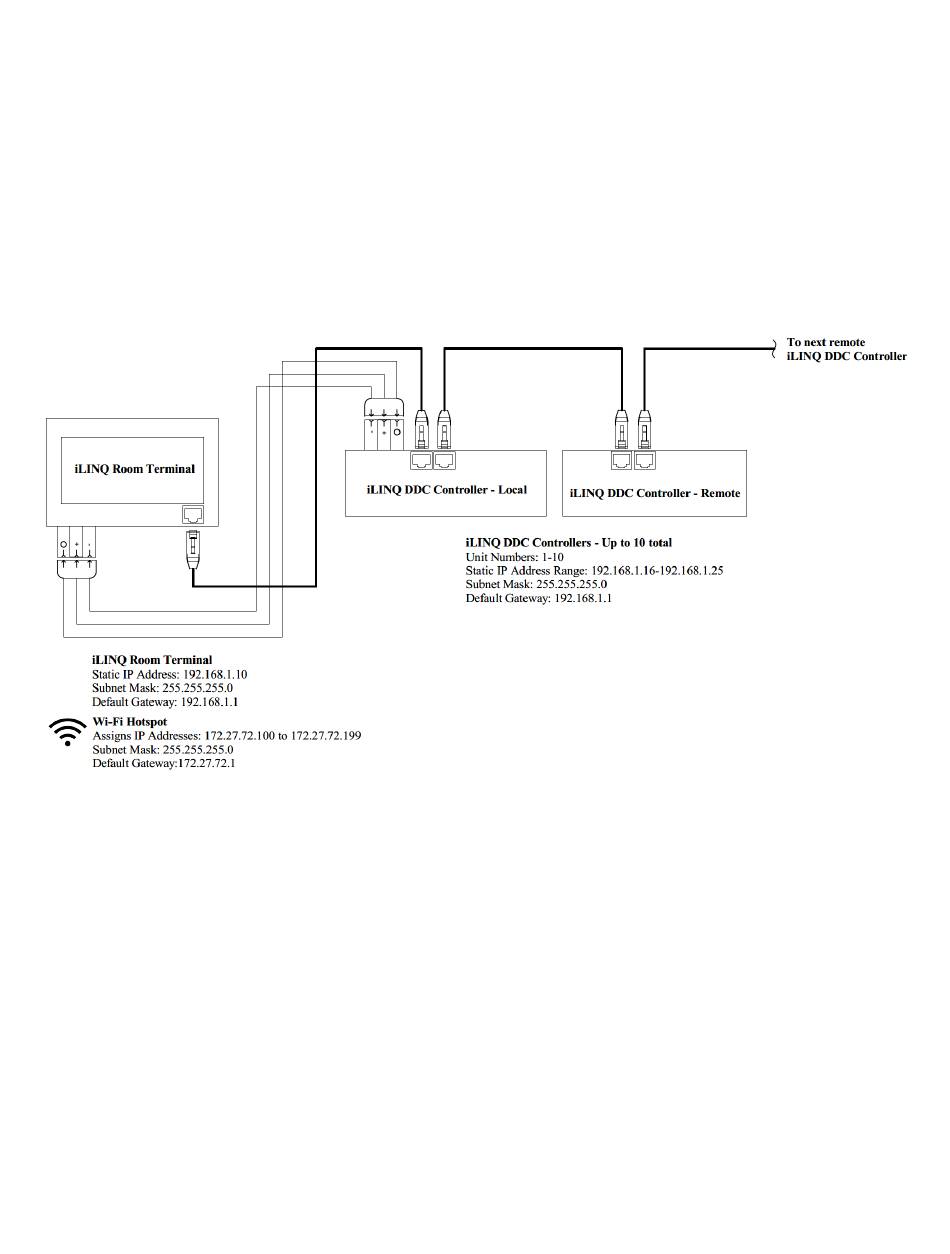

Figure 33 - iLINQ Room Terminal Wi-Fi Hotspot Network Architecture
