Introduction
1.1
Room Terminal Components

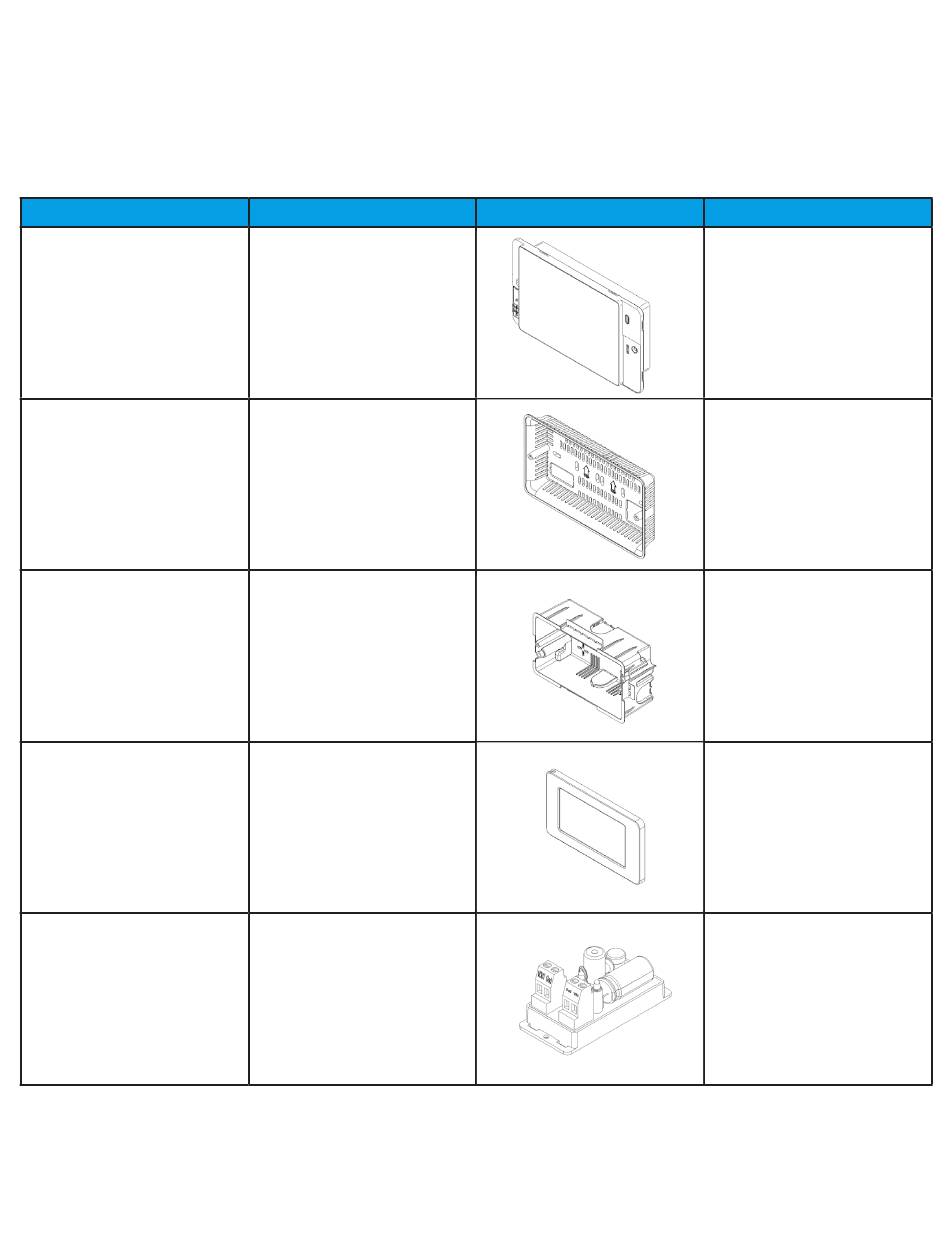

The following table lists the main components included with the iLINQ room terminal. Other minor components such as
wire ties, screws, wires, and supporting literature are included but not shown below.
Part Number
0130L00292
0163L00300
0163L00299
0163L00301
0130L00293
Name
Room Terminal
Surface Mount
Flush Mount
Frame
Power Supply
Description
Onboard temperature/
humidity sensor,
touchscreen LCD, and Wi-Fi
hotspot
Mounting bracket for
installing the room terminal
on the surface of a wall
Mounting bracket for
installing the room terminal
flush with the surface of the
wall
Room terminal frame,
vented to allow airflow for
the onboard temperature/
humidity sensor
24 VAC to 24 VDC power
supply
