5
Room Terminal User Interface
This section contains a guide to the touchscreen user interface of the iLINQ room terminal. The following sections
contain references to the iLINQ controller and parameters. If needed, refer to the iLINQ User Manual for additional
detail.
5.1
User Interface Navigation
The majority of the user interface is comprised of the following pages:
• Home Page
• Detail Page
• Live Trend Page
The user can load each page by swiping the screen or by pressing the page navigation tabs. The active page is indicated
by the highlighted navigation tab. Reference Figure 12 for navigation instructions.

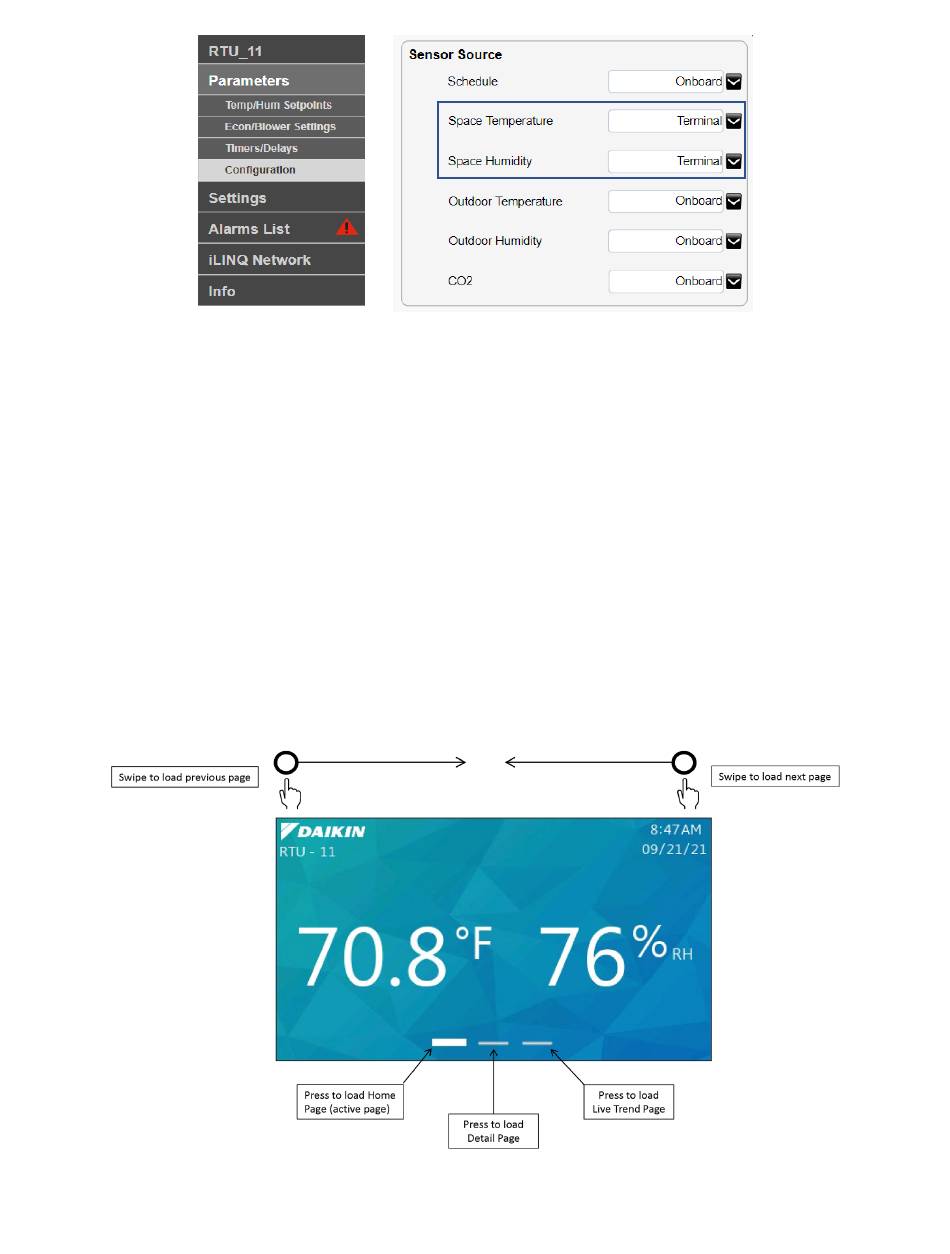

Figure 11 - iLINQ Controller Web Interface Configuration
Figure 12 - UI Navigation
13
