Occupancy Override; Detail Page; Overview - Daikin iLINQ Room Terminal Installation & User Manual

5.2.3

Occupancy Override

The iLINQ controller occupancy can be overridden from the home page if the following conditions are true:
• The current iLINQ controller schedule mode is unoccupied, force unoccupied, or holiday unoccupied.
• Push button override duration is set to a value greater than 0.
If the conditions above are true, the override icon is displayed on the home page. To override the occupancy, press and
hold the icon. An option to password protect the occupancy override is available on the display settings page. If enabled,
the user adjust password must be entered to override unit occupancy. Review the iLINQ DDC User Manual for details
regarding occupancy override.
5.3

Detail Page

The detail page provides an expanded view of the iLINQ controller's current operating mode and outdoor conditions.
5.3.1

Overview

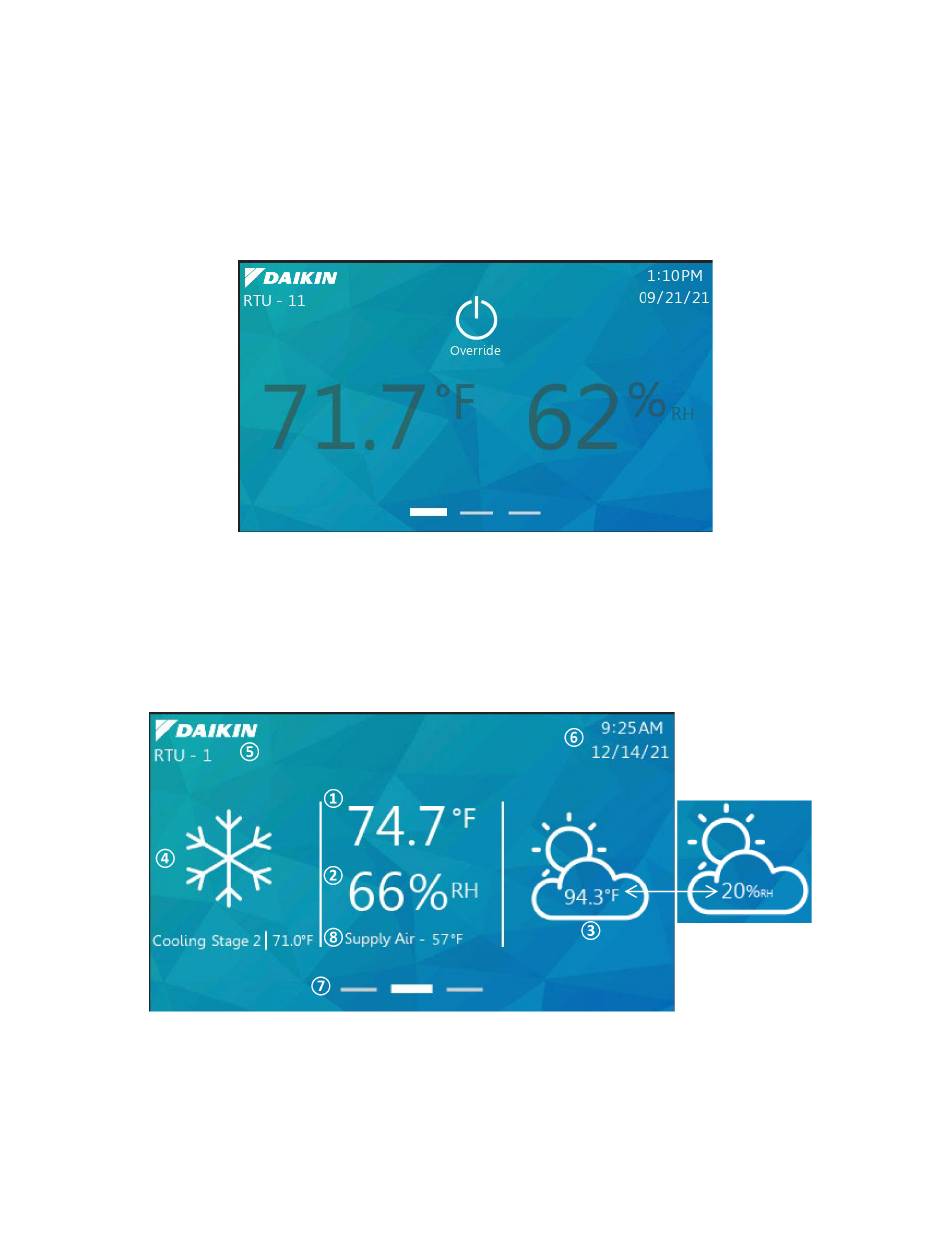

Figure 15 - Occupancy Override Icon
Figure 16 - Detail Page
15
