Overview

Item # Item
Space Temperature
1
Target Cooling Temperature
2
Target Heating Temperature
3
Maximum Setpoint Adjust Limit
4
Space Temperature
5
*NOTE: Value from Item 1 is sent from the room terminal and is normalized by the iLINQ controller (i.e., Offsets, etc.).
When the up/down arrows are pressed the space temperature setpoint adjust value is increased/decreased. Pressing the
up button will result in warmer space conditions, while pressing the down button, will result in cooler space conditions.
The space temperature setpoint adjust value is incremented by 0.5 with each press. The maximum setpoint adjust value
is the upper and lower limit of the space temperature setpoint adjust. The user cannot change the space temperature
setpoint adjust value beyond this value. If the maximum setpoint adjust value is set to 0, the space temperature setpoint
adjust value is set to 0 and cannot be changed. To toggle the visibility of the space temperature setpoint adjust and
maximum setpoint adjust values, press the information icon in the bottom.
Press and hold

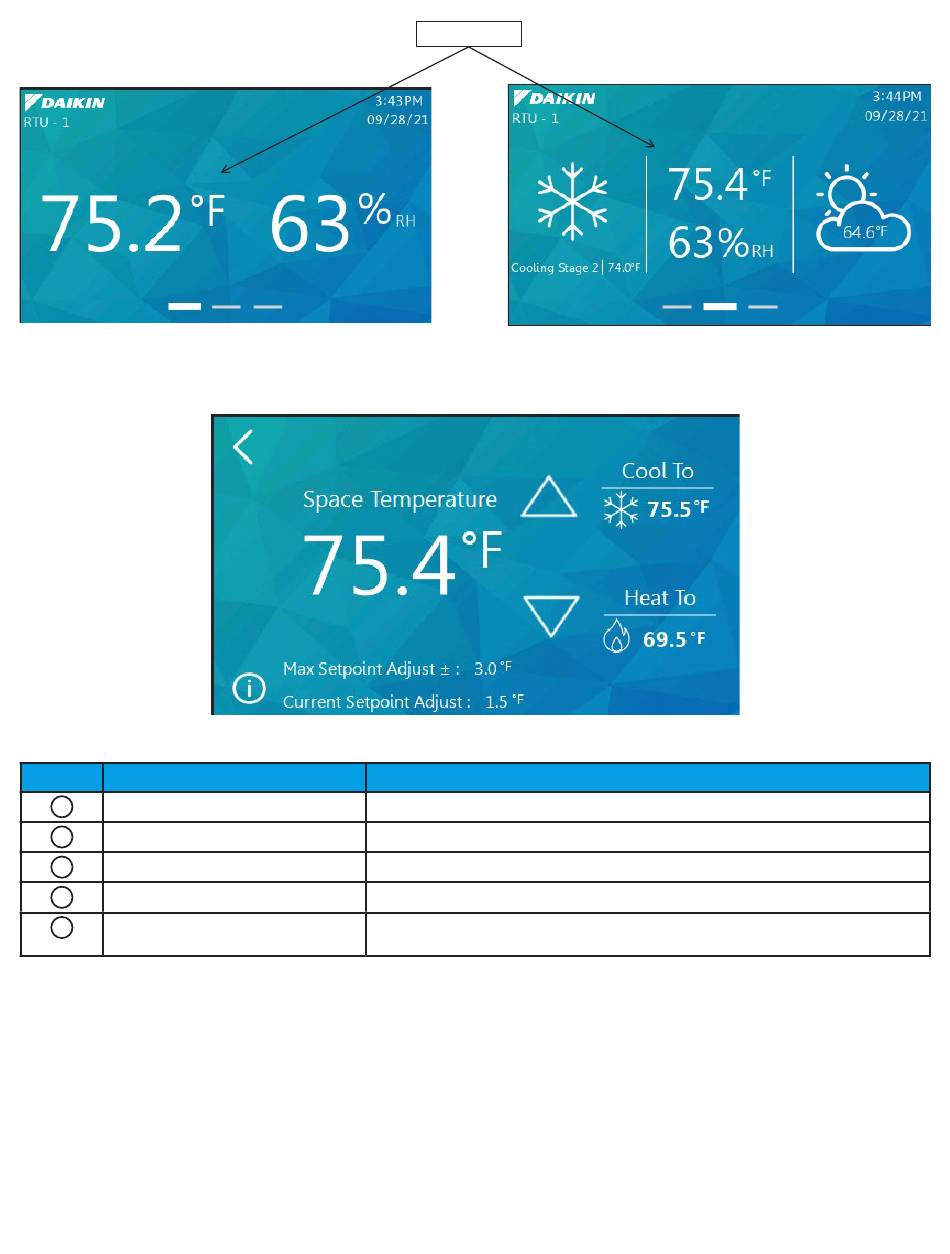

Figure 18 - Space Temperature Setpoint Adjust Page Access
①
Figure 19 - Space Temperature Setpoint Adjust Page
Description
Space Temperature from the iLINQ controller
Active cooling setpoint from the iLINQ controller
Active heating setpoint from the iLINQ controller
Upper and lower limit for space temperature setpoint adjust value
Adjustable value that is added/subtracted to the active cooling and active
heating setpoints
②
③
④
⑤
