To change the default graph duration of 1 minute, tap the graph duration icon and select a new duration from the
scrollable list. Live trending starts when the live trend page is loaded. For this reason, if the value of the selected graph
duration is greater than the time that the live trend page has been loaded, some of the line plots may appear to be cut
off or missing because no data is stored for a portion of the newly selected plot duration.
5.5.3
Legend
The legend displays the name, current value, and line plot color of the variables plotted in the graphing window. Tap the
variable to show/hide its line plot in the graphing window. To toggle the visibility of the legend, tap the show/hide legend
icon.
5.6
Historical Trend Page
The historical trend page is intended for long term monitoring of the iLINQ controller's operation and space conditions.
The iLINQ room terminal stores 44640 samples at 60 second intervals (31 days) for the following variables.
• Space Temperature
• Space Humidity
• Cooling Setpoint
• Heating Setpoint
• Supply Temperature
5.6.1
Page Access

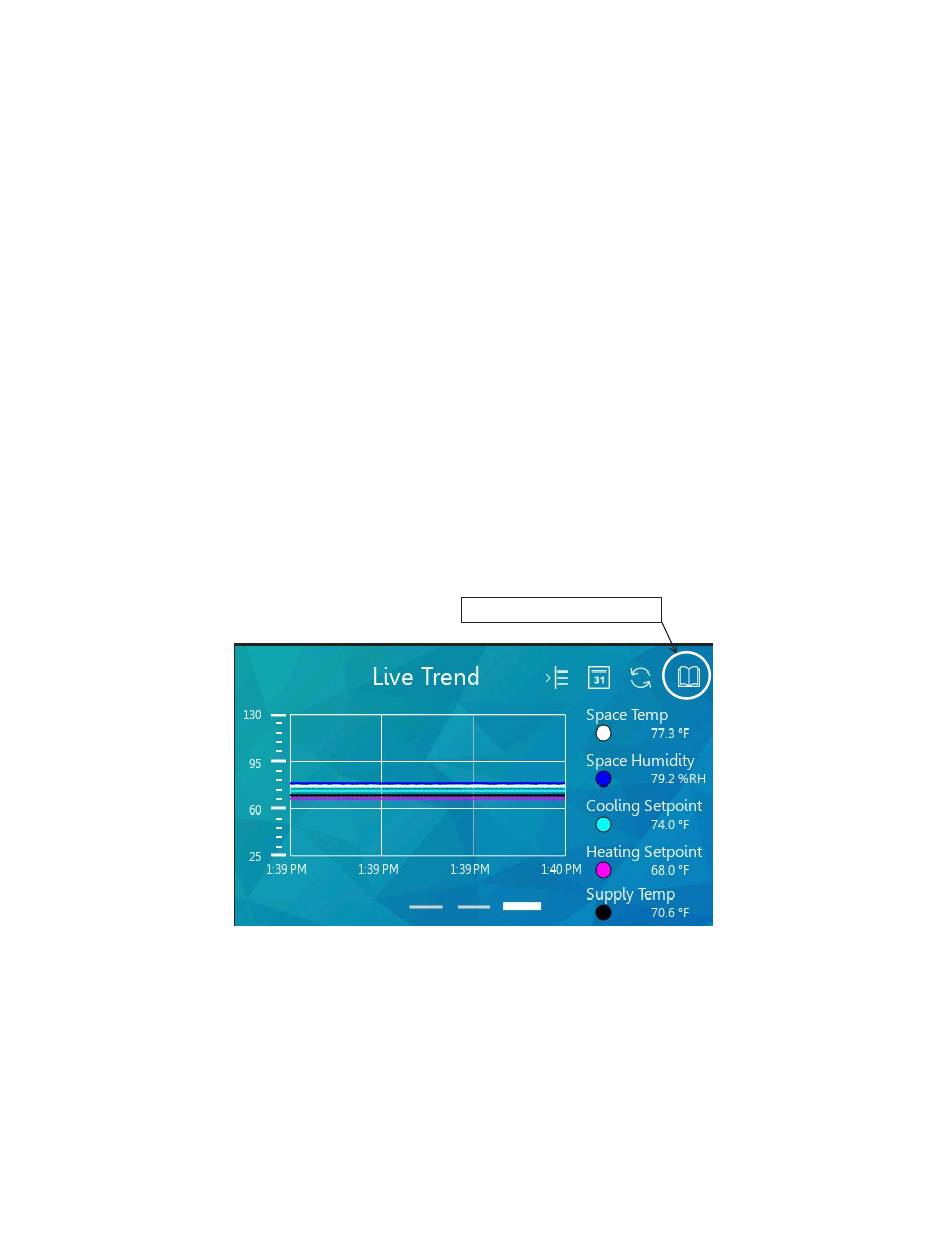

The historical trend page is accessed from the live trend page as shown in Figure 21.
Tap to access Historical Trend Page
Figure 21 - Historical Trend Page Access
19
